Quick Details
-
Voltage:
-
380v/50hz/3ph customization
-
Dimension(L*W*H):
-
320*180*145cm
-
Application:
-
wood sawmill
-
Weight (KG):
-
2100 KG
-
Power (kW):
-
22*2kw
-
Product name:
-
Circular saw machine wood cutting machine
-
feeding length:
-
40-400cm
-
feeding diameter:
-
6-20cm
-
main motor:
-
22kw*2
-
main shaft diameter:
-
50mm
-
shaft speed:
-
3300rpm
-
feed speed:
-
0-10m/min(adjustable)
-
saw blade diameter:
-
305mm
-
dimension:
-
320*180*145cm
-
weight:
-
2100kgs
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Liberal
-
Usage:
-
board piece cutting
-
Voltage:
-
380v/50hz/3ph customization
-
Dimension(L*W*H):
-
320*180*145cm
-
Application:
-
wood sawmill
-
Weight (KG):
-
2100 KG
-
Power (kW):
-
22*2kw
-
Product name:
-
Circular saw machine wood cutting machine
-
feeding length:
-
40-400cm
-
feeding diameter:
-
6-20cm
-
main motor:
-
22kw*2
-
main shaft diameter:
-
50mm
-
shaft speed:
-
3300rpm
-
feed speed:
-
0-10m/min(adjustable)
-
saw blade diameter:
-
305mm
-
dimension:
-
320*180*145cm
-
weight:
-
2100kgs

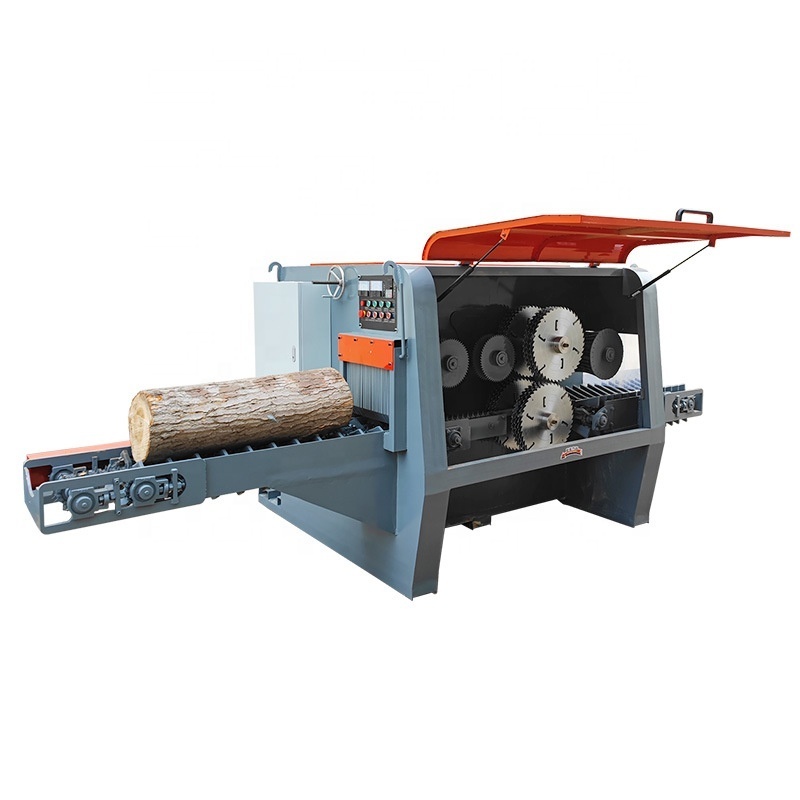

Circular saw machine wood cutting machine wood log lumber band saw cutting machine
Technical data of Circular saw machine wood cutting machine
| Model | Feed Diameter | Blade saw size | Main motor | weight |
| FT-20 | 8-20cm | 305*2.8*50mm | 22kw*2 | 2100kg |
| FT-25 | 10-25cm | 355*3.0*60mm | 22+30kw | 2500kg |
| FT-30 | 13-30cm | 405*3.4*60mm | 30+37kw | 2800kg |
| FT-35 | 16-35cm | 455*3.8*70mm | 37kw*2 | 3000kg |
| FT-40 | 25-40cm | 550*4.8*80mm | 45kw*2 | 3400kg |
Square wood Circular saw machine wood cutting machine
| Model | 6cm | 8cm | 10cm | 12cm | 15cm |
| feed length | 30-400cm | ||||
| feed height | 2-6cm | 2-8cm | 2-10cm | 2-12cm | 2-15cm |
| main motor | 15+18.5kw | 18.5kw*2 | 18.5kw*2 | 18.5kw+22kw | 22kw*2 |
| feed motor | 1.1kw | 1.1kw | 1.1kw | 1.1kw | 1.1kw |
| main shaft Dia. | 50mm | ||||
| feed speed | 0-10m/min adjustable | ||||
| blade size | 160mm | 180mm | 205mm | 230mm | 255mm |
| weight | 1300kg | 1400kg | 1400kg | 1500kg | 1600kg |
| Dimension | 100*200*130cm | 100*200*150cm | 100*200*155cm | 100*200*160cm | 100*200*167cm |
1. Packing: PP film wrapped around the machine and carefully packed in wooden case to focus on protecting damageable parts.
2. Shipping: From port of Shenzhen, Shanghai, Qingdao, Guangzhou,etc. We also accept land, air, sea transport and international multimodal transport.
3. Clearance: Our long history makes us the one of the first and most knowledgeable providers of the equipment, our main customers hail from; Canada, the United States, Brazil, Argentina, Japan, Philippines, Australia, Russia, Thailand, the UAE, Poland, Spain, Germany, India, etc.
Are you confused about the following questions?
Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A:We are alibaba legitimate certification company (VIP) and we have a lot of money as credit
guarantee. We support payment terms: Trade insurance,L/C.Escrow, to ensure your safety.
1.When will you ship the machine?
normally 10-15 working days .
2.How can I buy this machine?
first talk all machines details with our sales person, then talked abt the price, after confirming the prices.
you can choose the payment terms Trade assurance/TT/Escrow/Western Unionetc.
then you arrange deposit, after gettting the deposit, we produce the machine.
last, packing and shipping the machine for you.
