Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
8000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8214x2496x3386
-
Cargo Tank Dimension:
-
8214x2496x3386
-
product name:
-
30t dump truck dimension
-
Transmission:
-
HW19710
-
Tire:
-
12.00R20
-
Cab:
-
HW76
-
Engine:
-
WD615.47
-
Color:
-
Requirement
-
Brand:
-
SIONTRUK
-
Loading Cpacity:
-
40ton
-
Model Number:
-
ZZ3257N3647A
Quick Details
-
Condition:
-
New
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
8000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8214x2496x3386
-
Cargo Tank Dimension:
-
8214x2496x3386
-
product name:
-
30t dump truck dimension
-
Transmission:
-
HW19710
-
Tire:
-
12.00R20
-
Cab:
-
HW76
-
Engine:
-
WD615.47
-
Color:
-
Requirement
-
Brand:
-
SIONTRUK
-
Loading Cpacity:
-
40ton
-
Model Number:
-
ZZ3257N3647A

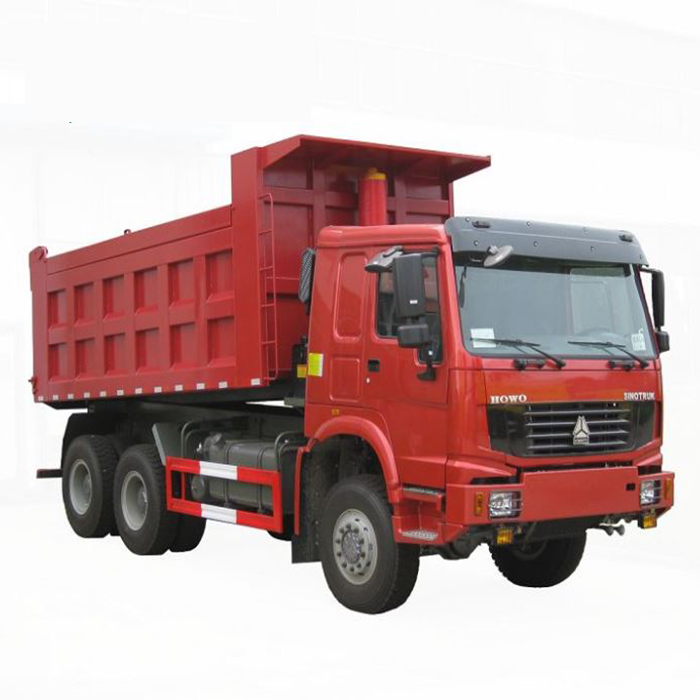

China Tow Truck 30 ton Lorry Truck Dimensions Dump Truck For Myanmar
| China Tow Truck 30 ton Lorry Truck Dimensions Dump Truck For Myanmar--Specification | |||||
|
Truck Model |
ZZ3257N3647A |
||||
|
Truck Brand |
SINOTRUK –HOWO |
||||
|
Dimension(Lx W xH)(unloaded)(mm) |
8214x2496x3386 |
||||
|
Cargo body size (L*W*H, mm(mm) |
5400x2300x1400 |
||||
|
Cargo body thickness(mm) |
bottom:8mm, side:6mm, |
||||
|
Lift type of Carriage |
Ventral lifting |
||||
|
Approaching angle/Departure angle
|
19/26 |
||||
|
Overhang(front/rear) (mm) |
1500/1739 |
||||
|
Wheel base (mm) |
3625+1350 |
||||
|
Max speed(km/h) |
75 |
||||
|
Curb weight(kg) |
12290 |
||||
|
Loading Weight(kg) |
30000 |
||||
|
Fuel tanker capacity (L) |
300L with locking fuel cap |
||||
|
Fuel consumption(L/100km) |
32 |
||||
|
Clutch |
Single-plate dry clutch Φ420mm |
||||
|
Engine Model (Steyr technology, made in China) |
Model |
WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling |
|||
|
Horse Power, max(kw/rpm) |
336HP,247/2200 |
||||
|
Emission Standard |
EUROII |
||||
|
Transmission |
Model |
HW 19710,10 forwards and 2 reverse |
|||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
|
Auxiliary brake |
Engine exhaust brake
|
||||
|
Steering system
|
Model |
ZF8118 hydraulic steering with power assistance |
|||
|
Front axle |
HF9 , Steering with double T-cross section beam Loading capacity:9000KG |
||||
|
Rear axle |
HC16, Casting axle housing, central double reduction with differential locks between axles and wheels |
||||
|
Color |
Optional |
||||
|
Tire |
12.00R20 11 pieces |
||||
|
Electrical system
|
Operating voltage |
24V,negative grounded |
|||
|
Starter |
24V,7.35KW |
||||
|
Alternator |
28V,1500W |
||||
|
Batteries |
2*12V.165Ah |
||||
|
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. |
|||||
China Tow Truck 30 ton Lorry Truck Dimensions Dump Truck For Myanmar-- Details
China Tow Truck 30 ton Lorry Truck Dimensions Dump Truck For Myanmar--Advantage
Spare Parts
All spare parts use the products of foreign and domestic famous producers, are purchased ,inspected
and used strictly accroding to the requirements of quality system docements ,and ensuregood
performance of whole vehicle.
Customize
According to clients' requirements, our engineers can customize different axles and loading weight.
Our semi trailer price is really good with high quality ensured.
Come to HAOYUE trailer, you can customized the trailers you like.
Repairs
Common repairs include brake jobs, wheel seals and adding additional equipment such as toolboxes to trailers.
We can offer customizations and repairs specific to your requirements as our access to parts is extensive.
Vehicle Master ’s parts technicians can find almost any part that you may require for your trailer.
We are dedicated to keeping your trailer running in top shape.
China Tow Truck 30 ton Lorry Truck Dimensions Dump Truck For Myanmar--Packaging
The 10 wheelers 40ton tipper vehicles will be shipped by Bulk Cargo or RoRo
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:How to transport the truck?
A:We mainly transport it by ro-ro ship ,by bulk ship,container or by frame.
Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery .
1) Traning of trailer operating and normal maintenance.
2 ) Regularly callback to know the vehicle's working status.
3)Supply the service of regular repair.
4)Solve the customer’s advisory.
5) CKD and SKD are available.
6) Faster, better and more professional.
7)The overseas engineers are always ready to deal with unexpected needs.
8)24 hours hotline.
