Quick Details
-
Name:
-
3D Printer element Cartridge Heater with 15'' lead wire
-
Sheath material:
-
Stainless Steel Ss304/316/321
-
Application:
-
3D Printer
-
Sample:
-
available
-
Model Number:
-
insertion heater
-
Max working temperature:
-
450C
-
color:
-
Stainless Steel
-
Material:
-
Stainless Steel
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V 24V 110V 220V
-
Name:
-
3D Printer element Cartridge Heater with 15'' lead wire
-
Sheath material:
-
Stainless Steel Ss304/316/321
-
Application:
-
3D Printer
-
Sample:
-
available
-
Model Number:
-
insertion heater
-
Max working temperature:
-
450C
-
color:
-
Stainless Steel
-
Material:
-
Stainless Steel

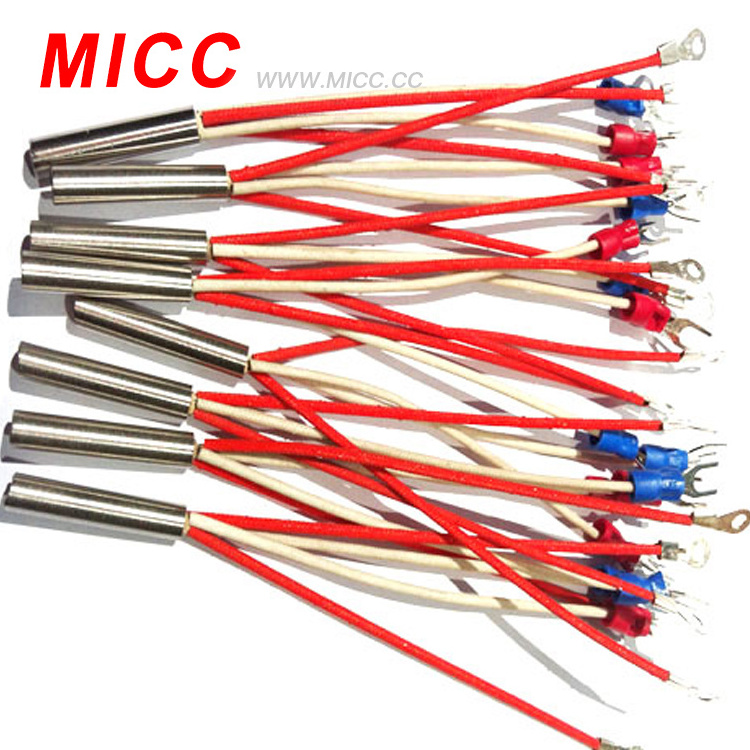

Factory Directly 3D Printer element Cartridge Heater with 15'' lead wire
Description Factory Directly 3D Printer element Cartridge Heater with 15'' lead wire
Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,
that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.
High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
Application Factory Directly 3D Printer element Cartridge Heater with 15'' lead wire
- Injection moulding - Internal heating of nozzles
- Hot runner systems - Heating of manifolds
- Packaging industry - Heating of cutting bars
- Packaging industry - Heating of hot stamps
- Laboratories - Heating of analytical equipment
- Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
- Telecommunications: Deicing, Enclosure Heater
- Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
- Food Service: Steamers, Dish Washers,
- Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
Technical data Factory Directly 3D Printer element Cartridge Heater with 15'' lead wire
| Industrial heater | Immersion cartridge water heater with thermocouple |
|
Resistance heating wire |
NiCr 80/20 wire |
| Sheath |
stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
|
Maximum temperature |
800 degree Celsius |
|
Wattage Tolerance |
+5%, -10% |
|
Resistance tolerance |
+10%, -5% |
|
Voltages available |
380V,240V, 220V,110V,36V,24V or 12V |
|
Length tolerance |
±1 mm |
|
Diameter tolerance |
-0.02mm |
|
Standard Cold Zone |
5-10mm |
|
Delivery time |
7-10 working days |
|
Insulation resistance (cold) |
≥ 500 MΩ |
|
Maximum leakage current (cold) |
≤ 0.5 mA |
|
Thermocouple Location |
type J |
|
type K
|
Factory Directly 3D Printer element Cartridge Heater with 15'' lead wire
3D Printer 12V/24V 40W Stainless Steel insertion heater
