125khz ID EM Card Reader & Writer ID Card Copy Machine/ ID Card Copier handheld rfid reader

125khz ID EM Card Reader & Writer ID Card Copy Machine/  ID Card Copier handheld rfid reader

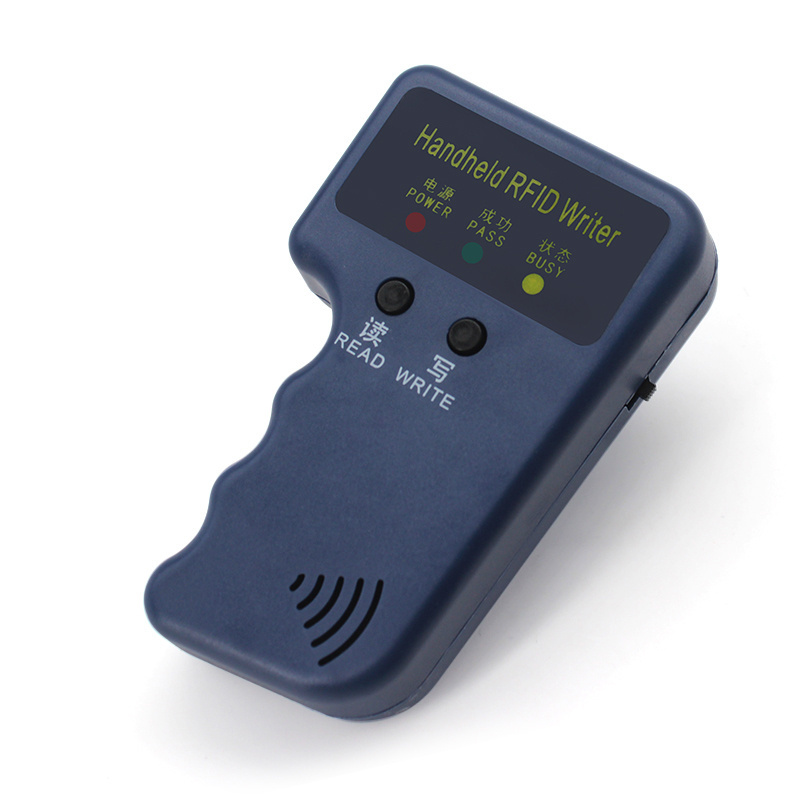

The Handheld Duplicator is a Card-tech of 125Khz RFID device.It can read the EM4100,EM4200,Tk4100 chip cards and can use the EM4305/T5577 card to copy their data . After copy, The device can read the EM4305/T5577 card, it can using for access control is very easy to operate.

Parameters

1. Frequency: 125Khz

2. Power: 2 batteris of No.7, can be copied 20000 times

3. Distance: ≤ 25mm (Keychain)

≤ 60mm (Card)

4. Size: 71mm× 117mm × 31mm

5. Indicator: Three indicator

6. Push button: Read button & Write button

7. Support Tag: 125Khz(EM4100,EM4200,TK4100 card or HID card

Supports writing T5577 card

User manual

1. Make sure the small No.7 battery connection effectively before use it

2. Installing the battery,switch On, Power Led should flash one second .

3. Placing a EM testing card in Reading Area , it can be copied .

4. Press Read Button, If Read oK Read Led should flash and Beep sounds.

5. Put a card should be written(such as a EM4305 or T5577 card ) , Press Write Button and keep press, about one second ,if hearing a beep means Copying succeed.

6. If want to write more card same ID ,repeat step 5

7. Switch Off for save Power.
