Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LEISON MOTOR
-
Model Number:
-
LS-N20AGB
-
Torque:
-
10-1500g.cm
-
Reduction Ratio:
-
1:10-1:1000
-
Motor Diameter:
-
12mm
-
Gearbox Diameter:
-
12mm
-
Motor Length:
-
15.1mm
-
Gearbox Length:
-
9-12mm
-
Shaft Diameter:
-
3mm
-
Shaft type:
-
D-cut, round or keyway
Quick Details
-
Speed(RPM):
-
10-3000RPM
-
Continuous Current(A):
-
Customized
-
Efficiency:
-
IE 1
-
Place of Origin:
-
China
-
Brand Name:
-
LEISON MOTOR
-
Model Number:
-
LS-N20AGB
-
Torque:
-
10-1500g.cm
-
Reduction Ratio:
-
1:10-1:1000
-
Motor Diameter:
-
12mm
-
Gearbox Diameter:
-
12mm
-
Motor Length:
-
15.1mm
-
Gearbox Length:
-
9-12mm
-
Shaft Diameter:
-
3mm
-
Shaft type:
-
D-cut, round or keyway
Product Description

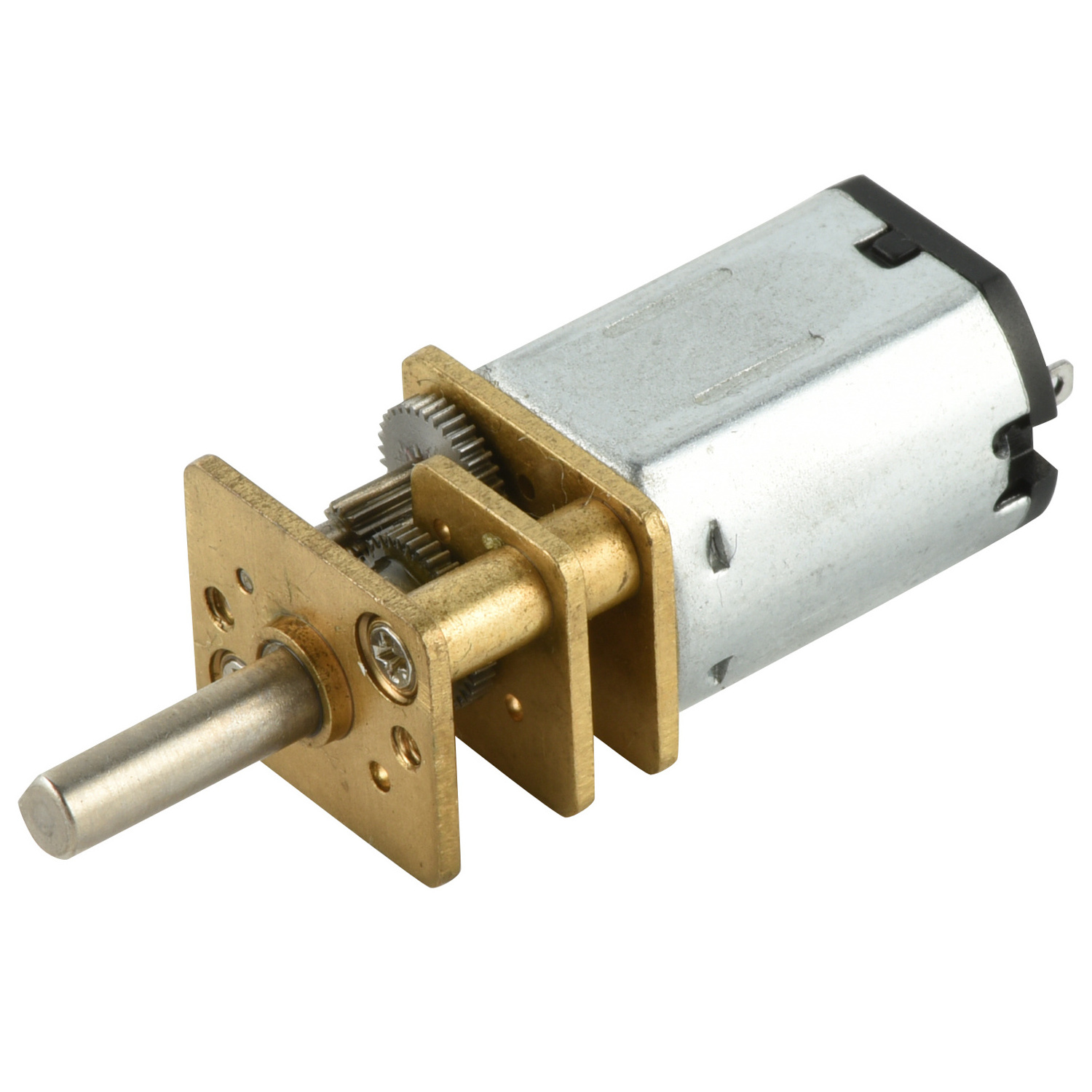

N20 micro dc geared motor for robot low rpm
Motor Specification
Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft can customized.
More Details
Rated Voltage: 1.5-12V
No Load Speed: 10-3000RPM
Load Torque: 10-1500 g.cm
Reduction Ratio: 1:10-1:1000
Output Power: 0.1-2W
Motor Diameter: 12mm
Gearbox Diameter: 12mm
Motor Length: 15.1mm
Gearbox Length: 9-12mm
Shaft Diameter: 3mm
