Quick Details
-
Material:
-
Silicon Rubbber, PE
-
Rated Voltage:
-
1000V
-
Tensile Strength:
-
>19MPa
-
Product name:
-

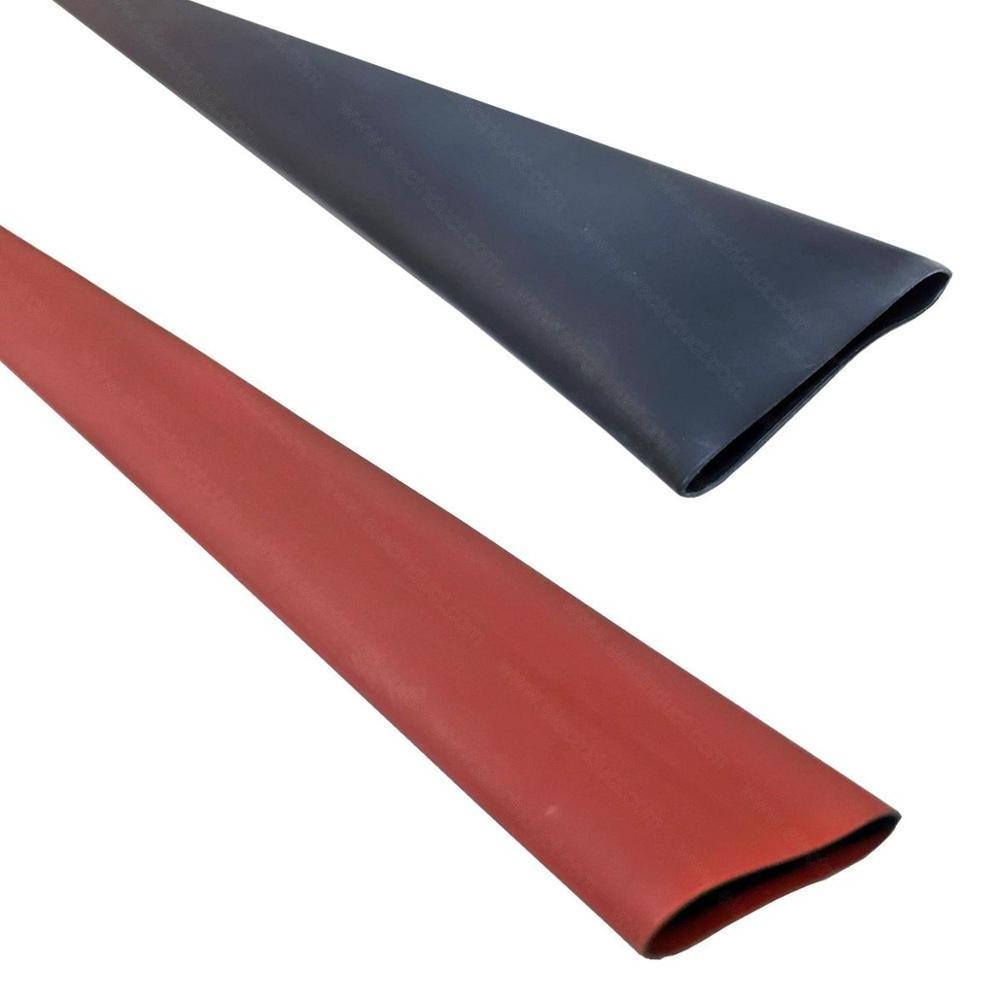

Heat Shrink Tubing Tube Wire Wrap
-
Standard Color:
-
Black/Red/White/Blue/Green/Yellow
-
Shrink Ratio:
-
2:1 3:1
-
Voltage Class:
-
1000V
-
Features:
-
Low temperature
-
Certification:
-
ISO9001, SGS, REACH
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Hampool
-
Model Number:
-
HP-HST
-
Material:
-
Silicon Rubbber, PE
-
Rated Voltage:
-
1000V
-
Tensile Strength:
-
>19MPa
-
Product name:
-
Heat Shrink Tubing Tube Wire Wrap
-
Standard Color:
-
Black/Red/White/Blue/Green/Yellow
-
Shrink Ratio:
-
2:1 3:1
-
Voltage Class:
-
1000V
-
Features:
-
Low temperature
-
Certification:
-
ISO9001, SGS, REACH
Product Exhibition
Technical Data
|
Property
|
Specification Requirement
|
Test Method
|
Typical Value
|
|
Tensile strength (Room temp.)
|
Min. 10.4Mpa
|
UL224
|
12Mpa
|
|
Elongation at break (Room temp.)
|
Min. 200%
|
UL224
|
400%
|
|
Tensile strength after aging (158℃ 168hrs)
|
Min. 7.3Mpa
|
UL224
|
10.4Mpa
|
|
Elongation after aging (158℃ 168hrs)
|
Min. 100%
|
UL224
|
300%
|
|
Voltage withstand (Un-aged)
|
Withstand 2.5kV for 1 minute and breakdown
|
UL224
|
Pass
|
|
Voltage withstand (Aged)
|
Withstand at least half of un-aged breakdown
voltage for 1 minute and breakdown
|
UL224
|
Pass
|
|
Corrosion (158℃ 168hrs)
|
No corrosion
|
UL224
|
No sign of deg.
|
|
Longitudinal shrinkage
|
≤10%
|
UL224
|
≤5%
|
|
Low-temperature flexibility (-55℃ 4hrs)
|
No cracking
|
UL224
|
Pass
|
