Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GYM9-DC-2P 6-25A
-
Rated Frequency (Hz):
-
50/60 Hz
-
Pole:
-
1P 2P 3P 4P
-
Rated current:
-
1A 2A 3A 4A 6A 10A 16A 25A 32A 40A 50A 63A
-
Rated voltage:
-
250V 500V 750V 1000V
-
Rated frequency:
-
50/60 Hz
-
Breaking capacity:
-
6kA/10kA
-
Certificate:
-
CE CB ISO9001
-
Electrical Life:
-
4000
-
Mechanical Life:
-
10000
Quick Details
-
Breaking Capacity:
-
6kA/10kA
-
Rated Voltage:
-
250V 500V 750V 1000V
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GYM9-DC-2P 6-25A
-
Rated Frequency (Hz):
-
50/60 Hz
-
Pole:
-
1P 2P 3P 4P
-
Rated current:
-
1A 2A 3A 4A 6A 10A 16A 25A 32A 40A 50A 63A
-
Rated voltage:
-
250V 500V 750V 1000V
-
Rated frequency:
-
50/60 Hz
-
Breaking capacity:
-
6kA/10kA
-
Certificate:
-
CE CB ISO9001
-
Electrical Life:
-
4000
-
Mechanical Life:
-
10000
··············This link price is only for GYM9-DC-2P 6-25A··············
Products Description

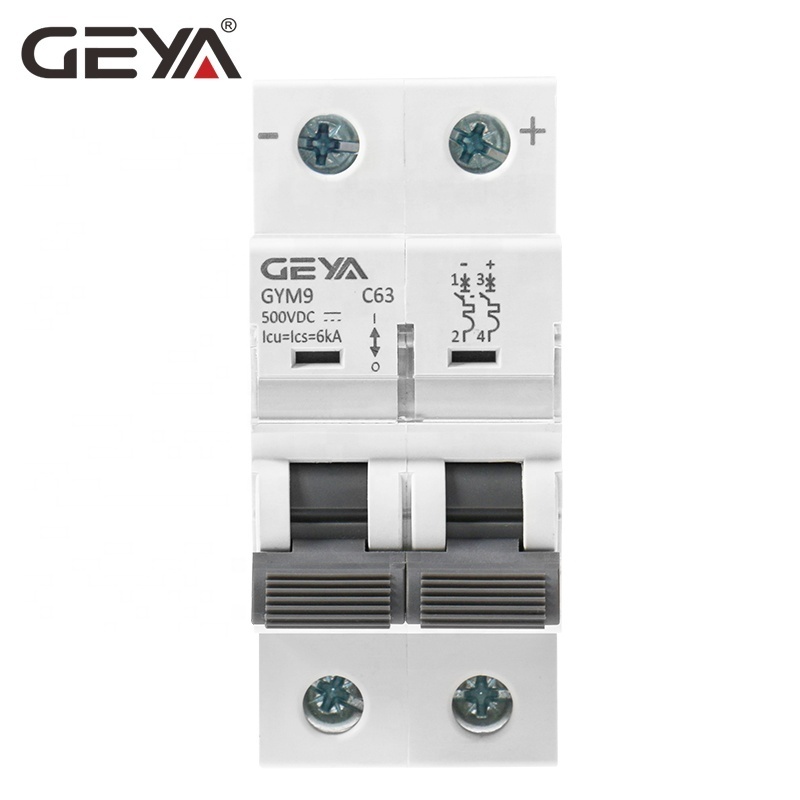

GYM9-DC circuit breaker is used for DC rated voltage to 1000V, rated current to 63A line, for overload and short circuit protection, and can also be used as an infrequent operation of the line.Circuit breakers are used in DC applications such as communications and photovoltaic system.
In complicance with IEC/EN606947-2
With indicator function in the contact position.
Transparent cover designed to carry label.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
Maximum connecting ability of 25mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
In complicance with IEC/EN606947-2
With indicator function in the contact position.
Transparent cover designed to carry label.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
Maximum connecting ability of 25mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
Technical Data
|
Electrical features
|
|
|
|
Rated current In
|
1-63A
|
|
|
Poles
|
1P 2P 3P 4P
|
|
|
Rated voltage Ue
|
1P;250V~ 2P:500V,3P:75OV,4P:100ov
|
|
|
Insulation voltage Ui
|
100ov
|
|
|
Rated breaking capacity
|
6000A
|
|
|
Rated impulse withstand voltage(1.2/50)Uimp
|
6kV
|
|
|
Dielectric test voltage at and ind.freq.for 1min
|
2kV
|
|
|
Polution degree
|
2
|
|
|
Thermo-magnetic release characteristic
|
B:6In±20%;C: 12In±20%
|
|
|
Mechanicallife
|
10000
|
|
|
Installation
|
|
|
|
Contact position indicator
|
Yes
|
|
|
Portection degree
|
IP20
|
|
|
Reference temperature for setting of thermal element
|
30℃
|
|
|
Ambient temperature (with daily average ≤35℃)
|
-5~+40℃
|
|
|
Storage temperature
|
-25~+70℃
|
|
|
Terminal connertion type
|
Cable/U-type busbar/Pin-type busbar
|
|
|
Terminal size top/bottom for cable
|
25mm²
18-3 |
|
|
Tightening torque
|
3.0N*m
22 |
|
|
Mounting
Connection |
On DIN rail FN 60715(35mm) by means of fast clip device
Top and bottom
|
|
