Quick Details
-
Table Size:
-
1.83*0.76m
-
Weight:
-
7757 kg
-
Marketing Type:
-
New Product 2022
-
Maximum Working Height:
-
16.2m
-
Maximum Platform Height:
-
14.2m
-
Maximum Horizontal Reach:
-
8m
-
Platform Capacity:
-
230kg
-
Wheel Base:
-
2.2m
-
Solid Tire:
-
33*12-20
-
Machine Weight:
-
7577kg
-
Engine:
-
Cum&mins
-
Product name:
-

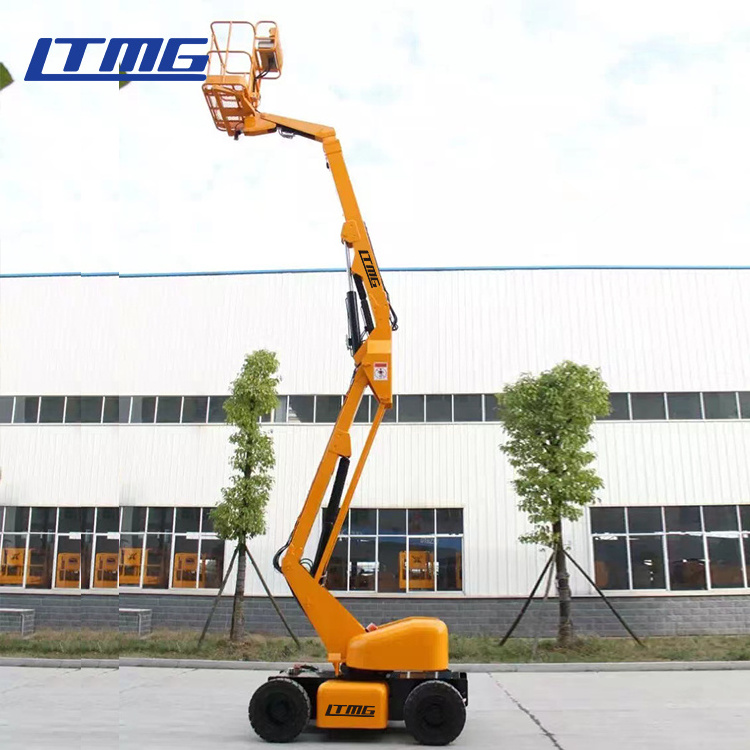

LTMG Manlift machine 20m Cherry Picker Towable Boom Lift for Sale
-
Platform Dimension:
-
1.83*0.76m
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
LTMG
-
Table Size:
-
1.83*0.76m
-
Weight:
-
7757 kg
-
Marketing Type:
-
New Product 2022
-
Maximum Working Height:
-
16.2m
-
Maximum Platform Height:
-
14.2m
-
Maximum Horizontal Reach:
-
8m
-
Platform Capacity:
-
230kg
-
Wheel Base:
-
2.2m
-
Solid Tire:
-
33*12-20
-
Machine Weight:
-
7577kg
-
Engine:
-
Cum&mins
-
Product name:
-
LTMG Manlift machine 20m Cherry Picker Towable Boom Lift for Sale
-
Platform Dimension:
-
1.83*0.76m
|
Model
|
LTQD1416
|
|
Maximum Working Height
|
16.2m
|
|
Maximum Platform Height
|
14.2m
|
|
Maximum Horizontal Reach
|
8m
|
|
Platform Capacity
|
230kg
|
|
Maximum Up and Over Clearance
|
7.75m
|
|
Machine Length( stowed) Ⓓ
|
6.2m
|
|
Machine Width (stowed) Ⓔ
|
2.29m
|
|
Machine Height(stowed) Ⓒ
|
2.38m
|
|
Wheel Base Ⓕ
|
2.2m
|
|
Ground Clearance Ⓖ
|
430mm
|
|
Platform DimensionⒷ*Ⓐ
|
1.83*0.76m
|
|
Tail Swing
|
3.0m
|
|
Turning Radius
|
5.2m
|
|
Drive Speed(stowed)
|
6.3km/h(2WD);
|
|
|
4.2km/h(4WD)
|
|
Drive Speed(raised or extended)
|
1.1km/h
|
|
Gradeablity
|
45%(4WD);30%(2WD)
|
|
Solid Tire
|
33*12-20
|
|
Swing Speed
|
0-0.8rpm
|
|
Turntable Swing
|
360° Continuous
|
|
Platform Leveling
|
Automatic leveling
|
|
Platform Rotation
|
±80°
|
|
Hydraulic Tank Volume
|
100L
|
|
Machine Weight
|
7577kg(2WD)
|
|
|
7757kg(4WD)
|
|
Control Voltage
|
12V
|
|
Drive & Steering
|
4*2*2 or 4*4*2
|
|
Engine
|
Cummins(B2.8-C58)
|
|
|
Yamar(4TNV94L-BXPHZ)
|
