Quick Details
-
EINECS No.:
-
230-391-5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dobon
-
Model Number:
-
TS-15
-
Item name:
-
Encapsulant Silicone Gel Glue Adhesive Thermal Gel
-
Brand name:
-
Dobon
-
Material:
-
Silicone
-
Package:
-
Tbue
-
Tensile Strength:
-
≥1.5
-
Color:
-
Custom color available
-
Dielectric strength (60HZ):
-
≤4.0
-
Sample:
-
For free
-
Application temperature:
-
-40 to 220
-
Shipment:
-
By sea or byair
Quick Details
-
CAS No.:
-
63148-62-9
-
Other Names:
-
thermal silicone gel
-
MF:
-
HOSi(CH3)2[OSi(CH3)2]nOH
-
EINECS No.:
-
230-391-5
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dobon
-
Model Number:
-
TS-15
-
Item name:
-
Encapsulant Silicone Gel Glue Adhesive Thermal Gel
-
Brand name:
-
Dobon
-
Material:
-
Silicone
-
Package:
-
Tbue
-
Tensile Strength:
-
≥1.5
-
Color:
-
Custom color available
-
Dielectric strength (60HZ):
-
≤4.0
-
Sample:
-
For free
-
Application temperature:
-
-40 to 220
-
Shipment:
-
By sea or byair
Encapsulant Silicone Gel Glue Adhesive Thermal Gel
Data sheet:
| Thermal conductive adhesive parameters | ||||
| Item & unit | TS-10 | TS-15 | TS-20 | Method |
| Before curing feature(23±2℃)50%±5% RH | ||||
| Appearance | white paste | white paste | white paste | visual inspection |
| Surface drying time (min) | ≤10min | 3~15min | 3~15min | GB/T13477.5-2002 |
| After curing feature (23±2℃,50%±5%RH,7days) | ||||
| Appearance | white | white | white | visual inspection |
| Proportion(23℃) g/cm³ | 1.71±0.05 | 2.0±0.5 | 2.5±0.5 | ASTM D792 |
| Hardness(shore A) | 70±5 | 65±5 | 65±5 | ASTM D2240 |
| Tensile Strength MPa | ≥1.5 | ≥2.0 | ≥2.0 | ASTM D412 |
| Adhesion Strength MPa | ≥1.0 | ≥2.0 | ≥2.0 | ASTM D1002 |
| Elongation % | ≥80 | 100 | 100 | ASTM D412 |
| Thermal conductivity W/m.k | ≥0.8 | 1.5 | 2 | ISO/DIS22007-2.2 |
| Volume resistivity Ω.cm | ≥1×1014 | ≥1×1014 | ≥1×1014 | ASTM D257 |
| Insulation strength KV/mm | ≥18 | ≥20 | ≥20 | ASTM D149 |
| Dielectric strength (60HZ) | ≤4.0 | ≤4.0 | ≤4.0 | ASTM D150 |
| Dielectric loss coefficient(60HZ) | ≤0.04 | ≤0.04 | ≤0.04 | ASTM D150 |
| Flammability rating | V0 | V0 | V0 | UL94 |
| All the above data were tested at 25 ℃ and 55% relative humidity. The properties after curing were measured after 7 days of curing. | ||||
Product features
- Excellent weather resistance, ozone resistance and chemical resistance
- High thermal conductivity, good insulation, thermal conductivity greater than 0.8W/M.K
- The content of low molecular weight (D3-D10) siloxane is less than 300PPM
- Good following performance, eliminating traditional mechanical fixation
- Anti seismic, prevent mechanical damage, and have no corrosion to the base material
- Similar to Dow Corning and Kraft thermal conductive silica gel

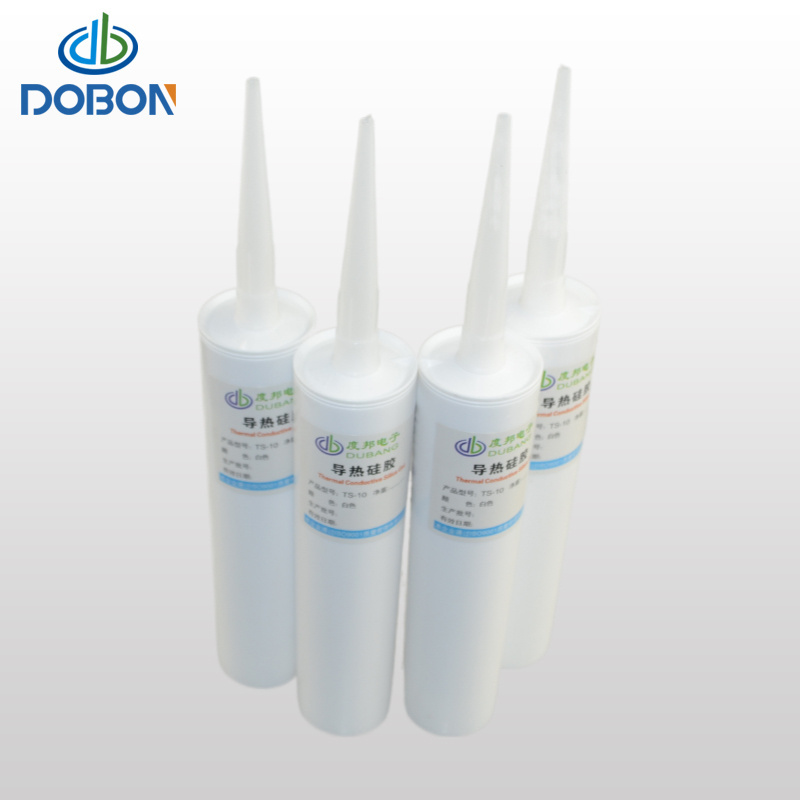

Product Pictures:
Product Application:
Use Method:
Matters need attention:
In order to keep the rest of the product,we should tighten the cap. So the rest can not solidify
Safety instructions:
1.Do not touch the skin and eye when using it.
2.If touch the eye, please wash immediately and contact with
the doctor.
3.Workplace ventilation.
Certifications:
Factory Show:
Packaging:
Q: Are you trading company or manufacturer ?
A: We are manufacturer, our factory in Dongguan city, China. Welcome to visit.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free , but not including the shipping cost.If it is a sample order, you can place an order directly, and we will take the initiative to contact you to confirm that we can provide the quantity and style.
Q: How to customize a sample?
A:If you are ordering a unique sample that we don't have in stock, you need to provide all the details, it will be better if you can send a sample for our evaluation. Customized samples maybe need new molding, which will cost molding fee. We will check your sampling requirements, then issue a sampling P/I. Sampling may take 3-5 days, depending on detailed samples.
Q: How to order?
A:You can place an order directly, but the freight may be inaccurate. After placing an order, our business will actively contact you to confirm the size, thickness, thermal conductivity and packaging, and then confirm the accurate price. After modifying the order, you can pay directly.
Please try your best to contact the customer service before placing an order, or provide your own contact information to facilitate the communication of details through the chat software.
