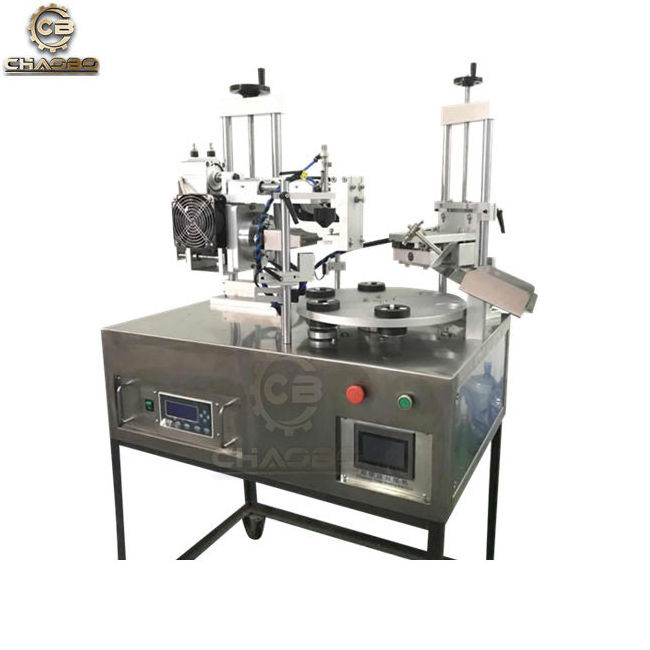

Table Top Automatic Hot Air PE Soft Tube Sealing Ultrasonic Cosmetic Cream Plastic Tube Top Sealer Machine

Table Top Automatic Hot Air PE Soft Tube Sealing Ultrasonic Cosmetic Cream Plastic Tube Top Sealer Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6666

≥5 Sets

US $5666

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max Speed:: 10tubes/min

Voltage:: AC220V±10%

Place of Origin:: Guangdong, China

Brand Name:: CHAOBO

Dimension(L*W*H):: 105*95*135CM

Weight:: 280 KG

Ultrasonic Frequency:: 20KHz

Weld time:: 0.01-2.99 S

Horn journey:: 75 mm

Sealing tube diameter:: 5-50 mm

Sealing tube height:: 50-250 mm

Auto Grade:: Semiautomatic

Function:: table top plastic tube sealer

Filling material:: Cream, Gel, Liquid, Ointment

Material:: SS304/316

Sealing type:: Ultrasonic

Quick Details

Packaging Type:: Tube

Packaging Material:: Plastic

Driven Type:: Pneumatic

Max Speed:: 10tubes/min

Voltage:: AC220V±10%

Place of Origin:: Guangdong, China

Brand Name:: CHAOBO

Dimension(L*W*H):: 105*95*135CM

Weight:: 280 KG

Ultrasonic Frequency:: 20KHz

Weld time:: 0.01-2.99 S

Horn journey:: 75 mm

Sealing tube diameter:: 5-50 mm

Sealing tube height:: 50-250 mm

Auto Grade:: Semiautomatic

Function:: table top plastic tube sealer

Filling material:: Cream, Gel, Liquid, Ointment

Material:: SS304/316

Sealing type:: Ultrasonic

Product Description

CHAOBO ULTRASONIC TUBE FILLING AND SEALING MACHINE
The process of tube sealing machine eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic sealing with the proper time setting and pressure is the fastest most reliable method for a variety of tube material sealing.
* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time

Main Features
1. Small size and compact design, a djustable rotation speed turntable with 6 tube holders, high efficiency.
2. Adopt digital ultrasonic circuit, stable output and performance;
3. Machine body of stainless steel, meet with GMP requirement;
4. PLC/HMI control, simple operation and parameters setting;
5. Machine with mark searching function, more precise sealing
6. Main parts adopt imported components, Japan and Taiwan;
7. Suitable for plastic tubes, composite tubes, PE tubes.
8. Compared with traditional type heat sealing method, the ultrasonic tube sealing has the following advantages:
* Fast Sealing, save time
* Sealing is nice looking, no plastic melting overflow
* Lower power consumption, energy saving

Functions:
1. Tube Tail Sealing
2. Cutting (trimming)
3. Mark Searching
4. Batch No Coding
5. PLC/HMI control, English/French/Espanol interface as request
6. Stainless steel body, Meet with GMP requirement
7. Meet with CE requirement.

Model No.	DR-2012TA
Ultrasonic Power	2600W(adjustable)
Ultrasonic Frequency	20KHz
Voltage	AC 220V, Single Phase, 50/60Hz
Driven Mode	Pneumatic
Stroke	75MM
Working Pressure	0.4-0.7MPa
Delay/Weld/Hold Time	0.01-9.99S
Tube Diameter Range	10-50MM(customization offered)
Tube Height Range	50-250MM(customization offered)
Capacity	25 tubes per min
Gross Weight	280 KGS
Packing Dimensions	LWH 10509601350MM

It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing. Extensional organization of the machine is made of aluminium alloy and stainless steel.

Details Images

Digital Ultrasonic Generator

Type: Digital;

Main Feature:

* Fully Auto-tuning.

* Amplitude adjustable for different power output.

PLC Touch Screen

Language: English.

Main Settings: Time, Filling Volume, Mark Speed, etc

Orientation/Mark Search

Using high sensitivity Japan-Imported Panasonic infrared positioning system, plastic tube will be turning to right side according to the mark on the tube.

Certifications

Packing & Delivery

Packing material	Plywood
Packing Size	LWH=10509501350MM
Gross Weight	280 KGS
Description	Standard export wood cases, no solid wooden. With soft packaging material inside the box
