Quick Details
-
Weight (KG):
-
50 KG
-
Pulsed width:
-
100-300ns
Quick Details
-
Place of Origin:
-
Jilin, China
-
Spare Parts Type:
-
None
-
Brand Name:
-
CNI
-
Weight (KG):
-
50 KG
-
Pulsed width:
-
100-300ns

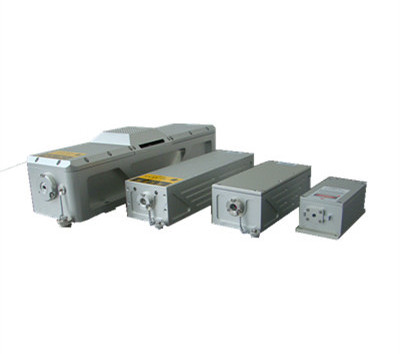

High power laser includes CW DPSS laser and pulsed DPSS Q-switched laser. It is widely used in medical, scientific research, material processing and industrial applications. Available with 532 nm, 556 nm, 589 nm, 660 nm, 1064 nm,1319 nm, etc... Average power of 532 nm green laser can be up to 200 W and 1064 nm infrared laser can be up to 500 W.
Application: Ranging & Lidar, Medical Treatment, Scientific Research, Optical Sensor, Spectrum Analysis
|
SPECIFICATIONS
|
|
|
|
|
|
|
||||||
|
Wavelength (nm)
|
Model
|
Operating mode
|
Average power (W)
|
Rep. rate (kHz)
|
Pulse duration (ns)
|
Data sheets
|
||||||
|
532
|
HPL-532-Q
|
Q-switched
|
20-40
|
10-20
|
~100
|
specification
|
||||||
|
|
HPL-532-QM
|
Q-switched
|
40-100
|
10-20
|
~100
|
specification
|
||||||
|
|
HPL-532-QL
|
Q-switched
|
100-200
|
15
|
~100
|
specification
|
||||||
|
|
HPL-532-QS
Peak power 1 MW
|
Q-switched
|
10-45
|
10
|
5
|
specification
|
||||||
|
|
HPL-532-CW
|
CW
|
1-50
|
/
|
/
|
specification
|
||||||
|
556
|
HPL-556-Q
|
Q-switched
|
20-50
|
10-20
|
~100
|
specification
|
||||||
|
589
|
HPL-589-Q
|
Q-switched
|
25
|
5 / 15
|
~100-150
|
specification
|
||||||
|
660
|
HPL-660-Q
|
Q-switched
|
20-50
|
10-20
|
~150
|
specification
|
||||||
|
|
HPL-660-QM
|
Q-switched
|
50-100
|
10-20
|
~150
|
specification
|
||||||
|
1064
|
HPL-1064-Q
|
Q-switched
|
50-100
|
10-20
|
~100
|
specification
|
||||||
|
|
HPL-1064-QM
|
Q-switched
|
100-300
|
10-20
|
~150-300
|
specification
|
||||||
|
|
HPL-1064-QS
Peak power 2 MW |
Q-switched
|
100-150
|
10
|
~7
|
specification
|
||||||
|
|
HPL-1064-CW
|
CW
|
50-100
|
/
|
/
|
specification
|
||||||
|
|
HPL-1064-CW
|
CW
|
200-500
|
/
|
/
|
specification
|
||||||
|
1319
|
HPL-1319-Q
|
Q-switched
|
20-50
|
10-20
|
~250
|
specification
|
||||||
|
|
HPL-1319-QM
|
Q-switched
|
50-100
|
10-20
|
~250
|
specification
|
||||||
|
|
HPL-1319-CW
|
CW
|
20-50
|
/
|
/
|
specification
|
||||||
|
|
HPL-1319-CW
|
CW
|
50-150
|
/
|
/
|
specification
|
||||||
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and good laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our convenient and rapid service.
