Quick Details
-
Product name:
-
bit breaker
-
Usage:
-
Oil Drilling Ect
-
Application:
-
Welling Drilling
-
Advantage:
-
High Performance
-
Market:
-
Global
-
MOQ:
-
1 Piece
-
Quality:
-
High Level
-
Size:
-
22"
-
Package:
-
Standard Exported Package
-
Color:
-
Required
Quick Details
-
Weight (KG):
-
80
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DONGYING GREAT PETROLEUM EQUIPMENT CO.,LTD
-
Product name:
-
bit breaker
-
Usage:
-
Oil Drilling Ect
-
Application:
-
Welling Drilling
-
Advantage:
-
High Performance
-
Market:
-
Global
-
MOQ:
-
1 Piece
-
Quality:
-
High Level
-
Size:
-
22"
-
Package:
-
Standard Exported Package
-
Color:
-
Required
Products Description

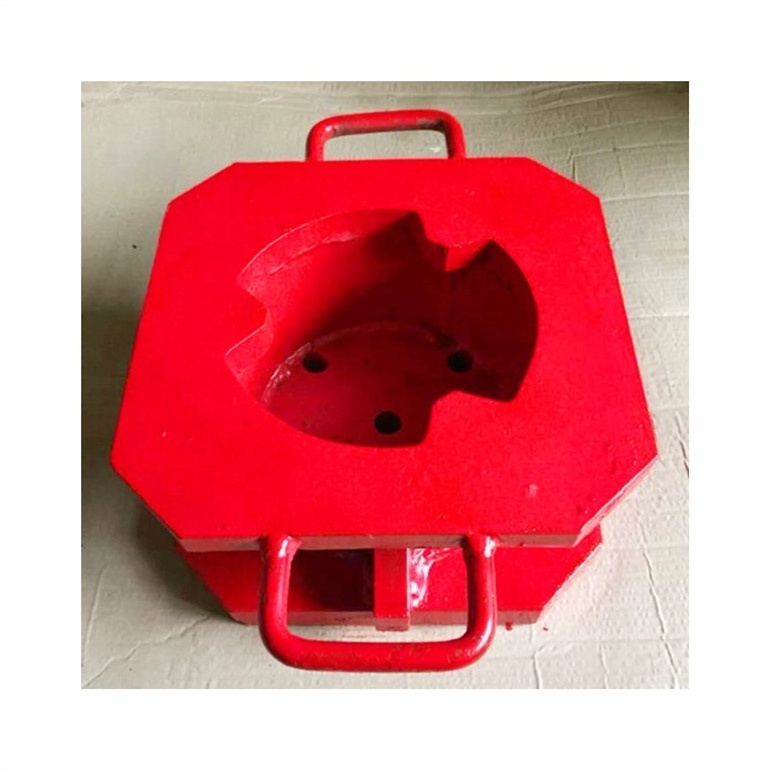

1.Bit breaker is mainly used to screw on or off a rock bit to the bottom of drill string.
2.It can also prevent the rock bit from dropping into well hole.
3.The price of it is cheap and the use of it is safety and reliable.
4.It is easy to operate. First, the bit breaker is placed on well hole and then put the rock bit onto it. Turn it to screw on or off the bit by turnplate.
Product Paramenters
|
Regular Models of Tricone Bits
|
|
|
|
|||
|
Regular Sizes
|
Regular IADC
|
API Reg Pin
|
Make-up Torque(N.m)
|
|||
|
3 7/8"(98.4mm)
|
126/216/637
|
2 3/8
|
4100~4700
|
|||
|
4 5/8"(117.4mm)
|
126/216/517/537/637
|
2 7/8
|
6100~7500
|
|||
|
5 1/4"(133.3mm)
|
126/216/517/537/637
|
3 1/2
|
9500~12200
|
|||
|
5 5/8"(142.8mm)
|
126/216/517/537/637
|
3 1/2
|
9500~12200
|
|||
|
5 7/8"(149.2mm)
|
126/216/517/537/637
|
3 1/2
|
9500~12200
|
|||
|
6"(152.4mm)
|
126/127/216/517/537/617/637
|
3 1/2
|
9500~12200
|
|||
|
6 1/4"(158.7mm)
|
126/127/216/517/537/617/637
|
3 1/2
|
9500~12200
|
|||
|
6 1/2"(165mm)
|
126/127/216/517/537/617/637
|
3 1/2
|
9500~12200
|
|||
|
7 1/2"(190mm)
|
126/216/517/537
|
4 1/2
|
16300~21700
|
|||
|
7 5/8"(193mm)
|
126/216/517/537
|
4 1/2
|
16300~21700
|
|||
|
7 7/8"(200mm)
|
126/216/517/537
|
4 1/2
|
16300~21700
|
|||
|
8 1/2"(215.9mm)
|
117/127/217/437/517/537/617/637
|
4 1/2
|
16300~21700
|
|||
|
9 1/2"(241.3mm)
|
117/127/217/437/517/537/617/637
|
6 5/8
|
38000~43400
|
|||
|
9 7/8"(250.8mm)
|
117/127/217/437/517/537/617/637
|
6 5/8
|
38000~43400
|
|||
|
10 5/8(269.8mm)
|
117/127/137/217/517/537/617/637
|
6 5/8
|
38000~43400
|
|||
|
11 5/8(295.3mm)
|
117/127/137/217/517/537/617/637
|
6 5/8
|
38000~43400
|
|||
|
12 1/4"(311.1mm)
|
114/127/217/437/517/537/617/637
|
6 5/8
|
38000~43400
|
|||
|
13 5/8"(346.0mm)
|
127/217/517/537/617/637
|
6 5/8
|
38000~43400
|
|||
|
14 3/4"(374.6mm)
|
127/217/517/537/617/637
|
7 5/8
|
46100~54200
|
|||
|
17 1/2"(444.5mm)
|
114/115/125/215/515/535/615/635
|
7 5/8
|
46100~54200
|
|||
|
26"(660.4mm)
|
114/115/125/215/515/535/615
|
7 5/8
|
46100~54200
|
|||
|
Standard Size Comparision Table Of PDC Bit Breaker
|
|
|
|
|
|
|||||
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
|||||
|
4-5/8
|
117.5
|
6-1/2
|
165.1
|
9-7/8
|
250.8
|
|||||
|
4-3/4
|
120.6
|
6-3/4
|
171.4
|
10-5/8
|
269.9
|
|||||
|
5-1/4
|
133.3
|
7-1/2
|
190.5
|
11-5/8
|
295.3
|
|||||
|
5-1/2
|
139.7
|
7-5/8
|
193.7
|
12-1/4
|
311.1
|
|||||
|
5-5/8
|
142.9
|
7-7/9
|
200
|
13-5/8
|
346.1
|
|||||
|
5-3/4
|
146.1
|
8-1/2
|
215.9
|
14-3/4
|
374.6
|
|||||
|
5-7/8
|
149.2
|
8-3/4
|
222.2
|
15-1/2
|
393.7
|
|||||
|
6
|
152.4
|
9-1/2
|
241.3
|
16
|
406.4
|
|||||
|
6-1/4
|
158.8
|
9-5/8
|
244.5
|
17-1/2
|
44.5
|
|||||
|
Any more specific ,please contact us at any time
|
|
|
|
26
|
660.4
|
|||||
