Quick Details
-
Brand Name:
-
Fols
-
Body:
-
CF8M,CF8,WCB
-
Seat:
-
PTFE
-
Working Temperature:
-
-20℃ to 180℃
-
working Pressure:
-
800WOG(PN50)
-
Gasket:
-
PTFE
-
Packing:
-
PTFE
-
Bolt and nut:
-
304
-
Thread end:
-
AMSE B1.20.1(NPT), DIN259/DIN2999,BS 21, ISO 288-1 ISO 7-1
-
Socket Weld end:
-
AMSE B16.11
Quick Details
-
Port Size:
-
Standard, 1/4' -3'(DN8-80)
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FLTH45
-
Brand Name:
-
Fols
-
Body:
-
CF8M,CF8,WCB
-
Seat:
-
PTFE
-
Working Temperature:
-
-20℃ to 180℃
-
working Pressure:
-
800WOG(PN50)
-
Gasket:
-
PTFE
-
Packing:
-
PTFE
-
Bolt and nut:
-
304
-
Thread end:
-
AMSE B1.20.1(NPT), DIN259/DIN2999,BS 21, ISO 288-1 ISO 7-1
-
Socket Weld end:
-
AMSE B16.11
| · About FOLS Valve · |
Guangzhou Fols Valve Technology Co., ltd is a manufacturer which has been specializing in electric, pneumatic valve actuator, full range of valves and in the research, development, production, sale and service of automatic control systemOur main products the FOLS series of electric actuator are elaborately designed and manufactured by the most advanced technology according to the practical situation. The FOLS series of electric actuator are characterized by driving device and transmission gear in one, small volume, light weight, good-looking appearance, and remarkable performance. They have been widely used in various fields, such as paper making, pharmaceuticals, food, chemical, petroleum, electricity, fire protection, air-condition, water supply and industrial automation and so on.
| · Features · |
*1/4"-3"(DN8-80)
*Working Pressure:800WOG(PN50)
*Working Temperature:-20℃-180℃
*Investment casting
*Thread end:AMSE B1.20.1(NPT),
DIN259/DIN2999,BS 21,
ISO 288-1 ISO 7-1
*Socket Weld end :AMSE B16.11

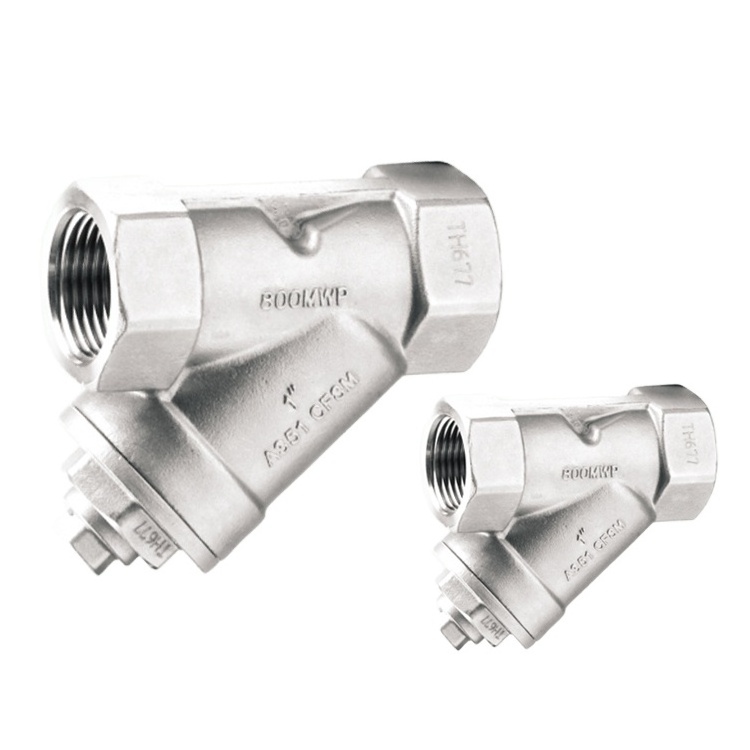

| · Product show · |
| · Material List · |
| NO. | PARTS | MATERIAL | ||
| 1 | BODY | WCB | CF8 | CF8M |
| 2 | SCREEN | 304 | 304 | 316 |
| 3 | GASKET | PTFE | ||
| 4 | BONNET | WCB | CF8 | CF8M |
| 5 | GASKET | PTFE | ||
| 6 | PLUG | WCB | CF8 | CF8M |
| · Dimensions · |
