Quick Details
-
Chipset Manufacture:
-
Intel
-
Display:
-
21.5"
-
Touch screen:
-
Capacitive touch screen
-
Resolution:
-
1920*1080
-
Brightness:
-
300cd/㎡
-
Power Supply:
-
DC 12V DC power supply
-
RAM:
-
4/ 8/16 GB Optional
-
Heat dissipation mode:
-
No fan
-
Ports:
-
1 * LAN ,3 * USB2.0 ,1 * USB3.0 ,1 * HDMI ,1 * VGA ,1 * DC ,2*COM
-
Chassis material:
-
Aluminum alloy die-casting shell
Quick Details
-
Type:
-
Panel PC
-
Brand Name:
-
ZEROONE
-
Place of Origin:
-
Guangdong, China
-
Chipset Manufacture:
-
Intel
-
Display:
-
21.5"
-
Touch screen:
-
Capacitive touch screen
-
Resolution:
-
1920*1080
-
Brightness:
-
300cd/㎡
-
Power Supply:
-
DC 12V DC power supply
-
RAM:
-
4/ 8/16 GB Optional
-
Heat dissipation mode:
-
No fan
-
Ports:
-
1 * LAN ,3 * USB2.0 ,1 * USB3.0 ,1 * HDMI ,1 * VGA ,1 * DC ,2*COM
-
Chassis material:
-
Aluminum alloy die-casting shell
Specification
|
Product Model
|

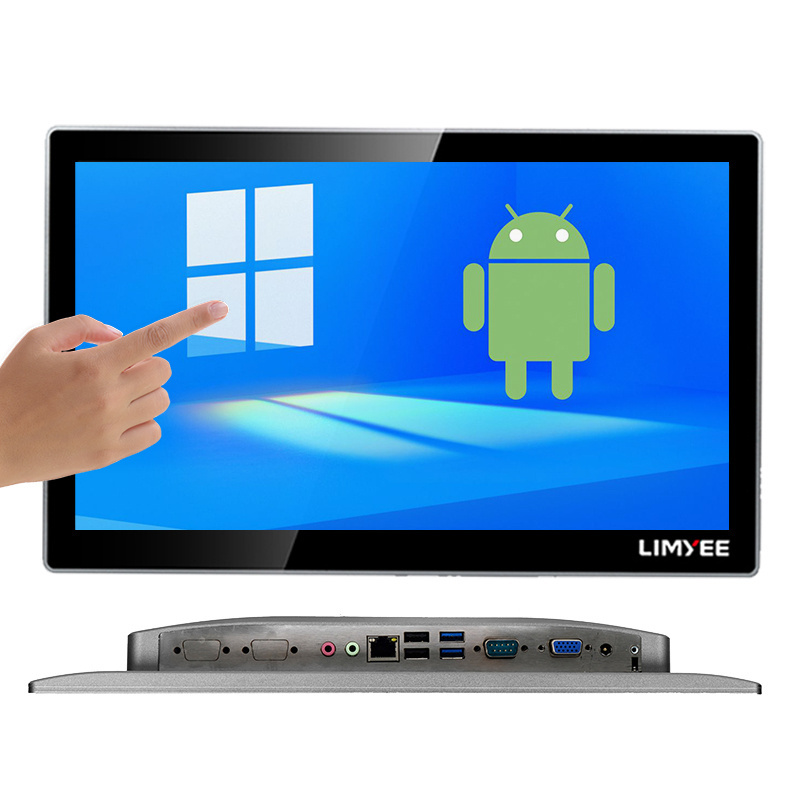

Industrial PC PPC-2111
|
|
Display
|
21.5
|
|
Touch Screen
|
Capacitive Touch Screen
|
|
Resolution Ratio
|
1920*1080
|
|
Luminance
|
300cd/㎡
|
|
Heat dissipation
|
Fanless
|
|
CPU
|
Support for Intel ® Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation
Whiskeylake&10th generation Cometlake U processors |
|
BIOS
|
AMI BIOS
|
|
Chipset
|
Intel® SOC
|
|
Network
|
Realtek RTL8111
|
|
Audio
|
Realtek ALC269HD
|
|
Memory
|
4G 8G 16G DDR3/DDR4
|
|
Hard dive
|
M-SATA 128G,M.2 2280 Sata 128G/256G
|
|
Functions
|
Supports WiFi, Bluetooth, 4G, and watchdog functions
|
|
Front I/O
|
1 * Switch (with LED)； 2 * Antenna； 2 * USB/2 * COM (reserved)
|
|
Rear I/O
|
1 * LINE OUT interface
1 * MIC-IN interface 1 * LAN interface 3 * USB2.0 interface 1 * USB3.0 interface 1 * HDMI interface 1 * VGA interface 1 * DC interface 2*COM232 1 * M3 grounding screw hole |
|
Power IN
|
DC 12V DC power supply
|
|
Power Adapter
|
INPUT : 100-240V50/60Hz
Output : 12.0V/5.0A |
|
OS support
|
Windows 7 / Windows 10 / Linux
|
|
Overall Power Consumption
|
<29W (screen 15W), slightly higher power consumption for 6-10 generations
|
|
Installation Method
|
Compatible with embedded, wall mounted, and desktop versions
|
|
Dimensions
|
511x313x42mm
|
|
Weight
|
< 3.4kg
|
|
Product colour
|
Space Gray
|
|
Chassis material
|
Aluminum alloy structure
|
|
Certification
|
CCC / CE / FCC / RoHs
|
|
Advantage
|
Intel IoT Solutions Alliance Affiliate Member
14 Years Expensive in Industrial Panel Pc field
|
|
Sample
|
Product Paramenters
Product Parameters
1.Support for Intel ® Bay Trail, Gemini lake, Elkhart lake, 6th generation Sky lake&7th generation Kaby lake, 8th generation Whiskeylake&10th generation Cometlake U processors
2.Supports SO-DIMM, M-SATA, M.2 Sata, M.2 NVME storage
3.Standard 21.5-inch high-definition display screen, capacitive touch screen, supporting dual display
4.Standard configuration with 4USB and 1LAN interfaces, expandable with 2USB and multi specification COM interfaces
5.Supports 1 * MINI-PCIE (for WIFI), 1 * SIM, and supports 3G, 4G, and 5G modules
6.Supports VESA bracket installation, wall mounted and desktop mounted
7.The complete machine has a windless design, patented industrial design, and is aesthetically pleasing
8.Panel protection level: IP65 waterproof and dustproof
9.ESD Protection: ±6kV (Contact ), ± 12kV (Air)
10.The product can be widely used in industries such as industrial automation, environmental monitoring, wind power generation, 3D machine vision inspection, etc
If you do not have custom requirements, you can choose the following basic configuration：
For Windows：
10.1 inch
PPC-1011-J1900,PPC-1011-J4125
11.6 inch
PPC-1211-J1900,PPC-1211-J4125
15.6 inch
PPC-1511-J1900,PPC-1511-J4125,PPC-1511-J6412,PPC-1511-i5 6200U,PPC-1511-i3 8145U
17.3 inch
PPC-1711-J1900,PPC-1711-J4125,PPC-1711-J6412,PPC-1711-i5 6200U,PPC-1711-i3 8145U
18.5 inch
PPC-1911-J1900,PPC-1911-J4125,PPC-1911-J6412,PPC-1911-i5 6200U,PPC-1911-i3 8145U
21.5 inch
PPC-2111-J1900,PPC-2111-J4125,PPC-2111-J6412,PPC-2111-i5 6200U,PPC-2111-i3 8145U
For Android:
10.1 inch
PPC-1021-RK3566,PPC-1021-RK3568 ,PPC-1021-RK3599
15.6 inch
PPC-1521-RK3566,PPC-1521-RK3568,PPC-1521-RK3599
21.5 inch
PPC-2121-RK3566,PPC-2121-RK3568 ,PPC-2121-RK3599
10.1 inch
PPC-1011-J1900,PPC-1011-J4125
11.6 inch
PPC-1211-J1900,PPC-1211-J4125
15.6 inch
PPC-1511-J1900,PPC-1511-J4125,PPC-1511-J6412,PPC-1511-i5 6200U,PPC-1511-i3 8145U
17.3 inch
PPC-1711-J1900,PPC-1711-J4125,PPC-1711-J6412,PPC-1711-i5 6200U,PPC-1711-i3 8145U
18.5 inch
PPC-1911-J1900,PPC-1911-J4125,PPC-1911-J6412,PPC-1911-i5 6200U,PPC-1911-i3 8145U
21.5 inch
PPC-2111-J1900,PPC-2111-J4125,PPC-2111-J6412,PPC-2111-i5 6200U,PPC-2111-i3 8145U
For Android:
10.1 inch
PPC-1021-RK3566,PPC-1021-RK3568 ,PPC-1021-RK3599
15.6 inch
PPC-1521-RK3566,PPC-1521-RK3568,PPC-1521-RK3599
21.5 inch
PPC-2121-RK3566,PPC-2121-RK3568 ,PPC-2121-RK3599
Drawing
