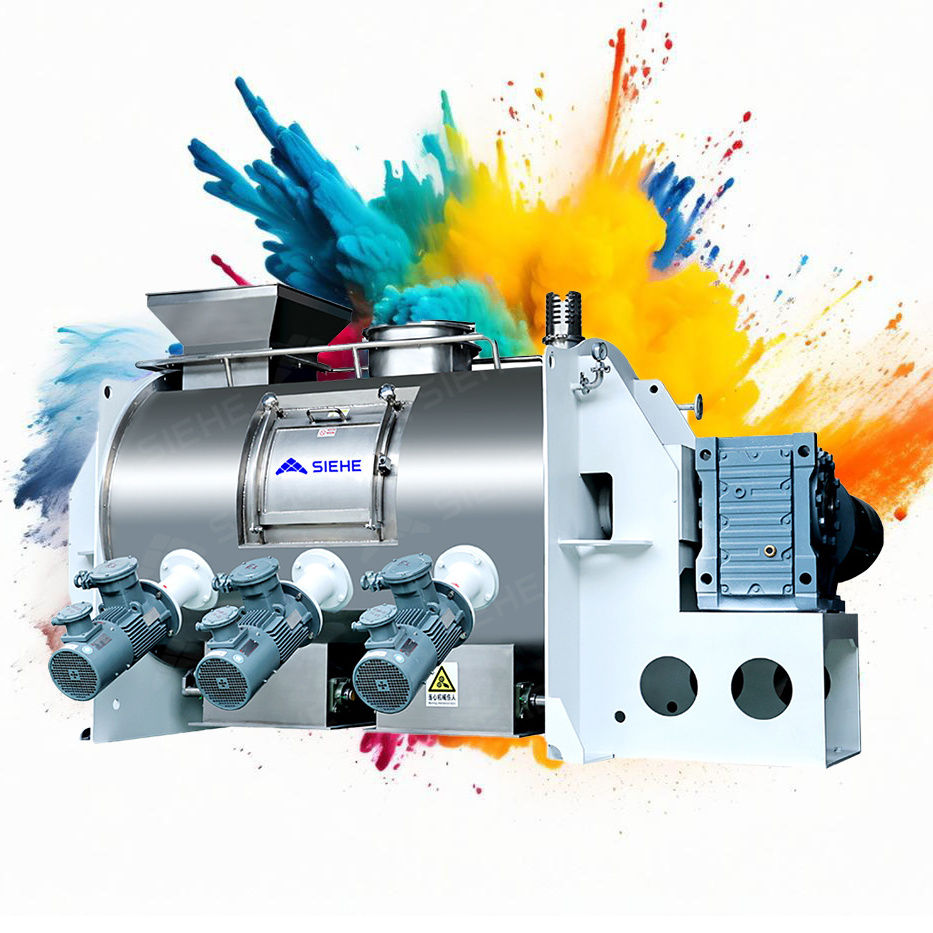

SIEHE Chemical Horizontal Mixer Dry Powder Blender Mixing Machine Stainless Steel Fertilizer Mixer Machine

SIEHE Chemical Horizontal Mixer Dry Powder Blender Mixing Machine Stainless Steel Fertilizer Mixer Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $7000

≥5 Sets

US $6500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 600 KG

Place of Origin:: Shanghai, China

Brand Name:: SIEHE

Voltage:: 220-600V

Dimension(L*W*H):: Depending

Power (kW):: 15 kW

Marketing Type:: New Product 2024

Features:: Crash down aggomerates

Motor brand:: ABB/SIEMENS/TECO/SEW

Bearing:: NSK/SKF

Inverter:: DANFOSS/SCHNEIDER/DELTA

Electric component:: SCHNEIDER/DELIXI

Electric Control:: Button/PLC

Explosion proof:: ATEX

Vacuum drying:: Optional

Heavy duty start:: Optional

Cleaning door:: Optional

Quick Details

Barrel Volume (L):: 120

Max. Loading Volume (L):: 110 L

Range of Spindle Speed(r.p.m):: 0 - 65 r.p.m

Weight (KG):: 600 KG

Place of Origin:: Shanghai, China

Brand Name:: SIEHE

Voltage:: 220-600V

Dimension(L*W*H):: Depending

Power (kW):: 15 kW

Marketing Type:: New Product 2024

Features:: Crash down aggomerates

Motor brand:: ABB/SIEMENS/TECO/SEW

Bearing:: NSK/SKF

Inverter:: DANFOSS/SCHNEIDER/DELTA

Electric component:: SCHNEIDER/DELIXI

Electric Control:: Button/PLC

Explosion proof:: ATEX

Vacuum drying:: Optional

Heavy duty start:: Optional

Cleaning door:: Optional

Product Introduction

Horizontal Plough Mixer is a Germany-technical late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. The agitator consists of multi-group of plough and fly-cutter which works together to mixing, smash, and dispersing materials. It is widely used in the mixing of powder=powder, powder-liquid and powder-particles, especially for the materials which may get aggregation during mixing. Liquid can be sprayed into powders. Vacuum system and drying system are also in option.

【Materials Specific Gravity】	≤5g/cm³
【Production Capacity】	50-30,000L
【Application Industry】	Suitable for the mixing of food, pesticide, dye, chemical industry, plastic, lithium battery, ceramic, chemical fertilizer,rubber, mortar and etc.
【Applicable Materials 】	Powders with fluidity whose specific gravity is up to 5g/cm³, liquid content is up to 20%, such as flavoring, pesticide, reactive dyes, water-free dirt, lithium cobalt oxides battery material and etc.

MIXING AGITATOR STRUCTURE

Plough type agitator used;

With fly cutters to break the cakes during mixing;

Plough agitator and fly cutter
with high speed,with higher mixing efficiency

LAB USE HORIZONTAL PLOUGH MIXER

50L design volume

Electrical control system integrated;
With liquid spray tank.

MIDDLE BATCH HORIZONTAL PLOUGH MIXER

1000L-5000 Design volume

Can be customized with two discharge ports;

With side cleaning door.

LARGE CAPACITY HORIZONTAL PLOUGH MIXER

6000 - 30000L Design volume

All stainless steel materials mixer;
used in food industry.

Product Details

Rich Experience&Excellent Design Aptitude:
High sealing performance, vacuum system, heating device, all available;
Reliable Driving Device:
SIEMENS, ABB, SEW and K series spiral cone gear reducer with international brands products, output torque can be output by direct-combination, chain-wheel combination, hydraulic couplers and etc.
High Efficient Mixing Device:
Plough head with removable design to adjust the gap between the agitator and mixing barre. Surface treatment includes surface carburizing/nitriding, heat treatment, tungsten carbide spray and etc.
Main Shaft agitator:
Traditional plough, serration plough, scraper plough; fly-cutter: multi-plate cross cutter, dual-plate lotus cutter and other customized cutters.
