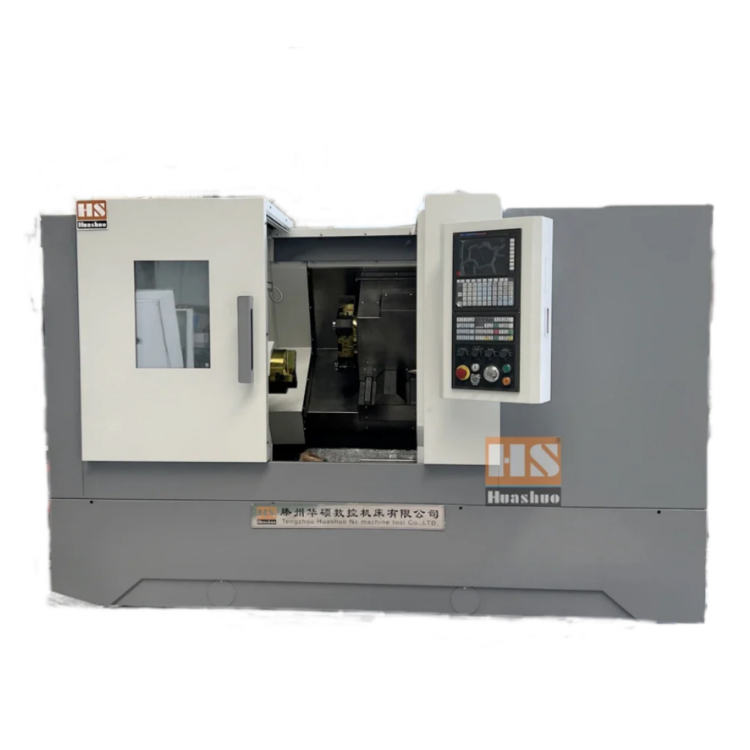

Features：
1 hydraulic chuck,2 hydraulic tailstock,3, 12-position turret,4GSK system
- Product Details
- {{item.text}}
Quick Details
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
3000
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
550 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
4000*2200*2200 mm
-
Brand Name:
-
HUASHUO
-
Model Number:
-
TCK50
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
3650
-
Machine Type:
-
Slant Lathe Machine
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
500
-
Year:
-
2023
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
3000
-
Travel (X Axis)(mm):
-
200 mm
-
Travel (Z Axis)(mm):
-
550 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
4000*2200*2200 mm
-
Brand Name:
-
HUASHUO
-
Model Number:
-
TCK50
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
3650
-
Machine Type:
-
Slant Lathe Machine
Main technical parameters of the mchine tool:
|
Machine tool model
|
Unit
|
TCK50
|
|
Diameter of large turn on the bed
|
mm
|
Φ500
|
|
Diameter of slalom
|
mm
|
Φ400
|
|
Processing length
|
mm
|
500
|
|
Standard chuck specifications
|
inches
|
8″
|
|
The X axis stroke
|
mm
|
200
|
|
The Z axis stroke
|
mm
|
550
|
|
Spindle speed
|
rpm
|
4200rpm Spindle unit structure
|
|
Spindle speed series
|
|
Servo variable speed
|
|
Spindle end code
|
|
A2-6
|
|
Main shaft drawpipe inner diameter
|
mm
|
Φ65
|
|
Fast moving speed
|
m/min
|
22
|
|
Cutting feed rate
|
mm/min
|
1-15000
|
|
Motor torque in X/Z direction
|
NM
|
8/8（X To take the brake）
|
|
Spindle motor power
|
KW
|
M15
|
|
Tool rod cross section
|
mm
|
25×25
|
|
Diameter of boring tool rod
|
mm
|
Φ32
|
|
Number of tool tower positions
|
|
8 points
|
|
Hydraulic tailseat stroke
|
mm
|
350
|
|
Taper of tailstock sleeve
|
Morse
|
MT5#
|
|
Tailseat sleeve travel
|
mm
|
95
|
|
X/Z directional bidirectional positioning accuracy
|
mm
|
0.016/0.02
|
|
X/Z direction repeated positioning accuracy
|
mm
|
0.006/0.006
|
|
Total power capacity
|
KVA
|
20
|
|
Cutting tank capacity
|
L
|
90
|
|
Overall dimensions (length x width x height）
|
mm
|
3450×1600×1700
|
|
The weight
|
KG
|
3800
|
|
Form of rail movement
|
|
Line rail
|
|
The name of the
|
specifications
|
Quantity
|
Brand
|
Production Place
|
|
Control system
|
The new generation of 22
|
1set
|
TAIWAN
|
TAIWAN
|
|
Spindle unit
|
Φ200
|
1set
|
TAIWAN
|
TAIWAN
|
|
The knife tower
|
12 station hydraulic tool tower motor (15 KW)ic tool tower
|
1set
|
SANHE
|
TAIWAN
|
|
Spindle motor
|
Servo main motor (15 KW)
|
1set
|
TAIWAN
|
TAIWAN
|
|
guide
|
Linear guide 35
|
1set
|
SHANGYINNNN
|
TAIWAN
|
|
Ball screw
|
X3210，z3210
|
1set
|
SHANGYIN
|
TAIWAN
|
|
Automatic lubrication
|
|
1set
|
|
CHINA
|
|
Hydraulic station
|
50 l three way
|
1set
|
|
Nanjing
|
|
Hydraulic chuck
|
Hollow 8 "Jia he
|
1set
|
|
CHINA
|
|
The hydraulic oil cylinder
|
Hollow 8"
|
1set
|
|
CHINA
|
|
Hydraulic tailstock
|
Morse 5
|
1set
|
|
CHINA
|
|
Cooling pump
|
750w
|
1set
|
|
CHINA
|
|
Thermal/electrical box
|
Di ao te
|
1set
|
|
CHINA
|
|
Inspection items
|
Standard tolerance (mm)
|
|
Periodic axial channeling of the spindle
|
0.005
|
|
The spindle chuck locates the radial runout of the cone surface
|
0.005
|
|
The saddle moves the spindle and the tail frame top axis
|
|
0.025
|
|
|
The rotary tool holder moves laterally against the
|
|
0.010/100
|
|
|
|
repeated positioning accaracy
|
X：±0.003 Z：±0.005
|
|
|
|
Positioning accuracy B
|
X：0.01 Z：0.01
|
|
|
Precision car external roundness
|
|
0.003
|
|
|
Consistency of diameter
|
|
0.01/150
|
|
|
flatness
|
|
0.013/φ200
|
|
|
Thread pitch product error
|
|
0.010/50
|
|
|
Surface roughness
|
|
Ra1.6μm
|
|
