Type: 0-10V rotary panel dimmer
Model: BQ-PTDIM
Input: 85 ~ 265 VAC
Output: 85 ~ 265 VAC
Output Signal: 0-10V(20mA)
Output Current: Max 3.0A(AC)
Input Signal: Rotary Knob
Dimming Range: 0-100%
CE EMC LVD SAA
Dimension: 85.8*85.8*43.7 mm Warranty: 5 Years
- Product Details
- {{item.text}}
Quick Details
-
Product Weight（kg）:
-
0.14
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
boqi
-
Connection Mode:
-
Wiring
-
Name:
-

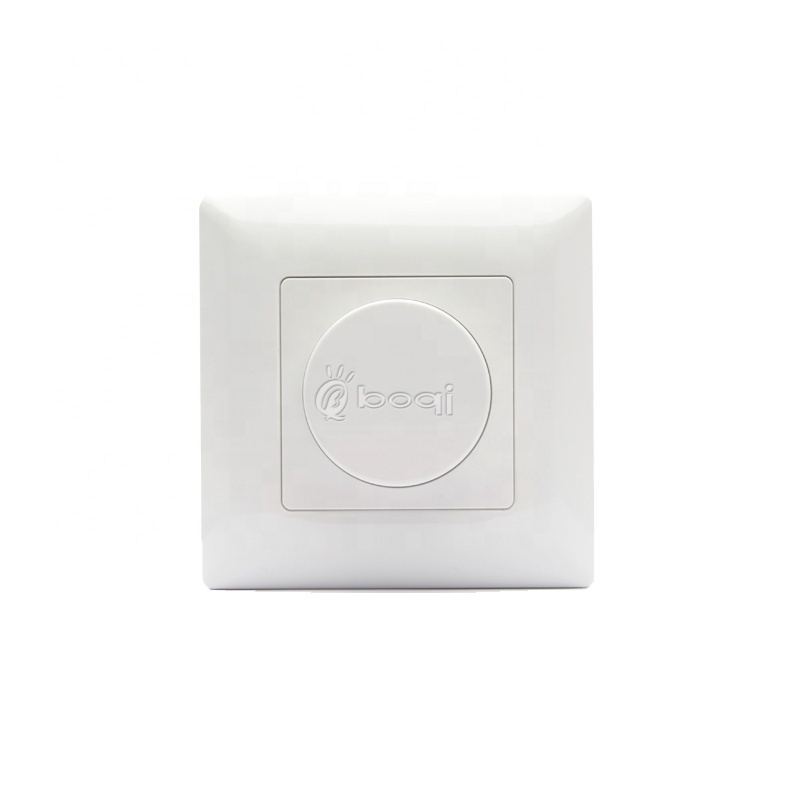

Rotary Panel 0-10V Dimmer
-
Model:
-
BQ-PTDIM
-
Material:
-
PCB+PC
-
Input Voltage:
-
AC100V-240V
-
Output Voltage:
-
AC100-240V
-
Output Signal:
-
0-10V(20mA)
-
Output Current:
-
Max. 3.0A(AC)
-
Dimming Range:
-
0-100%
-
Certificates:
-
CE SAA EMC LVD ROHS
-
Dimension:
-
86x86x48mm
Quick Details
-
Warranty(Year):
-
5-Year
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
600W
-
Product Weight（kg）:
-
0.14
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
boqi
-
Connection Mode:
-
Wiring
-
Name:
-
Rotary Panel 0-10V Dimmer
-
Model:
-
BQ-PTDIM
-
Material:
-
PCB+PC
-
Input Voltage:
-
AC100V-240V
-
Output Voltage:
-
AC100-240V
-
Output Signal:
-
0-10V(20mA)
-
Output Current:
-
Max. 3.0A(AC)
-
Dimming Range:
-
0-100%
-
Certificates:
-
CE SAA EMC LVD ROHS
-
Dimension:
-
86x86x48mm
Products Description
Own Design boqi 0-10V Dimmer
Own Private Model Design
Features
Output 0/1-10V signal, drive 0/1-10V controller or dimmable driver.
Rotate to adjust brightness.
Reliable and stable switch and dimming control without flicking.
256 levels brightness adjustment
Rotate to adjust brightness.
Reliable and stable switch and dimming control without flicking.
256 levels brightness adjustment
0-10V Dimmer Wiring Diagram
Step-by-Step Wiring Guide
1. Disconnecting Power: Safety first. Ensure the power is off at the breaker.
2. Connecting the Power Wires: Connect the dimmers and driver’s input wires to your power source. Usually, this involves connecting brown to brown (live), blue to blue (neutral), and green to green/yellow (ground).
3. Wiring the Dimming Control Wires: Connect the dimming wires from the driver to the dimmer switch. There are two pairs of wires on one side: one for LED and one for DIM control. Ensure the correct DIM control wires and the positive (+) and negative (-) wires of the LED Driver match the light. Ensure a secure connection.
4. Attaching the LED Light: Connect the driver with the light, be careful to connect the the positive (+) and negative (-) wires. Ensure the wires from the LED driver are for light. Please see the 0-10V wiring diagram as follows.
5. Grounding the Driver: Always connect the ground wire to prevent electrical hazards.
6. Troubleshooting Common Wiring Issues: If you encounter problems like flickering, double-check your connections and compatibility.
7. Testing the Installation: Once everything is connected, turn the power back on and test the dimming functionality. Adjust as needed.
1. Disconnecting Power: Safety first. Ensure the power is off at the breaker.
2. Connecting the Power Wires: Connect the dimmers and driver’s input wires to your power source. Usually, this involves connecting brown to brown (live), blue to blue (neutral), and green to green/yellow (ground).
3. Wiring the Dimming Control Wires: Connect the dimming wires from the driver to the dimmer switch. There are two pairs of wires on one side: one for LED and one for DIM control. Ensure the correct DIM control wires and the positive (+) and negative (-) wires of the LED Driver match the light. Ensure a secure connection.
4. Attaching the LED Light: Connect the driver with the light, be careful to connect the the positive (+) and negative (-) wires. Ensure the wires from the LED driver are for light. Please see the 0-10V wiring diagram as follows.
5. Grounding the Driver: Always connect the ground wire to prevent electrical hazards.
6. Troubleshooting Common Wiring Issues: If you encounter problems like flickering, double-check your connections and compatibility.
7. Testing the Installation: Once everything is connected, turn the power back on and test the dimming functionality. Adjust as needed.
Application
The 0-10V dimmer adjusts light levels in LED and fluorescent lights. It sends a low voltage signal to change brightness. This dimmer is great for saving energy and setting the mood in rooms. It's used in homes, offices, and public spaces for better light control. With it, you can make lights dimmer for cozy settings or brighter for work. It's easy to use and helps cut down electricity costs.
* Residential Lighting
* Commercial Spaces
* Hospitality Industry
* Architectural and Decorative Lighting
* Stage and Event Lighting
* Art Galleries and Museums
* Industrial Settings
* DIY Projects
* Commercial Spaces
* Hospitality Industry
* Architectural and Decorative Lighting
* Stage and Event Lighting
* Art Galleries and Museums
* Industrial Settings
* DIY Projects
What Is A 0-10V Dimmer?
A 0-10V dimmer is a simple tool that changes light brightness. It uses a low voltage signal, between 0 and 10 volts, to adjust how bright or dim a light is. When the voltage is close to 0 volts, the light is very dim or even off. As the voltage goes up, towards 10 volts, the light gets brighter.
This type of dimmer is often used with LED and fluorescent lights. It's very efficient and gives smooth control over the lighting level. Unlike some dimmers that might cause flickering or buzzing, a 0-10V dimmer keeps the light stable and quiet, no matter how dim or bright you make it.
To use a 0-10V dimmer, it needs to be connected between the light and its power source. There are two extra wires for the dimming control, besides the regular power wires. One wire carries the low voltage signal, and the other is a ground wire. Turning the dimmer up or down sends a different voltage to the light, changing its brightness.
One big advantage of 0-10V dimmers is that they are very predictable and precise. You can set the exact light level you want, and the dimmer will keep it there. This is great for creating the perfect mood in a room or for tasks that need specific lighting.
Also, using a 0-10V dimmer can save energy. By dimming lights, especially in areas that don't always need full brightness, you can reduce electricity use. This not only saves money on energy bills but also helps the environment by reducing demand for power.
In summary, a 0-10V dimmer is a reliable, efficient way to control light brightness. It works well with modern lights, provides precise control, and helps save energy. Whether for home, office, or public spaces, it's a smart choice for managing lighting.
FAQ For
1. What is a 0-10V dimmer?
It's a device that controls light brightness using a low voltage signal.
2. Can I use it with any light?
It works best with LED and fluorescent lights designed for 0-10V dimming.
3. How does it save energy?
By dimming lights, it reduces electricity use, saving energy and money.
4. Is it easy to install?
Yes, but it might need extra wiring for the low voltage control. An electrician can help.
5. Does it work with smart homes?
Yes, it can integrate with smart home systems for remote control.
6. Can I set the exact brightness I want?
Yes, it allows precise control over lighting levels from very dim to fully bright.
7. Will it work outdoors?
If it's rated for outdoor use, yes. Check the product specifications.
8. Do I need special lights?
Yes, lights must be compatible with 0-10V dimming for it to work properly.
9. Can it control multiple lights?
Yes, as long as the total load is within the dimmer's capacity.
10. Will it make my lights flicker?
No, it provides smooth dimming without flickering or buzzing.
