Quick Details
-
Model Number:
-
T501CL
-
Mechanical Life:
-
50000
-
IP level:
-
IP67
-
Function:
-
ON-OFF-ON
-
Terminal:
-
Embedded screws/bolt/Step Base Screw
-
Waterproof:
-
IP67
-
Material:
-
Metal
-
Housing Color:
-
Black Body
-
Application:
-
Machinery, automobiles, ships, aerospace, electrical panels
-
Rating:
-
15A 250VAC / 20A 125VAC
-
Color:
-
Black Color
-
Electrical life:
-
20000 Cycles Min
Quick Details
-
Max. Voltage:
-
125V, 250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TOOWEI
-
Model Number:
-
T501CL
-
Mechanical Life:
-
50000
-
IP level:
-
IP67
-
Function:
-
ON-OFF-ON
-
Terminal:
-
Embedded screws/bolt/Step Base Screw
-
Waterproof:
-
IP67
-
Material:
-
Metal
-
Housing Color:
-
Black Body
-
Application:
-
Machinery, automobiles, ships, aerospace, electrical panels
-
Rating:
-
15A 250VAC / 20A 125VAC
-
Color:
-
Black Color
-
Electrical life:
-
20000 Cycles Min
Product Overview

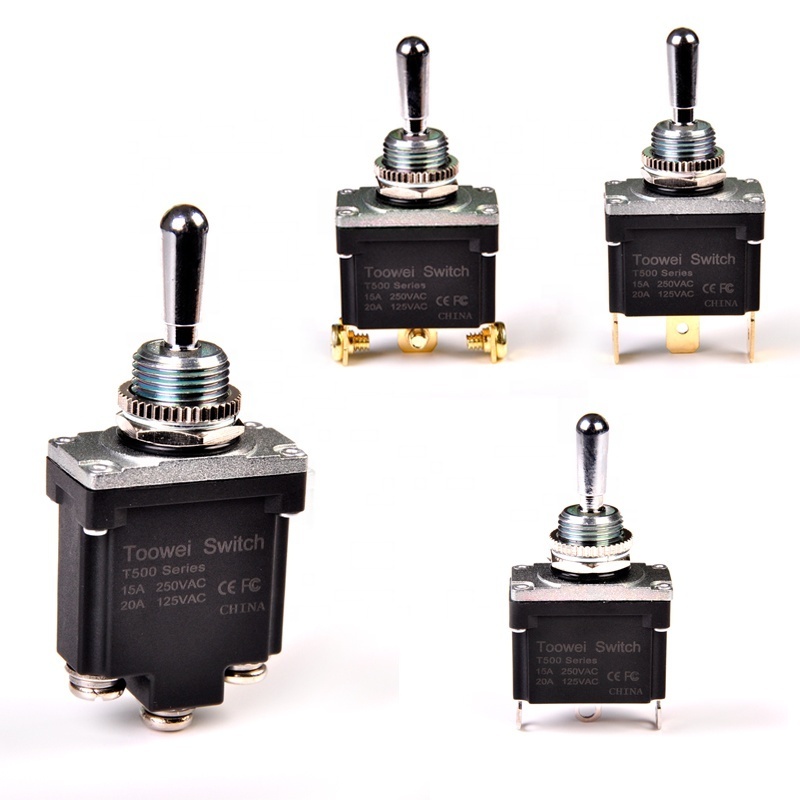

T501CL waterproof toogle switch
The rated value of T500 series button switch is 15A, 250V, 20A, 125V, which is applicable to AC 50Hz/60Hz. This switch is used as a switching mode and reset mode in the circuit. The terminal block has screws, and the waterproof grade reaches IP67. It has the functions of dust prevention, water prevention and oil prevention.
FEATURES AT A GLANCE
Small and exquisite, high-quality, durable, waterproof, and affordable
Manipulating the basket
excavator
Generator Parts
PRODUCT SPECIFICATIONS
Rating value：15A 250VAC 20A 125VAC
Mechanical life: ≥50,000 operationsone-shot circuit
≥50,000 operationsone continuous circuit
Electrical life：：≥20,000 operations
Operating force：≤20N
Contact resistance：100MΩ(least）
Ambient temperature：-25℃~+80℃
Humidity：<85%Rh
Dielectric strength：1,000V RMS (least)
Vibration：10 to 55Hz 1.5mm double amplitude
Model Description
Product size
Model Selection Table
PRODUCT CONFIGURATION
