Quick Details
-
Voltage:
-
220V50HZ/380V50HZ
-
Dimension(L*W*H):
-
75*70*140cm
-
Power (kW):
-
7.5Kw
-
Weight (KG):
-
200 KG
-
Ratio of raw material:
-
1:1
-
Max working pressure:
-
15Mpa
-
Max output:
-
8kg/min
-
Max heating hose length(Optional):
-
45M
-
Voltage(Optional):
-
220V50HZ/380V50HZ
-
Pneumatic source:
-
0.5-0.8Mpa 1m3/min
-
Certification:
-
ISO/CE
-
Power(W):
-
7.5kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JHBW
-
Machine Type:
-
Foam machine
-
Voltage:
-
220V50HZ/380V50HZ
-
Dimension(L*W*H):
-
75*70*140cm
-
Power (kW):
-
7.5Kw
-
Weight (KG):
-
200 KG
-
Ratio of raw material:
-
1:1
-
Max working pressure:
-
15Mpa
-
Max output:
-
8kg/min
-
Max heating hose length(Optional):
-
45M
-
Voltage(Optional):
-
220V50HZ/380V50HZ
-
Pneumatic source:
-
0.5-0.8Mpa 1m3/min
-
Certification:
-
ISO/CE
-
Power(W):
-
7.5kw

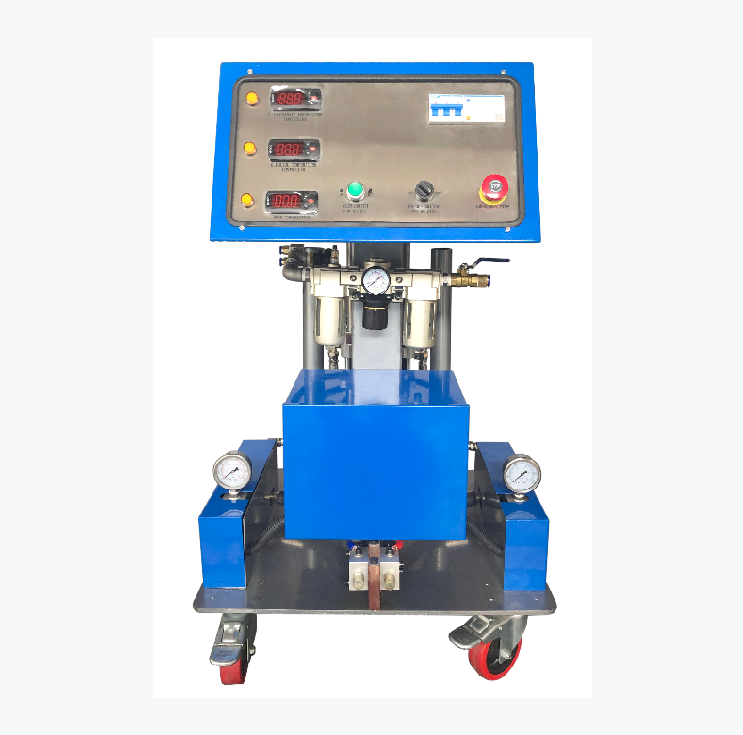

JHBW-A50 Pu injection & spraying machine
1. Polyurethane pu foam spray on wall & roof,
2. Polyurea spray for waterprrof & anticorrosion,
3. Construction seam filling,
4. Cold storage spray insulation,
5. Tank and pipe spray insulation,
6. Polyurethane foam for package cushioning,
7. Car roof spray insulation,
8. Highway, railway, automobile, watercraft, mining petroleum, electrical industry, food industry etc.
|
Specifications: JHBW-A50
|
|
| The ratio of raw material | 1:1 |
| Viscosity range of raw material | 200-1000CPS(under working temperature) |
| Max working pressure | 15MPa |
| Max fluid temperature | 80°C |
| Max output | 8kg/min |
| Heater power | 2500W×2 |
| Drive model | Full pneumatic |
| Spray gun clean | Self-clean by air |
| Voltage (Optional) | Customized |
| Pneumatic source | 0.5-0.8MPa 1m³/min |
|
Standard Configuration:
|
|
|
JHBW-A50 mainframe
|
1 set
|
|
JHBW-P2 spray gun
|
1 pc
|
|
Transfer pump
|
2 pcs
|
|
Heated hose (Standard)
|
15m
|
|
Max hose length (Optional)
|
45m
|
|
Transfer pump hose
|
2 pcs
|
|
Air pipe
|
1 set
|
|
Spare parts and tools
|
1 set
|
| Transport Parameter: | |
| Package size (L×W×H) | 70×75×140cm |
| Net weight/Gross weight | 160kg/190kg |
1. JHBW-A50 has passed CE, ISO9001 Quality Management system certification, completely independent intellectual property design and production, has declared a number of national invention patents.
2. This equipment small size, light weight, low failure rate, easy to move, easy to operate.
3. The pneumatic reversing control assembly, the structure is simple, the performance is stable, breakthrough the traditional electromagnetic induction commutation way, truly realizes can work in the electricity-free environment, the extension electrical element 50% service life.
4. The heater uses a special frequency control device, the temperature sensor real-time acquisition of temperature signals, so that the heater is in good control.
5. The new type booster pump uses the high quality stainless steel manufacture, has the corrosion resistance, and abrasion resistance characteristic, lengthens 50% service life.
6. This equipment has the overheating protection device, simultaneously uses the famous import component, causes the equipment performance to be more stable and reliable.
7. Equipped with emergency switching system, can be the quickest response to emergency situations.
8. Stop reset function can effectively protect the booster pump shaft.
9. Installation of front filter, can effectively filter impurities in raw materials, reduce the occurrence of gun blocking.
10. The equipment operation panel humanized design, makes the machine very easy to operate.
Jinan JingHuabangwei Polyurethane Equipment Co., Ltd
Founded in 2011, Jinan JingHuabangwei Polyurethane Equipment Co., Ltd. is a manufacturer of polyurethane and polyurea equipment integrating R&D, production, sales and after-sales maintenance services. The company has strong R&D and production experience. The machine has passed the national CE certification and ISO 9001 certification, and the quality of the products is guaranteed. At present, the company has developed into a professional manufacturer of polyurethane and polyurea equipment with global competitiveness and core competitiveness in more than 80 countries and regions around the world.
The company specializes in the research and development and production of polyurethane spraying, filling equipment, polyurea spraying equipment. On this basis, the products are divided into pneumatic vertical, horizontal equipment, hydraulic equipment and other professional products suitable for different industries. Products are suitable for: construction, building materials, automotive, environmental protection, waterproof, anti-corrosion, light industry, chemical, electronic information, transportation, equipment, textile, medical, sports, defense, aerospace, thermal, biotechnology, warehousing, transportation, Packaging, handicrafts and many other industries.
Over the years, we have gathered a group of outstanding R&D and mechanical design talents. Based on our accumulated experience, we have created polyurethane and polyurea equipment suitable for modern production and construction processes. All employees of Jinghua Bangwei adhere to the corporate philosophy of “Quality First, Customer First”, regard product quality as the life of the company, and strive to build a world famous brand!
Customer case:
1. We packed the machine in the plywood carton, to make sure it safety transportation.
2. We support shipping by ocean, air, truck and express, please consult the shipping cost.
3. One year warranty, any broken parts will be sent by express free,
4. We offer 24 hours online sevices (Skype, WhatsApp, WeChat, Telphone),
5. We have two days free training in the factory,
6. Free video training and maintenance,
7. Engineers on-site service (some countries and regions).
8. For more information about the machine, please contact:
WhatsApp/WeChat/Skype: +86-15866617722
E-mail:
