Quick Details
-
Product name:
-
H frame gantry hydraulic press for workshop 40 ton
-
tonnage:
-
40 ton
-
Keyword:
-
gantry hydraulic press
-
span length:
-
500mm
-
Type:
-
vertical
-
Application:
-
metal processing
-
Function:
-
Correction
-
tablesize:
-
400*460mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Power Source:
-
Hydraulic
-
Weight:
-
370kg
-
Product name:
-
H frame gantry hydraulic press for workshop 40 ton
-
tonnage:
-
40 ton
-
Keyword:
-
gantry hydraulic press
-
span length:
-
500mm
-
Type:
-
vertical
-
Application:
-
metal processing
-
Function:
-
Correction
-
tablesize:
-
400*460mm

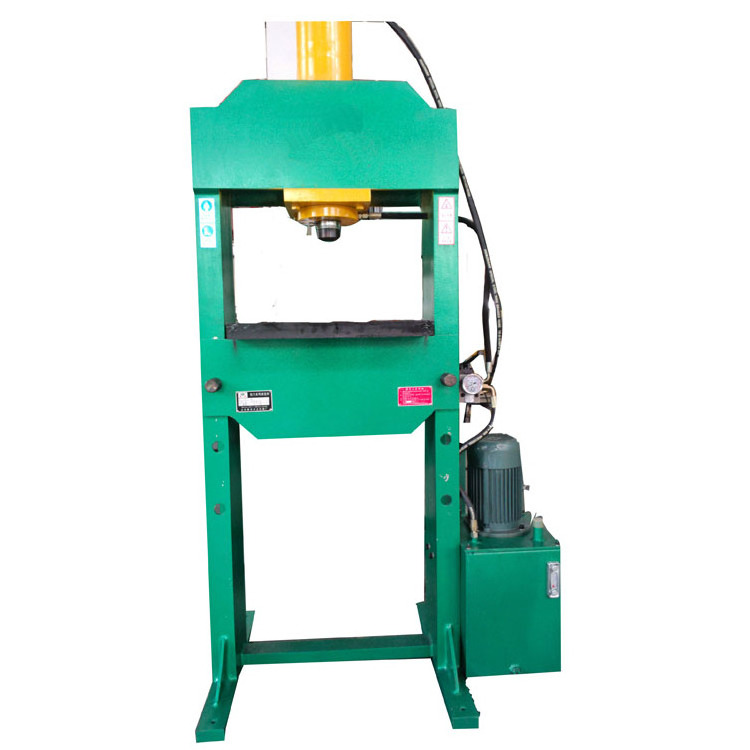

H Frame Gantry Hydraulic Press For Workshop 40 Ton
Specifications:
H frame gantry hydraulic press for workshop 40 ton can be customized different tonnage different workstations according to customer request.
H frame gantry hydraulic press for workshop 40 ton, the machine parts can be assembled, disassembly, straightening, calendering, stretching, bending, punching and other work, the real realization of a multi-purpose machine. Machine table can move up and down, greatly expanding the machine opening and closing height, the use of more convenient.
|
Model |
YM-40tA |
YM-40tB |
|
Max liquid working pressure (Mpa) |
23 |
23 |
|
Stroke (mm) |
200 |
200 |
|
Span length (mm) |
500 |
500 |
|
Working table size (mm) |
400x460 |
400x460 |
|
Motor power (kw) |
3 |
5.5 |
|
Displacement oil pump (ml/r) |
5 |
10 |
|
Descent speed (mm/s) |
6.5 |
14 |
|
Return speed (mm/s) |
9.5 |
19 |
Appliance field :
H frame gantry hydraulic press for workshop 40 ton is suitable for metal and non-metallic materials, the pressing process can also be used for plastic molding of the material. For example, watches, metal products, bicycles, motorcycles, tableware, electrical appliances, rubber, ceramics, powder metallurgy, etc.
Company profile
Ding Run forging professional engaged in H frame gantry hydraulic press for workshop 40 ton and other hydraulic machines,CNC lathes and radial drilling machine, friends from all walks of life at home and abroad affirmed, welcome to visit our company.
Packing & Delivery
Precise packaging ensures that H frame gantry hydraulic press for workshop 40 ton is safely transported to your destination
