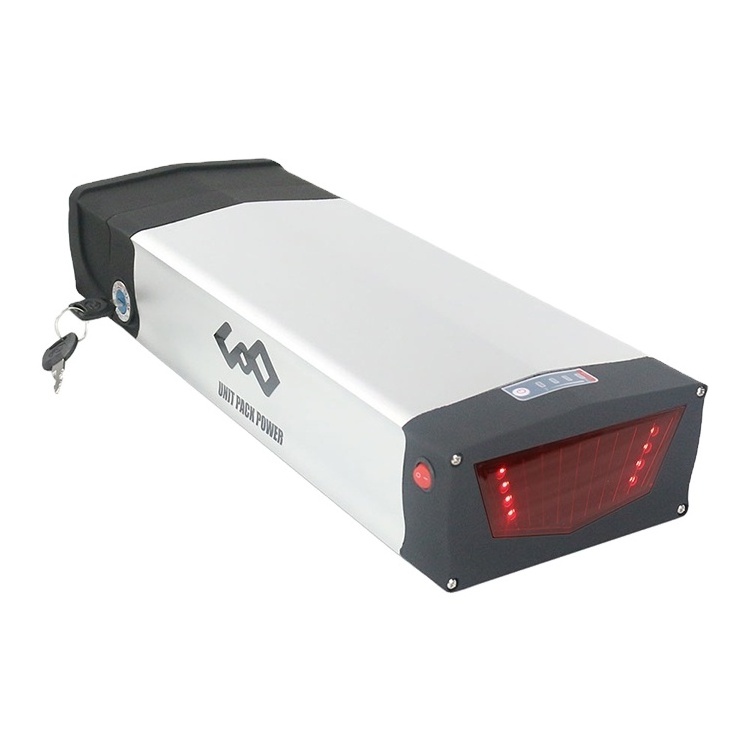

Customized Rear Rack Ebike Battery Electric Bicycle E Bike Recharge Battery Pack 36V 48V 52V 13ah 20ah 31.5ah Lithium Battery

Customized Rear Rack Ebike Battery Electric Bicycle E Bike Recharge Battery Pack 36V 48V 52V 13ah 20ah 31.5ah Lithium Battery

FOB Reference Price: Get Latest Price

≥1 Pieces

US $137

≥10 Pieces

US $127

≥100 Pieces

US $117

≥500 Pieces

US $97

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Unitpackpower

Model:: UPP-S045 Rear Rack bicycle li-ion battery

Application:: 250w/350w/500w/750w/1000w Electric Bike/Scooter

Product name:: Rear Rack E Bike Battery Pack

BMS:: 20A/30A Continuous BMS

Charge voltage:: 42v

Discharge cut off voltage:: 28v

Warranty:: 1 Years Germany Local Repair

Cell:: 18650 Chinese A Grade

Certification:: CE/UN38.3/MSDS

Cycle life:: 800-1000 Times

Quick Details

Type:: Lithium Battery

Place of Origin:: China GuangDong

Model Number:: S045 48V 20AH

Brand Name:: Unitpackpower

Model:: UPP-S045 Rear Rack bicycle li-ion battery

Application:: 250w/350w/500w/750w/1000w Electric Bike/Scooter

Product name:: Rear Rack E Bike Battery Pack

BMS:: 20A/30A Continuous BMS

Charge voltage:: 42v

Discharge cut off voltage:: 28v

Warranty:: 1 Years Germany Local Repair

Cell:: 18650 Chinese A Grade

Certification:: CE/UN38.3/MSDS

Cycle life:: 800-1000 Times

Customized Rear Rack Ebike Battery 36V 48V 52V 13ah 20ah 31.5ah Electric Bicycle e Bike Recharge Battery Pack

Product Description

Specifications

1. Detail Specifications
Model No.	S045 Rear Rack Type Ebike Battery
Battery Material	Li(NiCoMn)O2 18650
Nominal Voltage	36V	36V	36V	36V
Nominal Capacity	15Ah	20Ah	25Ah	35Ah
Battery Cells	FST 2500mAh	FST 2500mAh	FST 2500mAh	INR18650-35E
Combination	10S 6P	10S 8P	10S 10P	10S 10P
BMS	20A	20A	20A	20A
Fit Motor	36V 250W 350W 500W
Discharge Cut-off Voltage	28V	28V	28V	28V
Charge Cut-off Voltage	42V	42V	42V	42V
Standard Charge Current	2A	3A	3A	3A
Max Charge Current	3A	3A	3A	3A
2. Basic Data
Dimension	43016085mm
Battery Weight	4.8KG	5.8KG	6.8KG	6.8KG
Cycle life	about 800 times＞80%
Warranty	1~2 years with After- sale office in Germany&USA
Charging Temprature	0~45 Celsius
Discharging Temprature	-20~60 Celsius
Application	Electric bicycle/Escooter/Richshaw/Tricycle/Motor Cycle/City Bike/MTB
3. Packing List
Battery * 1pc
Charger * 1pc
Rack with Other Accessories*1 set

Charge Plug and Discharge Connector

1. Electric bicycle batteries with US EU UK AU charger AC plug, it will be matched as delivery country if without request.

2. There are 10 different kinds of electric bike battery discharge connectors available for you to choose, if without request
will shipping with 250mm naked cables.

Packaging & Shipping

Customized Packing is Acceptable.

Carton+bubble+foam

1. 1pc battery pack per box;

2. 4pcs boxes per carton,finally up to your quantity;

3. Our boxes meet export standards, Foam board ensures safe delivery of battery packs.

Shipping time for Your Reference:

We usually ship by our special way, because battery is dangerous goods. All batteries will be shipped to local country by air,and
will be delivered by UPS,Fedex,
DPD or other local express.

USA: About 7-12 days, free tax.
EU/UK : 8-15 days, free tax.
AU/New Zealand: 5-10 days. Free tax for AU and Non free tax for NZ.
Canada: 12-15 days, free tax.
Japan/ Korea/Singapore/Malaysia: 3-5 days, free tax.

Company Show

Shenzhen Unit Pack Power Technology Co.,Ltd.

We are specialized in producing Electric Bike battery, Medical Equipment battery, Power Tool battery, lithium ion battery pack, LiFePO4 battery pack, lithium polymer battery, battery charger, solar energy system, and so on for both consumer and industrial applications.

80% of our products are sold to Southeast Asia, Europe, America, Australia, the Middle East, Southeast Asia, Hong Kong, Taiwan, etc. In the recent years, our company has implemented a strict high quality management policy. Our company owns advanced equipment for battery research. There are outstanding engineers of quality management in our company.

Our products have passed ETL,CE,RoHs,REACH,MSDS,UN38.3 Certifications. Each member of our company looks forward to working with our worldwide customers with the greatest enthusiasm.

Based on equality and mutual benefits, we are aiming to establish long-term friendlybusinesses and to create a bright future together!

How to Choose Best Cells ?

Firstly we will choose the cells with 10 MV gap on Voltage, 20 MAH gap on Capacity.

Internal resistance gap should be controlled within 3 MΩ that would be best choice for us.

When Chinese battery cells is cycled for 800 times, there is 80% power left in battery cells. And imported cells have better performance than Chinese Cells.

So this is our lowest testing standards.
Better cells ensure good consistance of battery pack, we are doing it now !!

What's Our Advantage ?

Thousands of alibaba buyer are checking our quality, it is reliable and worth your believe.

Order process is simple, no need to wait manager, deputy manager, product manager ...etc to sign to agree our order.

3 after-sales centers and 3 warehouses repectively in USA, Germany and Australia that ensure good repair service . We accpet to stock batteries in our warehouse in advance and dropshipping.

500 packs of silver fish batteries were shipped to UK in Oct.

200 packs of hot selling batteries were shipped to Germany warehouse in Sep.

300 packs of rack batteries were shipped to the Top 5 B2C foreign platform in Shenzhen in Dec.

Our Service

1. Your inquiry related to our products rice will be replied in 24 hours. 2. Experienced staffs to answer all your enquires in fluent English. 3.We makethe OEM and ODM service for more than 5 years. And the Paypal accepted, 4.Protection of your sales area, ideas of design and all your private information. 5.No matter big order or small order , we will provide all the best quality , best service. 6.If our our products ave any problem that we caused, they will be sent free in the next order. After sale service 1.1 year warranty 2. We will replace the broken parts with new parts in the next in the next order 3. Choose the cheapest and safest shipping company 4. Track the order until you get the goods 5. Welcome any feedback and advice for our products. Extra service 1. MOQ: Sample order is available 2. OEM: The larger the quantity the cheaper the price. 3. ODM: 100pcs, keep your design privately. And won’t supply it to others. 4. Provide designed package depend

UPP-FAQ

1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(00.00%),Oceania(00.00%),Western Europe(00.00%),Eastern
Asia(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),Eastern Europe(00.00%),South Asia(00.00%),Domestic
Market(00.00%),South America(00.00%),Southeast Asia(00.00%),Mid East(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Ebike Lithium Battery

4. why should you buy from us not from other suppliers?
6-Years experience in Manufacturing Lithium Battery, Polymer Battery, Lifepo4 Battery, Battery Packs for Electric Bike,
Motorcycle, Power Tools. Oversea warehouse and Sales-office, located in US, GER, AU, Offer after-sales service and urgent samples.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU, Express Delivery；
Accepted Payment Currency:USD,EUR,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English,Chinese,Spanish,German,French,Russian,Korean,Italian
