High Quality Hydraulic Hose Socket China Supplier
High Quality Hydraulic Hose Socket China Supplier
High Quality Hydraulic Hose Socket China Supplier
High Quality Hydraulic Hose Socket China Supplier
High Quality Hydraulic Hose Socket China Supplier
High Quality Hydraulic Hose Socket China Supplier
High Quality Hydraulic Hose Socket China Supplier
High Quality Hydraulic Hose Socket China Supplier

High Quality Hydraulic Hose Socket China Supplier

FOB Reference Price: Get Latest Price
≥3000 Meters
US $3
≥4000 Meters
US $2
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
R1
Product name:
Flexible Hydraulic Hose SAE R1/1SN
Material:
Rubber
Application:
Transport base fuel lubricating oil other mineral oils
Color:
Black
Certification:
ISO9001
Packing:
Woven Bag Wrapped
Sample:
Fee
Length:
20m 40m 50m 100m
Surface:
Smooth or Wrapped
Size:
1/4-2''

Quick Details

Processing Service:
Moulding, Cutting
Place of Origin:
Tianjin, China
Brand Name:
BNTFLEX
Model Number:
R1
Product name:
Flexible Hydraulic Hose SAE R1/1SN
Material:
Rubber
Application:
Transport base fuel lubricating oil other mineral oils
Color:
Black
Certification:
ISO9001
Packing:
Woven Bag Wrapped
Sample:
Fee
Length:
20m 40m 50m 100m
Surface:
Smooth or Wrapped
Size:
1/4-2''
Product Description
HYDRAULIC HOSE

DIN EN 853 1SN

STEEL WIRE BRAIDED HYDRAULIC HOSE
Extremely high and low temperature resistant steel wire braided hose DIN EN853 1SN
KEY ADVANTAGES
• Inner tube:oil resistant synthetic rubber
• Reinforcement:one braids of high tensile steel wire
• Cover:abrasion,ozone,weather and fire resistant synthetic rubber with blue color
• Special characteristics:extremely temperature resistance with long persistence and durability
• Continuous service temperature range : -65℃ F+300℃ F
• Applicable specs: EN 853 1SN

MAIN APPLICATIONS

The hydraulic hose range is dedicated to hydraulic systems and equipment in many different sectors, such as construction machines, mining, industrial processes, agriculture, road construction equipment, drilling, forestry machines, material handling and lifting, road transportation, marine and offshore, and many others. High pressure hydraulics is a means to transmit, control and distribute energy and power using a pressurised liquid, most often oil and water-based fluids, as a medium.
HOSE SIZE
增强层外径R.O.D
胶管最大外径O.D
最大工作压力
MAX W.P.
最小爆破压力
MIN B.P
最小弯曲半径
MIN B.R
长度
LENGTH
DN
DASH
mm
inch
m m
mm
Mpa
Mpa
mm
mm
6
-4
6.5±0.4
1/4˝
11.1
13.5
22.5
90.0
100
50/20
8
-5
8.1±0.4
5/16˝
12.6
15.0
21.5
86.0
115
50/20
10
-6
9.7±0.4
3/8˝
15.0
17.3
18.0
72.0
130
50/20
12.5
-8
12.9±0.6
1/2˝
18.1
20.5
16.0
64.0
180
50/20
16
-10
16.1±0.6
5/8˝
21.3
23.5
13.0
52.0
200
50/20
19
-12
19.2±0.6
3/4˝
25.2
27.7
10.5
42.0
240
50/20
25
-16
25.7±0.7
1˝
33.1
35.8
8.8
35.2
300
40/20

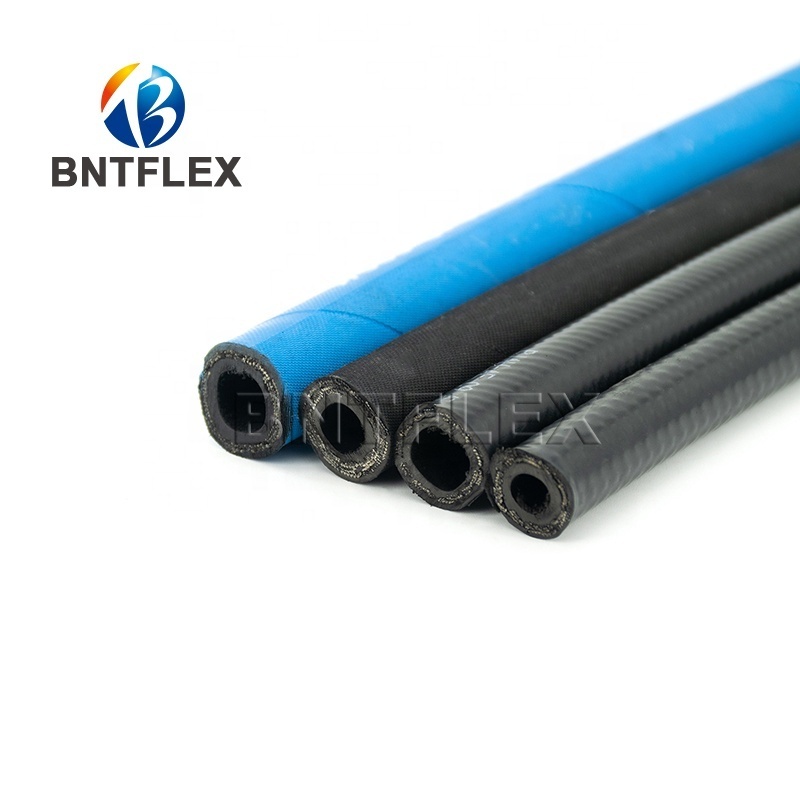

Detailed Images
STEEL WIRE BRAIDED HYDRAULIC HOSE DIN EN 853 1SN
• Inner tube:oil resistant synthetic rubber
• Reinforcement:one braids of high tensile steel wire• Cover:abrasion,ozone,weather and fire resistant synthetic rubber with blue color
•Special characteristics:extremely temperature resistance with long persistence and durability
•Continuous service temperature range: -65℃ F+300℃ F
•Applicable specs: Extremely high and low temperature resistant steel wire braided hose DIN EN853 1SN
STEEL WIRE BRAIDED HYDRAULIC HOSE DIN EN 853 1SN
• Inner tube:oil resistant synthetic rubber
• Reinforcement:one braids of high tensile steel wire• Cover:abrasion,ozone,weather and fire resistant synthetic rubber with blue color
•Special characteristics:extremely temperature resistance with long persistence and durability
•Continuous service temperature range: -65℃ F+300℃ F
•Applicable specs: Extremely high and low temperature resistant steel wire braided hose DIN EN853 1SN
STEEL WIRE BRAIDED HYDRAULIC HOSE DIN EN 853 1SN
• Inner tube:oil resistant synthetic rubber
• Reinforcement:one braids of high tensile steel wire• Cover:abrasion,ozone,weather and fire resistant synthetic rubber with blue color
•Special characteristics:extremely temperature resistance with long persistence and durability
•Continuous service temperature range: -65℃ F+300℃ F
•Applicable specs: Extremely high and low temperature resistant steel wire braided hose DIN EN853 1SN
Related Products
$10000 - $ 18000 Pieces
1 Pieces (MOQ)
$10000 - $ 17000 Pieces
1 Pieces (MOQ)
$10000 - $ 15000 Pieces
1 Pieces (MOQ)
Certificate
CE
BNTFLEX
CE
Packing&Shipping
Company Introduction
Dalian Barnett Flex Hydraulics Co., Ltd., Zhonghua West Road, Ganjingzi District, Dalian, Covers An Area Of 50 Acres And Has A Mechanical Processing Workshop, Finished Product Debugging Workshop, Mold Workshop, New Product Trial Center, Finished Product Warehouse, Spare Parts Warehouse, Million, Annual Production Capacity Of 5000 Sets.

More Than 60 Employees, Of Which More Than 50% Of Professional And Technical Personnel, Passed The ISO9001 CE Quality System Certification, Has Made The Import-Export Rights And The EU Set Up CE Certification, Is Currently The Domestic Industry One Of The Larger Enterprises.

The Main Products Of The Company Include Over 50 Series Of Nine Series Of Over 50 Models, Including Crimping Machine, Pipe Cutting Machine, Stripping Machine, Pipe Loading Machine, Marking Machine, Buttoning Machine, Pressure Testing Machine, Hose Washing Machine And Burst Test Bench. The Construction Of The Railway Company Should Provide Equipment Support. The Products Are Exported To More Than 30 Countries And Regions Such As Britain,Spain, Portugal, Ukraine, Russia, The United States, Mexico, Brazil, Argentina, Saudi Arabia, Thailand, Indonesia And So On.

The Company Will Continue To Uphold The Concept Of Innovation And Development, Product Refinement, Fine, The Chinese Barnett Into A World Of BNTFLEX.

Our Services & Strength

Modern hydraulics applications require robust fluid connector solutions with guaranteed long lasting performance. To that end,BNTFLEX Hydraulics offers a complete range of hoses, fittings and assembly equipment which are designed to work seamlessly together. This harmonised approach allows us to guarantee the quality and performance of hose assemblies in a way that our competitors simply cannot match.
