Quick Details
-
Warranty:
-
30years
-
Brand Name:
-
Greensun/OEM
-
Model Number:
-
GSM-M12/132HBD 700-730W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2384*1303*35mm
-
Product name:
-
Sola Panel
-
Solar cell:
-
Mono 210*105 Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP 68 Rated
-
Weight:
-
38.5kg
-
Glass:
-
high transparency low iron tempered glass
-
Cable:
-
4mm ^2 300mm PV Cable
-
Connector:
-
MC Compatible
-
Max. Power:
-
730W
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
Half Cell, Bifacial, Double-glass, HJT, N-TYPE
-
Panel Efficiency:
-
22.5%~23.5%
-
Warranty:
-
30years
-
Brand Name:
-
Greensun/OEM
-
Model Number:
-
GSM-M12/132HBD 700-730W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2384*1303*35mm
-
Product name:
-
Sola Panel
-
Solar cell:
-
Mono 210*105 Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP 68 Rated
-
Weight:
-
38.5kg
-
Glass:
-
high transparency low iron tempered glass
-
Cable:
-
4mm ^2 300mm PV Cable
-
Connector:
-
MC Compatible
-
Max. Power:
-
730W
Product Description
|

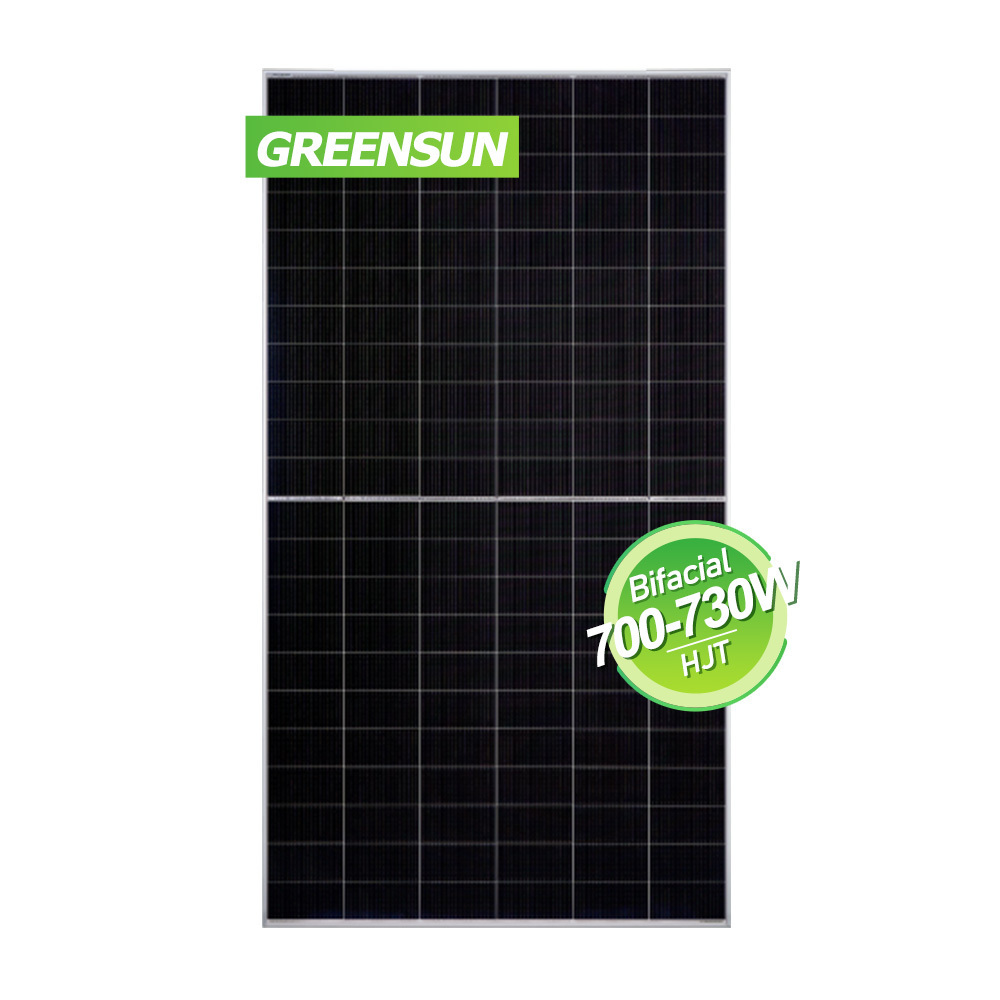

210mm HJT Bifacial Dual Glass Monocrystalline Module 700-730W
|
|
|
|
|
|
|
|
|||||||
|
Rated Maximum Power(Pmax) [W]
|
700W
|
705W
|
710W
|
715W
|
720W
|
725W
|
730W
|
|||||||
|
Open Circuit Voltage(Voc) [V]
|
49.83
|
49.92
|
50.01
|
50.10
|
50.19
|
50.28
|
50.37
|
|||||||
|
Maximum Power Voltage(Vmp) [V]
|
41.78
|
41.85
|
41.92
|
41.99
|
42.06
|
42.13
|
42.22
|
|||||||
|
Short Circuit Current(Isc) [A]
|
17.82
|
17.90
|
17.98
|
18.06
|
18.14
|
18.22
|
18.30
|
|||||||
|
Maximum Power Current(Imp) [A]
|
16.77
|
16.85
|
16.93
|
17.02
|
17.11
|
17.20
|
17.29
|
|||||||
|
Module Efficiency [%]
|
22.5
|
22.6
|
22.8
|
23.0
|
23.1
|
23.3
|
23.5
|
|||||||
|
Power Tolerance
|
0~+5W
|
|
|
|
|
|
|
|||||||
|
Temperature Coefficient of Isc(α_Isc)
|
+0.047%/℃
|
|
|
|
|
|
|
|||||||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.220%/℃
|
|
|
|
|
|
|
|||||||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.240%/℃
|
|
|
|
|
|
|
|||||||
|
STC
|
Irradiance 1000W/m²,ﾠModule temperature 25℃, AM1.5
|
|
|
|
|
|
|
|||||||
Factory & Production
Greensun Solar Energy Tech. Co., Limited is a professional, fast growing company. Greensun Solar is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, storage battery, and complete solar energy system for residential and C&I application.
Having professional engineering team, Greensun Solar provide best design and customization of One-Stop Solar Solution. Greensun Solar was founded in 2004, headquartered in Hefei, Anhui China.
Our factory covers 90,000 square meters area and has more than 2,000 employees. Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management.
We have comprehensive product range: solar panel, inverter, controller, battery, on grid and off grid solar system, hybrid solar system and solar pump system.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.
Our factory covers 90,000 square meters area and has more than 2,000 employees. Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management.
We have comprehensive product range: solar panel, inverter, controller, battery, on grid and off grid solar system, hybrid solar system and solar pump system.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Manufacturing Technique
Stringent quality control is the cornerstone of GREENSUN's manufacturing. Our customers have come to expect uncompromising quality standards in our products. To meet this expectation of high quality, we continue to invest in state-of-the art equipment and professional training of our employees .
We are proud of our product quality and their reliable performance even in the most extreme conditions. GREENSUN has received certifications for Quality Management System (ISO 9001:2015), Environment Management
System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.
System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.
100% Solar Cells SortingColor and performance selection
To ensure the production of high-quality cells, sort out unqualified products such as appearance defects, internal defects, and lack of process performance.
To ensure the production of high-quality cells, sort out unqualified products such as appearance defects, internal defects, and lack of process performance.
Automatic Production and Final Inspection
Automatic production with advanced automatic equipment. High Efficiency in prodcution.
Automatic production with advanced automatic equipment. High Efficiency in prodcution.
Appearance Inspection After Lamination
Each Solar Module must be inspected by QC after lamination to ensure there is no defect during lamination.
Each Solar Module must be inspected by QC after lamination to ensure there is no defect during lamination.
EL Testing and Visual Inspection
Ensure that there are no cracks or defects inside the module.
Ensure that the power meets customer standards.Ensure that the product has no color difference and no burrs.Make its reach Grade A standard.
Ensure that there are no cracks or defects inside the module.
Ensure that the power meets customer standards.Ensure that the product has no color difference and no burrs.Make its reach Grade A standard.
Global Project
We have sold and installed over 20,000 solar systems around the world.
Including residential energy storage systems and large-scale commercial solar photovoltaic systems.
Contribute to global carbon neutrality.
Ground Solar Energy System
Installed in the Ecuador, total 12MW.
120KW On Grid Solar Power System in Thaliand
500KW Hybrid Solar System in South Africa
