Quick Details
-
Conductor Diameter:
-
20AWG
-
Color:
-
white/black/optional
-
Shield:
-
32/48/64/96/112
-
Insulation material:
-
Foamed PE
-
Jacket:
-
PVC/PE
-
Braiding:
-
Al-Mg/CCA/Cu
-
Certification:
-
CE, ROHS, ISO 9001
-
Application:
-
CCTV/CATV System, satellite
Quick Details
-
Brand Name:
-
Karenda/OEM
-
Model Number:
-
coaxial cable
-
Place of Origin:
-
China
-
Conductor Diameter:
-
20AWG
-
Color:
-
white/black/optional
-
Shield:
-
32/48/64/96/112
-
Insulation material:
-
Foamed PE
-
Jacket:
-
PVC/PE
-
Braiding:
-
Al-Mg/CCA/Cu
-
Certification:
-
CE, ROHS, ISO 9001
-
Application:
-
CCTV/CATV System, satellite
|
|
RG58 |
RG59 |
RG6 |
RG11 |
|
Conductor |
BC/CCS 19x0.18mm |
BC/CCS 0.81±0.01mm |
BC/CCS 1.02±0.01mm |
BC/CCS 1.63±0.01mm |
|
Insulation |
Solid PE 2.95mm |
Foamed PE 3.66mm |
Foamed PE 4.57±0.05mm |
Foamed PE 7.11±0.05mm |
|
Shield |
None |
Double-sided aluminum foil |
Double-sided aluminum foil |
Double-sided aluminum foil |
|
Woven cover |
BC 95% |
BC 40-95% |
BC 40-95% |
BC 40-95% |
|
Sheath |
PVC 4.95mm |
PVC 6.10mm |
PVC 6.9mm |
PVC 10.16mm |
|
Thickness |
0.8mm |
0.8mm |
0.8mm |
1.07mm |
|
Grease |
None |
None |
None |
None |
|
Characteristic spark test |
2500VAC |
2500VAC |
4000VAC |
5000VAC |
|
Impedance |
50+2 Ohm |
75+3 Ohm |
75+3 Ohm |
75+3 Ohm |
|
Capacitance |
55+3pF/m |
50+3pF/m |
52.5+3pF/m |
50+3pF/m |
|
Propagation speed |
87% |
83% |
83% |
85% |
|
Return loss |
≥20dB min(30-470MHz) ≥18dB min(470-1000MHz) |
20dB |
21dB min(5-2300MHZ) |
20 dB |

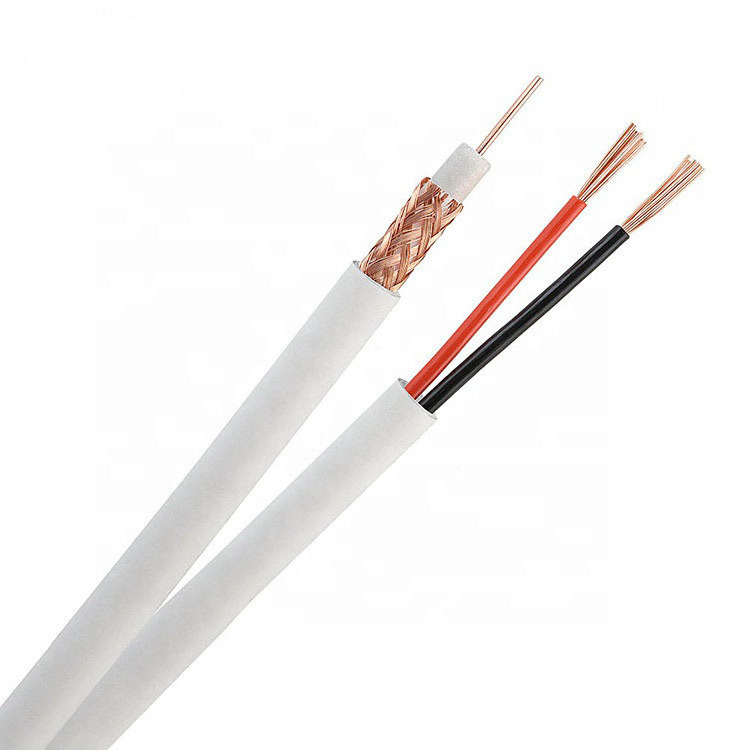

![[Softel]High quality 75ohm communication cable rg6 coaxial cable quad shield rg6](https://cdn.bestsuppliers.com/seo_products_img/softel/9b33cf967c8d36ea9f20316f70c3b7ae.jpg!/rotate/180/sq/300)
