Quick Details
-
Input Speed:
-
800~1000r/min
-
Output Speed:
-
60~100rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WanXin
-
Model Number:
-
ZLYJ series
-
Color:
-
As your request
-
Material of Housing:
-
Cast Iron
-
Material of Gear:
-
20CrMnTi
-
Quality Control System:
-
ISO9001-2008
-
Ratio:
-
8~20
-
Mounting position:
-
Vertical, horizontal
-
HS Code:
-
8483409000
-
Grinding precision grade:
-
class 5-7
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
800~100000N.m
-
Rated Power:
-
5.5KW~200KW
-
Input Speed:
-
800~1000r/min
-
Output Speed:
-
60~100rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WanXin
-
Model Number:
-
ZLYJ series
-
Color:
-
As your request
-
Material of Housing:
-
Cast Iron
-
Material of Gear:
-
20CrMnTi
-
Quality Control System:
-
ISO9001-2008
-
Ratio:
-
8~20
-
Mounting position:
-
Vertical, horizontal
-
HS Code:
-
8483409000
-
Grinding precision grade:
-
class 5-7

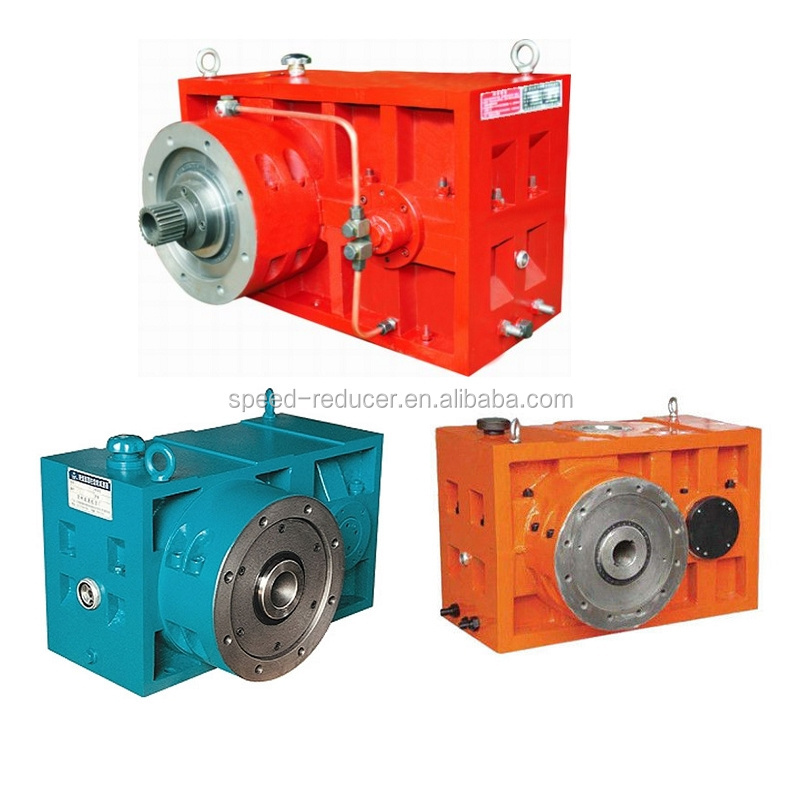

ZLYJ extruder gearbox Overview:
ZLYJ series high precision hard-toothed surface reducer is the thrust block transmission components for plastic screw extruder design. Product design follow the ZBJ19009-88 under the technical specifications. With high strength alloy steel, Gear processed by carburizing, hardening, grinding.
The accuracy of the gear is GB10095-88, class6. Tooth surface hardness is HRC54-62, in the hollow output shaft front end configuration with a thrust bearing specification, to bear the work of screw recoil. Bearings and oil seals and other major national quality standard parts are used, also can be equipped with imported products according to the needs of users. The machine has the advantages of small volume, high carrying capacity, stable transmission, low noise, high efficiency.
Product performance has reached the international advanced level, can replace similar imported products.
Applicable Scope
1, The input rotation of prime mover shall be ≤1500rpm.
2, The peripheral speed of gear drive shall be ≤20m/s.
3,The working ambient temperature shall be within -40~45°c. Preheat the Lubricatting oil to above 0°c. Rotation is available both forwards and backwards. However, the high-speed shaft of some types of reducers has single-way oil pump directing as defaulted to the output shaft which rotates clockwise. If you want to change the direction, please make detailed description while placing order.
| Item Name | Rubber and Plastic Extruder Gearbox |
| Model No. | ZLYJ series |
| Material | Housing/cast iron |
| Gear/20CrMoTi; Shaft/ High-strength alloy steel | |
| Input Speed | 800~1000r/min |
| Output Speed | 60~100rpm |
| Ratio |
8~20
|
| Input Power | 5.5KW~200KW |
| Service Factor | / |
|
Mamax Permissible Torque |
800~100000N.m |
|
Quality Control System |
ISO9001-2008;CE;IQNet |
|
Packing |
Plastic bag + PE foam + Wooden case + Metal strap |
| Delivery |
15-30 days after order
|
Q:What information should I tell you to confirm speed reducer?
A: Model/Size, Transmission Ratio, Shaft directions & Order quantity.
Q:What if I don't know which gear reducer I need?
A:Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q:What should I provide if I want to order NON-STANDERD speed reducers?
A: Drafts, Dimensions, Pictures and samples if possible.
Q:What is the MOQ ?
A: It is OK for one or small pieces trial order for quality testing.
Q:Who I should contact ?
A:Please contact Ethan Wang if you need more help.
Skype:Ethan_Gearbox /Cellphone:+8613335201180
Q:How long should I wait for the feedback after I send the inquiry?
A: Within 12 hours
Q:What is the payment term ?
A:You can pay via T/T(30% in advance+70% before delivery), L/C ,West Union etc
Q:What is the delivery time ?
A:Normally is 20-30days after order, for special model or big quantity please email to us for checking.
Q:What is the guarantee time ?
A:12months
