Quick Details
-
Warranty(Year):
-
3-5-Year
-
Color Temperature(CCT):
-
2700-6500K
-
Input Voltage(V):
-
100-240/100-277V
-
Lamp Luminous Flux(lm):
-
4000
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
25000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OFLED
-
Model Number:
-
OHD-PL126MD-728XX
-
Item Type:
-
Panel Lights
-
Keyword:
-
waterproof panel light
-
PF:
-
0.9
-
Wire length:
-
0.2m
-
Body Color:
-
White
-
Beam angle:
-
110°/80°
-
UGR:
-
Nomarl/UGR<19
-
Dimmable/ Sensor:
-
dimmable/non-dimmble
-
Flicker:
-
Flicker free or non-flicker
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Application:
-
hospital/bathroom/packinghouse, hospital/bathroom/packinghouse
-
Lamp Body Material:
-
Aluminum
-
Warranty(Year):
-
3-5-Year
-
Color Temperature(CCT):
-
2700-6500K
-
Input Voltage(V):
-
100-240/100-277V
-
Lamp Luminous Flux(lm):
-
4000
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
25000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OFLED
-
Model Number:
-
OHD-PL126MD-728XX
-
Item Type:
-
Panel Lights
-
Keyword:
-
waterproof panel light
-
PF:
-
0.9
-
Wire length:
-
0.2m
-
Body Color:
-
White
-
Beam angle:
-
110°/80°
-
UGR:
-
Nomarl/UGR<19
-
Dimmable/ Sensor:
-
dimmable/non-dimmble
-
Flicker:
-
Flicker free or non-flicker

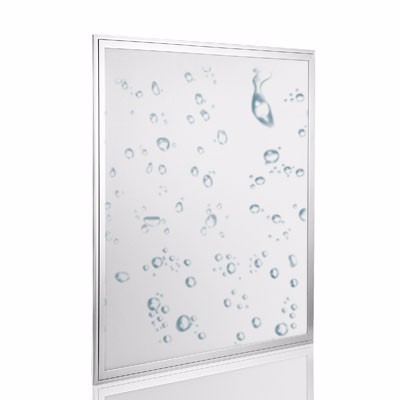

72W 120LM/W 600x1200 Outdoor Waterproof Led Light Fixtures 2x4 Hospital Led Light Ceiling Rectangle panel light
The IP65 LED panel light is designed for applications in dusty or wet & damp environments where before this was just not possible with normal LED panel light. It is also ideal for the clean room requirements.
There is also IP65 panel light available in special sizes, any demand please contact us.
|
Setting Information for IP65 led panel light
|
|
|
|
Product Size
|
1195*595*10mm
|
|
|
Input voltage
|
180-240VAC/100-277VAC
|
|
|
Power
|
72W
|
|
|
Body Material
|
Extruded aluminum
|
|
|
Installation
|
insert/suspended/surface mounting
|
|
|
Light Efficiency
|
80-115lm/w
|
|
|
CCT
|
2700-6500K
|
|
|
Warranty
|
3&5 years
|
|
|
Model
|
OHD-UPL66MD-248XX
|
OHD-PL66MD-488XX
|
OHD-UPL123MD-408XX
|
||
|
LED Light Source
|
SMD 2835
|
SMD 2835
|
SMD 2835
|
||
|
Wattage
|
24W/28W
|
40W/48W
|
40W
|
||
|
Input Voltage
|
180-240VAC / 100-270VAC
|
|
|
||
|
Driver
|
Longbright/Lifud/MOSO
|
|
|
||
|
Certificates
|
CE/ROHS
|
|
|
||
Waterproof IP65 led panel light It can be widely applied in indoor and outdoor:
Gas station,Metro station,Coating workshop,Cold storage room,Hospital,Parking lot,spray booth and so on.
|
Product size
|
Gross weight
|
PCS/CARTON
|
INNER BOX
|
|
295*295*10 mm
|
1.5kg
|
5
|
330*60*330 mm
|
|
595*595*10 mm
|
4kg
|
5
|
630*60*630 mm
|
|
1195*295*10 mm
|
4.4kg
|
5
|
1230*60*330 mm
|
|
1195*595*10mm
|
8.15kg
|
2
|
1230*60*630 mm
|
