Quick Details
Quick Details
-
Model Number:
-
AST-HDR104P
-
Brand Name:
-
AOST , OEM
-
Place of Origin:
-
Guangdong, China

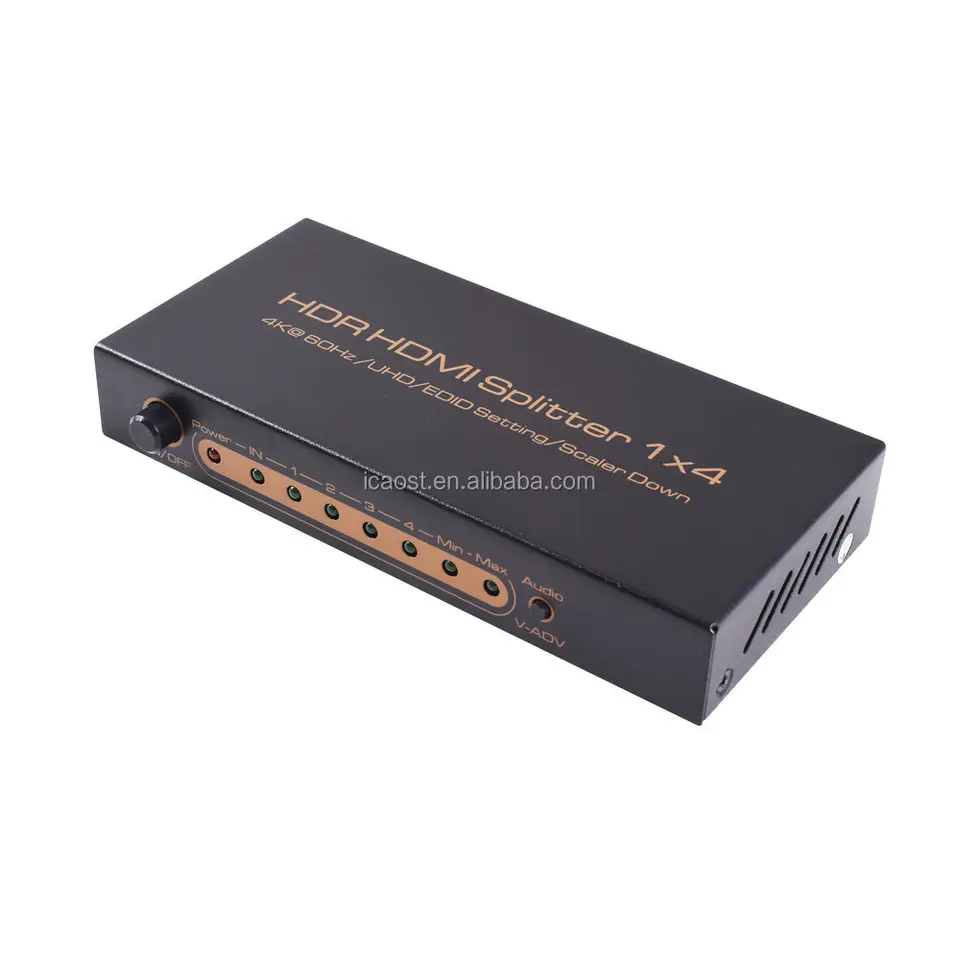

3D Full HD UHD HDR EDID Set Scaler 3840x2160 1 In 4 Out 4K 60Hz HDCP 2.2 1x2 1x4 4 Port HDMI Splitter 4K
Spec:
|
Mode No |
AST-HDR104P |
|
Mode name |
HDR HDMI Splitter 1x4 |
|
Input channel |
HDMI port x1 |
|
Output channel |
HDMI port x4 |
|
Video format |
HDR , HLG , Dolby Vision |
|
Resolution format |
480P/720P/1080P/4K@30Hz/4K@60Hz |
|
Deep color |
8/10/12Bit@480P/720P/1080P 8Bit@2160P |
|
Audio format |
Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM |
|
HDMI Input cable length |
2160P/AWG 26≤5m
|
|
HDMI Output cable length |
2160P/AWG 26≤5m
|
|
HDMI transmission bandwidth |
25~600MHz |
|
HDMI transmission rate |
0.75~18Gbps |
|
Power adapter specification |
Input: AC 100~240V Output: DC 5V/1A |
|
Max working current |
500mA |
|
Working temperature range |
0 ~ +40 ℃ |
|
Working humidity range |
5 to 85%RH ( No Condensation ) |
|
Storage temperature |
-15 to 55 ℃ |
|
Storage humidity |
5 ~95%RH(No Condensation) |
|
Size |
139x64x22 (mm) |
|
Weight |
223g |
|
Accessories |
Manual x1, Power Adaptor x1 |
