Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Weight (KG):
-
1500
-
Model:
-
CA-1325 1530
-
Working Area:
-
1500*3000*500mm
-
MaxEngraving Speed:
-
15000mm/min
-
Reposition Accuracy:
-
<0.05/300mm
-
Working Dictate:
-
G code
-
Spindle:
-
5.5KW
-
Tool Diameter:
-
3.175,6,12.7
-
X,Y,ZGuideRail:
-
Square Linear Rail
-
Control System:
-
NC-STUDIO/DSP
-
Transmission:
-
XYPrecise Rack Gear Z Ball Screw
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Weight (KG):
-
1500
-
Model:
-
CA-1325 1530
-
Working Area:
-
1500*3000*500mm
-
MaxEngraving Speed:
-
15000mm/min
-
Reposition Accuracy:
-
<0.05/300mm
-
Working Dictate:
-
G code
-
Spindle:
-
5.5KW
-
Tool Diameter:
-
3.175,6,12.7
-
X,Y,ZGuideRail:
-
Square Linear Rail
-
Control System:
-
NC-STUDIO/DSP
-
Transmission:
-
XYPrecise Rack Gear Z Ball Screw

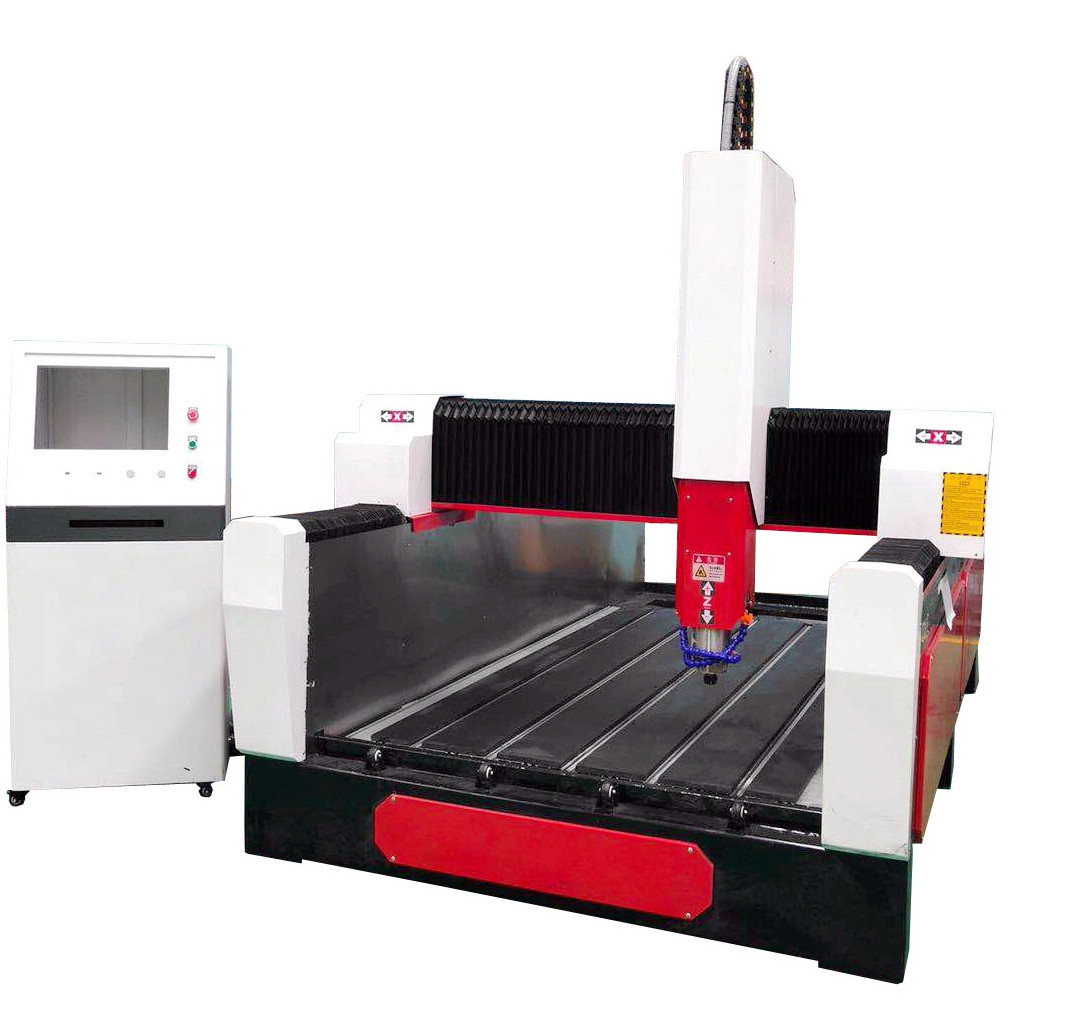

Heavy duty frame CA-1325 1530 stone cnc router for sale
1.Profiled steel welded lathe bed, stabilizing
treated under high temperature ensures minimum distortion, excellent rigidity and vigorous strength.
2..High precision ball screw transmission ensures high accuracy, fast speed and strong power.
3.Imported square linear guide rail ensures high accuracy, maximum work load and long service time.
4.Best mechanical and electrical design with well selected brand parts minimize breakdown rate.
5.Configured with water tank and automatic cooling water supply system.
6.Overall dust-proof and water-proof design protects all moving parts of machine.
treated under high temperature ensures minimum distortion, excellent rigidity and vigorous strength.
2..High precision ball screw transmission ensures high accuracy, fast speed and strong power.
3.Imported square linear guide rail ensures high accuracy, maximum work load and long service time.
4.Best mechanical and electrical design with well selected brand parts minimize breakdown rate.
5.Configured with water tank and automatic cooling water supply system.
6.Overall dust-proof and water-proof design protects all moving parts of machine.
3D engraving, line engraving, cutting, edge inversing, drilling on natural marble, granite, artificial stone, tombstone, milestone, ceramic tiles, glass and so on.
Stone working: engraving or cutting various marble, granite, bluestone, gritstone, soapstone and etc.
Metal working: nonferrous metals like aluminum, brass and etc.
Glass working: various glass.
Other materials: wood,acrylic,MDF etc.
Stone working: engraving or cutting various marble, granite, bluestone, gritstone, soapstone and etc.
Metal working: nonferrous metals like aluminum, brass and etc.
Glass working: various glass.
Other materials: wood,acrylic,MDF etc.
|
Model
|
CA-1530
|
|
Working Area(xyz)
|
1500*3000*500mm
|
|
MaxEngraving Speed
|
15000mm/min
|
|
Reposition Accuracy
|
<0.05/300mm
|
|
Working Dictate
|
G code
|
|
Spindle
|
5.5KW
|
|
Tool Diameter
|
∮3.175,∮6,∮12.7
|
|
X,Y,ZGuideRail
|
Square Linear Rail
|
|
Transmission |
XYPrecise Rack Gear
|
|
|
Z Ball Screw
|
|
Control System
|
NC-STUDIO/DSP
|
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function.
We can recommend the most suitable machine according to our experience.
Q2: This is the first time i buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer"online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other crificates
required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be20-30 working days.
Q7: How is the payment?
Normally we accept T/ or LC, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
