Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PJ
-
Model Number:
-
PJ192
-
Size:
-
46*230*110mm
-
Battery:
-
60mA
-
Product name:
-
Railway Tunnel 600/800m Linear Laser Pointer
-
Output power:
-
≥5mW
-
After-sales Service Provided:
-
Online Video Technical Support
-
Application:
-
Municipal construction subway project
-
Certification:
-
ISO
-
Color:
-
Black
-
Brand:
-
PJ
-
Material:
-
Metal Steel Stainless
-
Usage:
-
Mine Driving Railway Tunnel
Quick Details
-
Remote Control:
-
NO
-
Function:
-
pointing instrument for mine, pipeline laying out line pointing instrument
-
Control Distance:
-
600-800m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PJ
-
Model Number:
-
PJ192
-
Size:
-
46*230*110mm
-
Battery:
-
60mA
-
Product name:
-
Railway Tunnel 600/800m Linear Laser Pointer
-
Output power:
-
≥5mW
-
After-sales Service Provided:
-
Online Video Technical Support
-
Application:
-
Municipal construction subway project
-
Certification:
-
ISO
-
Color:
-
Black
-
Brand:
-
PJ
-
Material:
-
Metal Steel Stainless
-
Usage:
-
Mine Driving Railway Tunnel
Products Description
Made in China High Quality Function Stable Mine Driving Railway Tunnel 600/800m Linear Laser Pointer

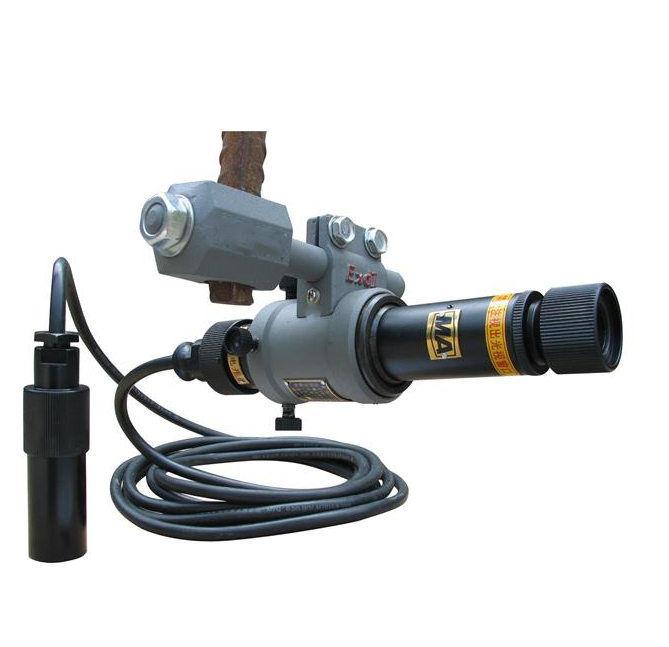

The laser pointing instrument is composed of a semiconductor laser, a laser collimation system, a focusing device, and a beam horizontal and vertical direction adjustment device; the power supply of the YHJ800 laser pointing instrument is a power supply that converts an AC power supply (85V ~ 265V) into a 3V DC stabilized power supply Device; the mounting rod is a device that connects the anchor rod to the instrument.
Technical parameters
|
Effective range: >800m
|
|
Output power: ≥5mW
|
|
Spot diameter: ≤70mm (at 800m)
|
|
Laser beam horizontal/vertical adjustment range: ≥±2.5
|
|
Working current: ≤60mA
|
|
Protection class: IP54
|
|
Type: ExmibⅠ
|
|
Dimensions: Φ46×230×110mm
|
|
Weight: ≤1.60kg
|
|
Supporting equipment: DJJ3.7/127 AC power supply
|
Product Photos
Customer visit&evaluation
FAQ
Are you manufacture?
Yes. We are one of leading manufacturers
Do you have stock productions to sell?
Yes,of course.But we also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production time for
punctual delivery.
(2) 20year production experience. We have over 20 years experience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad
situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to
discuss with him for all the problems and the way sames much times.
The picture of the machine is for reference only. The actual machine is subject to customer order.
Yes. We are one of leading manufacturers
Do you have stock productions to sell?
Yes,of course.But we also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production time for
punctual delivery.
(2) 20year production experience. We have over 20 years experience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad
situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to
discuss with him for all the problems and the way sames much times.
The picture of the machine is for reference only. The actual machine is subject to customer order.
