Quick Details
-
Product name:
-
PT250 electric controller air oil water pump pressure switch
-
pressure ranges of water pressure switch:
-
-1~0 bar ,0~0.1bar, 0~ 1000bar pressure switch
-
display of water pressure switch:
-
-1999 -9999 4 air pressure switch
-
accuracy of water pressure switch:
-
<= 0.5%FS (standard) water pump pressure switch
-
display accuracy:
-
+- 0.1%FS of oil pressure switch
-
supply voltage:
-
24VDC water pumo pressure switch
-
operating temperature range:
-
-40~+85°c electric pressure switch
-
process connection:
-
G1/4 or others you can OEM
-
switch type:
-
PNP /NPN you can OEM
-
Application:
-
Vacuum furnace,Machine tool,Industrial process control
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Atech
-
Model Number:
-
PT250
-
Product name:
-
PT250 electric controller air oil water pump pressure switch
-
pressure ranges of water pressure switch:
-
-1~0 bar ,0~0.1bar, 0~ 1000bar pressure switch
-
display of water pressure switch:
-
-1999 -9999 4 air pressure switch
-
accuracy of water pressure switch:
-
<= 0.5%FS (standard) water pump pressure switch
-
display accuracy:
-
+- 0.1%FS of oil pressure switch
-
supply voltage:
-
24VDC water pumo pressure switch
-
operating temperature range:
-
-40~+85°c electric pressure switch
-
process connection:
-
G1/4 or others you can OEM
-
switch type:
-
PNP /NPN you can OEM
-
Application:
-
Vacuum furnace,Machine tool,Industrial process control

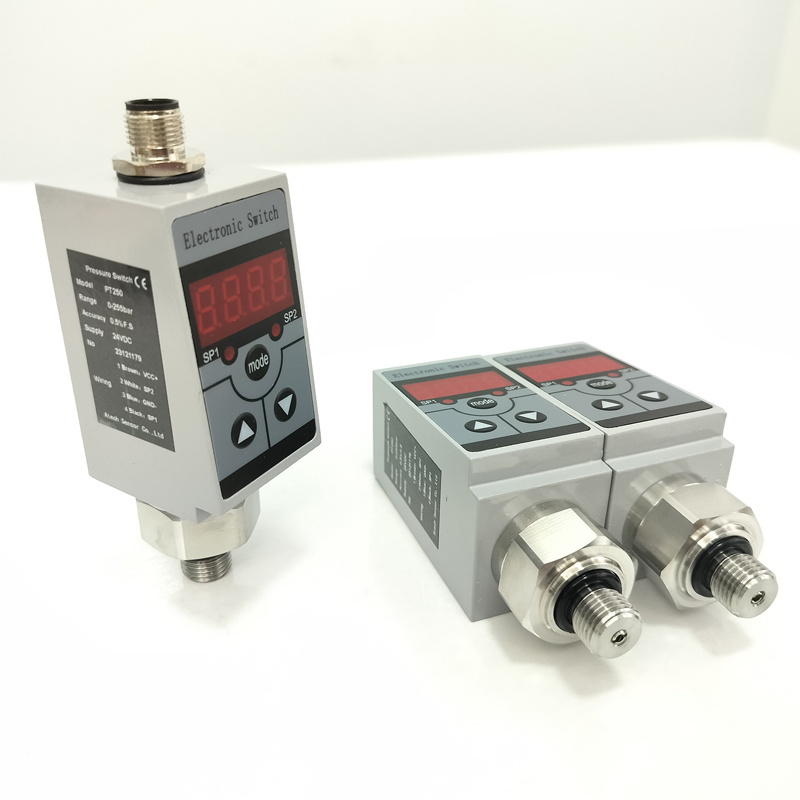

PT250 electric controller air oil water pump pressure switch
Description of pressure switch
PT250 electric controller air oil water pump pressure switch is a pressure measurement and control products with display and control. Internet of things wireless water sensor for alarm PT250 water pressure switch is all-electronic structure, preceding part use silicon oil-filled pressure sensor cell which has a insulation film. The processing output signa l from the amplifier is given away with high accuracy A / D converter, converted into digital signals to control the two-way switches.
PT250 electric controller air oil water pump pressure switch is easy to operate, easy to debug, safe and reliable.
Feature of water pump pressure switch
1. With LED display
2. Button set-up for various parameters, easy for operation
3. Two way switch out put, Load capacity of 1.2A
4. CE certificate
5. Silicon sensor cell employed
Speifications of electric pressure seitch
|
pressure medium of water pressure switch |
gas liquid compatible stainless steel |
|
pressure range of water pump pressure switch |
-1 – 0 bar ,0- 0.1bar, 0- 1000bar |
|
supply voltage of water pressure switch |
24VDC |
|
accuracy of electric pressure switch |
<= 0.5%FS (standard) |
|
display of air pressure switch |
-1999 -9999 4 digital number with LED display |
|
display accuracy of water pump pressure switch |
+- 0.1%FS |
|
<3W |
|
|
supply voltage of oil pressure switch |
10~30V |
|
medium temperature range |
-40~85°c |
|
operating temperature range |
-40~+85°c |
|
storage temperature range |
-40~+85°c |
|
switch type of controller pressure switch |
PNP /NPN |
|
Switch endurance |
>1,000,000 times |
|
insulation resistance |
>100MΩ@ 50VDC |
|
process connection |
G1/4 or others |
|
electrical connection |
DIN 43650 or others |
|
long term stability of water pump pressure switch |
0.5%FS/year |
|
material of pressure membrane |
316L |
|
Response time of water pressure switch |
<=3ms |
|
weight of wireless water pressure switch |
210g |
Outline Dimension of air pressure switch
Applications of controller pressure switch
1 . Industrial process control
2. Machine tool
3. Liquid pressure system and switch
4. Vacuum furnace
