Quick Details
-
Certificate:
-
ISO
-
Warranty:
-
1 year
-
Work Time (h):
-
0-24H
-
Specification:
-
Normal
-
Model:
-
60A
-
PV Open Circuit Voltage:
-
100VDC@12V/ 145VDC @24V
-
PV Array MPPT Voltage Range:
-
16VDC~100VDC / 32VDC~130VDC
-
Peak Conversion efficiency:
-
98%
-
Display:
-
LED indication+LCD display
-
Mounting:
-
Wall mount
-
Net Weight:
-
4Kg
-
Operation Temperature:
-
-25~+55°C
-
Voltage:
-
12V/24V/48V Auto Detection
-
Application:
-
Charger Controller, Wind Controller, Collector Controller, Water Heater Controller, Solar Working Station, Lighting Controller, Thermal Controller, Voltage Controller, Solar System Controller
-
Max PV Voltage:
-
48v
-
Max PV Power:
-
2880w
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SWT
-
Model Number:
-
SC-M 60A
-
Certificate:
-
ISO
-
Warranty:
-
1 year
-
Work Time (h):
-
0-24H
-
Specification:
-
Normal
-
Model:
-
60A
-
PV Open Circuit Voltage:
-
100VDC@12V/ 145VDC @24V
-
PV Array MPPT Voltage Range:
-
16VDC~100VDC / 32VDC~130VDC
-
Peak Conversion efficiency:
-
98%
-
Display:
-
LED indication+LCD display
-
Mounting:
-
Wall mount
-
Net Weight:
-
4Kg
-
Operation Temperature:
-
-25~+55°C
-
Voltage:
-
12V/24V/48V Auto Detection
-
Application:
-
Charger Controller, Wind Controller, Collector Controller, Water Heater Controller, Solar Working Station, Lighting Controller, Thermal Controller, Voltage Controller, Solar System Controller
-
Max PV Voltage:
-
48v
-
Max PV Power:
-
2880w

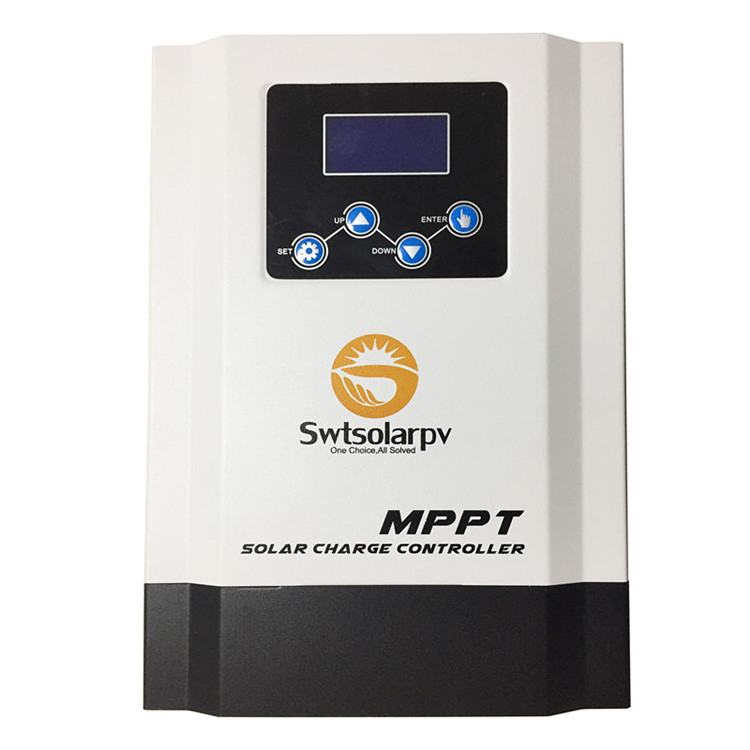

24V PV Input 600W 900W 1200W MPPT Solar Charge Controller
Feature:
*30A/40A50A/60A MPPT solar charge controller
*MPPT technology
* Built-in DSP controller with high performance
*Automatic battery voltage detection for 12V/24V or 12V/24V/36V/48V
* 3 stage charging optimizes battery performance
*Overcharge protection and input PV polarity reverse protection
* Suitable for battery types such as sealed lead acid,vented gel and lithium battery
*Can be mounted easily
Introduction:
MPPT (Maximum Power Point Tracking) Solar Charge Controller offer an efficient, safe, multi-stage reacharing process
that prolongs battery life and assures peak performance from a solar array.Each charge controller allows customized battery.
| Models:30A 40A 50A 60A | 30A | 40A | 50A | 60A | |
| Maximum PV input power | 12V system | 400W | 480W | 600W | 720W |
| 24V system | 720W | 960W | 1200W | 1440W | |
| 36V system | 1000W | 1400W | 1800W | 2100W | |
| 48V system | 1200W | 1700W | 2200W | 2800W | |
|
PV open circuit voltage requirement (Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2
times than bettery, then it's best efficiency.)
|
12V system | DC20V-DC80V | |||
| 24V system | DC37V-DC105V | ||||
| 36V system | DC50V-DC160V | ||||
| 48V system | DC72V-DC160V | ||||
| Maximum PV open circuit voltage (Voc) |
12V/24V/36V/48V system |
DC190V (The controller can't work at this voltage of long duration that will break controller. Please refer to input voltage from PV |
|||
| Basic Parameter | |||||
| MPPT controller | 12V system | 24V system | 36V system | 48V system | |
| Overcharging protection voltage | 15v | 30V | 45V | 60V | |
| System voltage automatic recognition | DC9V-DC15V | DC18V-DC29V | DC30V-DC39V | DC40V-DC60V | |
| Max efficiency |
>98.1% (Voc is 1.5 or 2 times than baattery, then it's best efficiency) |
||||
| PV utilization | d>99% | ||||
| Protection function | |||||
| Temperature function | 75℃ | ||||
| Fan-on temperature | >40℃ | ||||
| Fan-off temperature | <35℃ | ||||
| Properties | |||||
| Size | 235*188*100mm | ||||
| Net weight(kg) | 1.1 | ||||
| Gross weight(kg) | 1.6 | ||||
