Quick Details
-
Weight:
-
4090 KG
-
Max. lifter force:
-
18.6kN
-
Min. ground clearance:
-
379mm
-
Wheelbase:
-
2195mm
-
Rated power:
-
59kw
Quick Details
-
Brand Name:
-
China top brand
-
Place of Origin:
-
China
-
Engine Brand:
-
China Brand
-
Weight:
-
4090 KG
-
Max. lifter force:
-
18.6kN
-
Min. ground clearance:
-
379mm
-
Wheelbase:
-
2195mm
-
Rated power:
-
59kw
Products Description

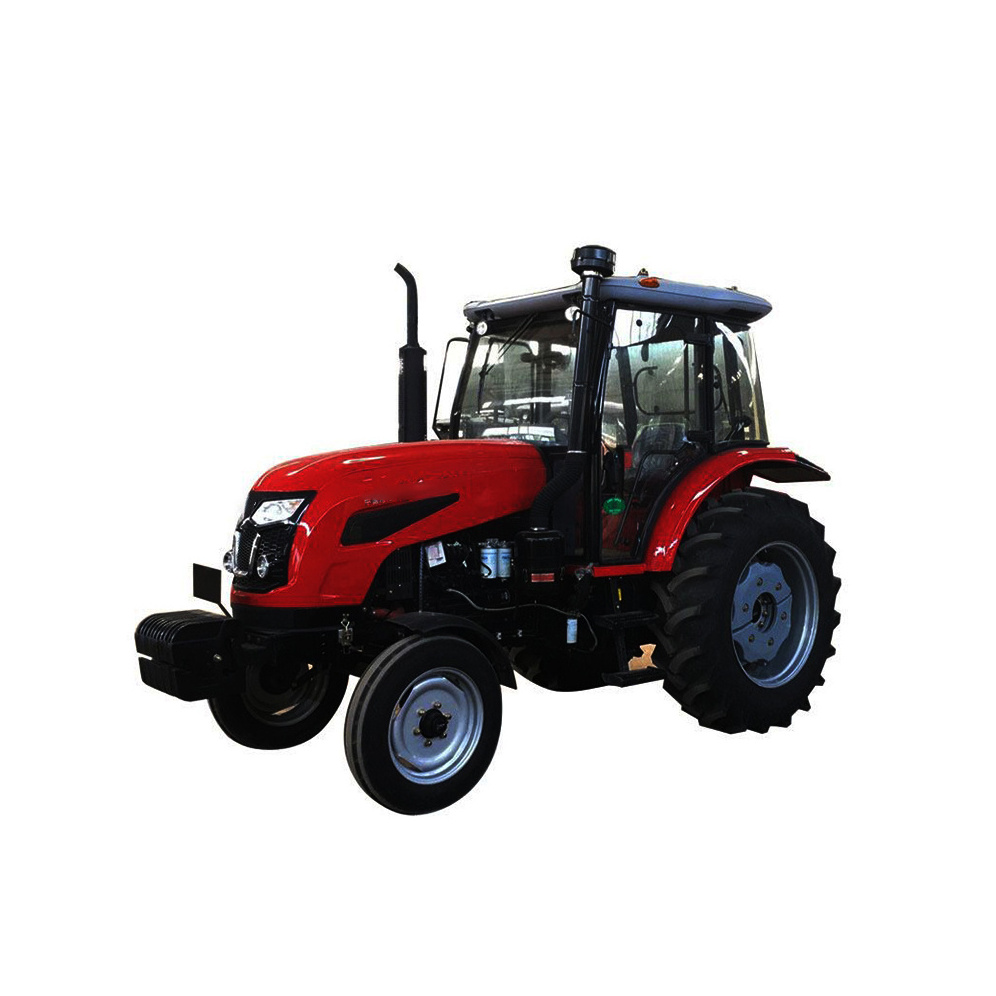

LT804 Wheeled Tractor
● Gearbox using 4 × (4+2) engaging sleeve, shuttle-type gearshift , there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency;
● Independent power take off device, smooth transmission, large capacity;
● Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
● Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
● Independent power take off device, smooth transmission, large capacity;
● Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
● Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
Contact way
Lareina Yang
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-15107124962
Web: www.newindu.com
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-15107124962
Web: www.newindu.com
Product Paramenters
|
Tractor Model
|
|
LT804
|
|
|
Drive Type
|
|
4×4
|
|
|
Overall Dimension L×W×H(mm)
|
|
4396x4396x2810
|
|
|
Wheel base(mm)
|
|
2195
|
|
|
Front wheel tread(mm)
|
|
1610
|
|
|
Rear wheel tread(mm)
|
|
1620-2020
|
|
|
Min. ground clearance(mm)
|
|
379
|
|
|
Min.steering radius
|
Unilateral brake(m)
|
4.2±0.3
|
|
|
|
Not unilateral brake(m)
|
4.9±0.3
|
|
|
Min. operating weight (KG)
|
|
4090
|
|
|
Gearbox gears number
|
|
16/8
|
|
|
Speed
|
Forward(Kw/h)
|
1.58-33.69
|
|
|
|
Reverse(Kw/h)
|
2.41-34.67
|
|
|
Engine
|
Model
|
LR4B5-23
|
|
|
|
Rated power (Kw)
|
59
|
|
|
|
Rated speed (r/min)
|
2300
|
|
|
Tires spec.
|
Front tires
|
11.2-24
|
|
|
|
Rear tires
|
16.9-34
|
|
|
Steering Type
|
|
/
|
|
|
Max. lifting force( KN )
|
|
14.2
|
|
|
PTO
|
Type
|
/
|
|
|
|
Speed (r/min)
|
760/1000 or 540/1000 or 540/760 or 760/850
|
|
|
|
Power(Kw)
|
51.2
|
|
|
Control type of ploughing depth
|
|
/
|
|
|
Max. traction force (KN)
|
|
18.6
|
|
|
Front / rear Ballast (KG)
|
|
270/470
|
|
