Quick Details
-
Production Capacity:
-
1000
-
Power:
-
2.2
-
Dimension(L*W*H):
-
980*1100*1200
-
Crimping:
-
Alulminum profile
-
brand:
-
DECALUMA
-
name:
-
Aluminum Door and Window Corner Assembling Machine
-
type:
-
LZJ-120C
-
Motor power:
-
1.5KW
-
Operation air pressure:
-
0.5~0.8Mpa
-
Air consumption:
-
20L/min
-
Rating pump pressure:
-
20Mpa
-
Combining height:
-
Max 120mm
-
Certification:
-
CE
Quick Details
-
Brand Name:
-
DECALUMA
-
Voltage:
-
380
-
Weight:
-
400
-
Production Capacity:
-
1000
-
Power:
-
2.2
-
Dimension(L*W*H):
-
980*1100*1200
-
Crimping:
-
Alulminum profile
-
brand:
-
DECALUMA
-
name:
-
Aluminum Door and Window Corner Assembling Machine
-
type:
-
LZJ-120C
-
Motor power:
-
1.5KW
-
Operation air pressure:
-
0.5~0.8Mpa
-
Air consumption:
-
20L/min
-
Rating pump pressure:
-
20Mpa
-
Combining height:
-
Max 120mm
-
Certification:
-
CE

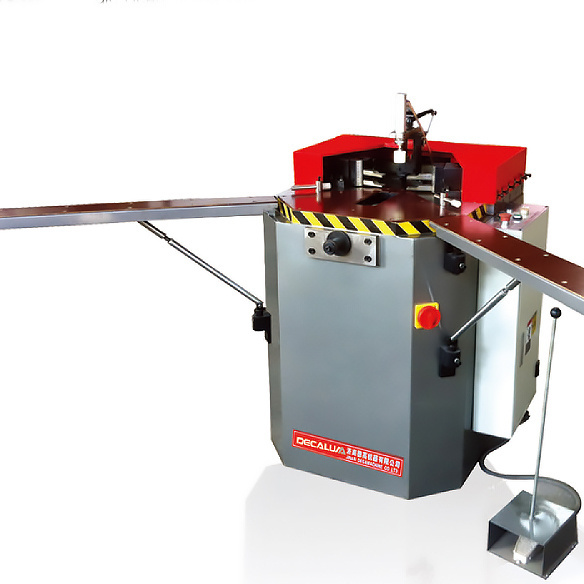

Jinan DECALUMA Aluminium Crimping Machine for Windows Doors /Aluminium Window Door Manufacturing Corner Crimping
Specification:
1. Used for aluminum frame and sash corner crimping, especially for high-quality profile, such as thermal bridging profile.
2. Hydraulic system driving, ensure a stable working.
3. Synchronous feeding of the level (left and right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently.
4. This machine has this feature: convenient operation thus make less error in processing.
5. Distance of tool knife can be adjustable, as the screw thread connection easy working for tools.
6. It is collocate single cutter of many points crimping cutter ensure reliable crimping for all kinds of profiles.
7. The crimping tools can be lift upper and down ,which is easy for put and take profile.
Technical Parameter:
|
Made to order |
|
|
Operation air pressure |
0.5~ 0.8Mpa |
|
Motor power |
2.2 KW |
|
Air consumption |
20L/min |
|
Rating pump pressure |
20Mpa |
|
Combining height |
Max . 120mm |
|
Cylinder stroke |
85mm |
|
54mm |
|
|
Combining pressure |
12Mpa |
|
1000* 1 10 0 * 1210mm |
|
|
Weight |
400kg |
1.Why choose you
We have excellent sales and after-sales team
2.Sample service:
Our engineer is available to travel abroad, help the installation, maintenance and training staff.
3. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
4.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Free industrial information
Free investment analysis for windows,doors and curtain wall project
Free layout design for windows,doors and curtain wall production lines
Provide follow-up service,regular maintenance and lifetime service for our machines sold
Provide quick supply of spare parts for window and curtain wall companies.
Provide technical support including pressure design and caculation for window and curtain wall companies
