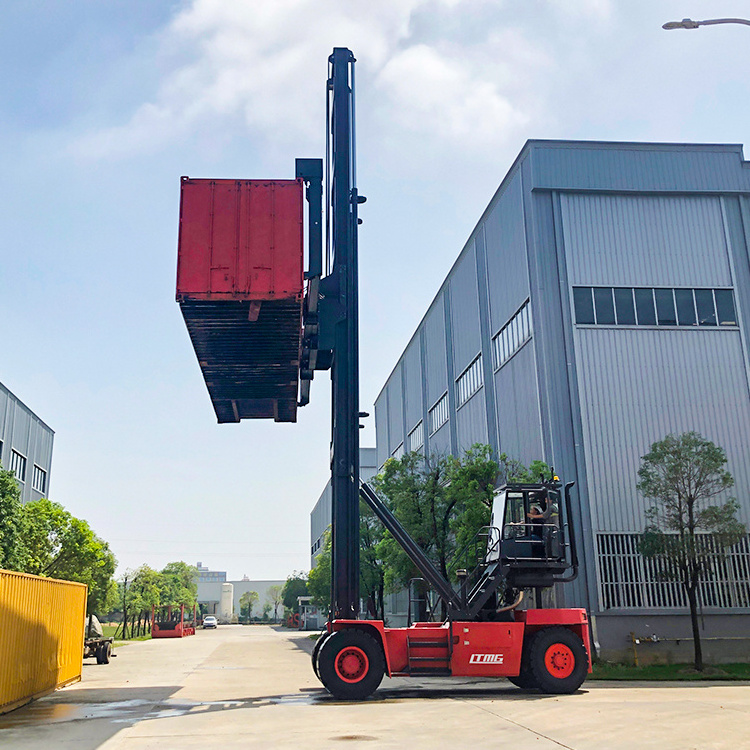

The pitch-down streamlined design of the vehicle presents a vivid and sturdy profile.
- Product Details
- {{item.text}}
Quick Details
-
Overall Dimensions:
-
11618*3400*4945mm
-
Weight (KG):
-
71200 kg
-
Product Name:
-
9ton Container Handler
-
Key words:
-
reach stacker container
-
Model:
-
CH90
-
Load capacity:
-
9000kg
-
MOQ:
-
1 unit
-
Brand:
-
SECSUN
-
Overall length:
-
6850mm
-
Overall width:
-
4120 / 2570mm
-
Item:
-
container reach stacker
-
Optional:
-
Fork Positioner
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SECSUN
-
Overall Dimensions:
-
11618*3400*4945mm
-
Weight (KG):
-
71200 kg
-
Product Name:
-
9ton Container Handler
-
Key words:
-
reach stacker container
-
Model:
-
CH90
-
Load capacity:
-
9000kg
-
MOQ:
-
1 unit
-
Brand:
-
SECSUN
-
Overall length:
-
6850mm
-
Overall width:
-
4120 / 2570mm
-
Item:
-
container reach stacker
-
Optional:
-
Fork Positioner
Products Description
The optimized counterweight contour greatly reduces the turning radius of the vehicle, broadens the side rear and front rear views, and makes driving simple and safe.
The left and right stair handrails, mudguard handrails, together with the anti-skid pedals and anti-skid paper, fully protect the
safety of personnel.
safety of personnel.
|
PERFORMANCES
|
|
|
|
|
|
|||||
|
Model
|
|
CH90/8
|
CH90/7
|
CH80/7
|
CH80/6
|
|||||
|
Load capacity
|
Kg
|
9000
|
9000
|
8000
|
8000
|
|||||
|
Maximum stacking layer
|
|
8
|
7
|
7
|
6
|
|||||
|
Lift speed, laden/unladen
|
m/s
|
0.55 / 0.60
|
0.55 / 0.60
|
0.55 / 0.60
|
0.55 / 0.60
|
|||||
|
Lowering speed, laden/unladen
|
m/s
|
0.60 / 0.60
|
0.60 / 0.60
|
0.60 / 0.60
|
0.60 / 0.60
|
|||||
|
Travel speed, laden/unladen
|
km/h
|
26 / 28
|
26 / 28
|
25 / 27
|
25 / 27
|
|||||
|
Climbing ability, laden/unladen
|
%
|
38 / —
|
38 / —
|
30 / —
|
30 / —
|
|||||
|
Tractive force
|
kN
|
157.5
|
157.5
|
107.5
|
107.5
|
|||||
|
DIMENSIONS
|
|
|
|
|
|
|||||
|
Wheelbase
|
y(mm)
|
4520
|
4520
|
4020
|
4020
|
|||||
|
Height of mast, lowered
|
h1(mm)
|
12399
|
11111
|
11091
|
9600
|
|||||
|
Lift height
|
h3(mm)
|
21400
|
16352
|
16352
|
14000
|
|||||
|
Tilt angle (forward / backward)
|
α/β( / °)
|
3 / 4
|
3 / 4
|
3 / 4
|
3 / 4
|
|||||
|
Height of mast, extended
|
h4(mm)
|
21818
|
19244
|
19204
|
16660
|
|||||
|
Height of cabin
|
h6(mm)
|
4326
|
4326
|
4326
|
4326
|
|||||
|
Height, operator's seat
|
h7(mm)
|
3226
|
3226
|
3206
|
3206
|
|||||
|
Twistlock height, lowered
|
h13(mm)
|
2290
|
2290
|
2290
|
2290
|
|||||
|
Maximum twistlock height
|
h3+h13(mm)
|
21216
|
18642
|
18600
|
16290
|
|||||
|
Overall length
|
l1(mm)
|
6850
|
6850
|
6450
|
6450
|
|||||
|
Length to spreader face
|
l2(mm)
|
6682
|
6682
|
6277
|
6277
|
|||||
|
Overall width
|
b1/b2(mm)
|
4120 / 2570
|
4120 / 2570
|
3627 / 2398
|
3627 / 2398
|
|||||
|
Width of spreader 20'/40'
|
b3(mm)
|
6050 / 12150
|
6050 / 12150
|
6050 / 12150
|
6050 / 12150
|
|||||
|
Turning radius
|
Wa(mm)
|
6300
|
6300
|
5700
|
5700
|
|||||
|
Wheelspan, Front wheels
|
b10(mm)
|
3280
|
3280
|
2880
|
2880
|
|||||
|
Wheelspan, Rear wheels
|
b11(mm)
|
2171
|
2171
|
2068
|
2068
|
|||||
|
ENGINE
|
|
|
|
|
|
|||||
|
Model
|
|
CH90
|
|
CH80
|
|
|||||
|
Engine manufacturer / type
|
|
Cummins / QSB6.7
|
|
Cummins / QSB6.7
|
|
|||||
|
Cylinder number / displacement
|
|
6 / 6700 cm3
|
|
6 / 6700 cm3
|
|
|||||
|
Rated power
|
|
164Kw @ 2200 rpm
|
|
129Kw @ 2200 rpm
|
|
|||||
|
Maximum torque
|
|
949NM @ 1500 rpm
|
|
800NM @ 1500 rpm
|
|
|||||
|
Rated current of alternator
|
|
100 A
|
|
70 A
|
|
|||||
|
Battery
|
|
24 V (2 x 12 /110)
|
|
24 V (2 x 12 /110)
|
|
|||||
|
TRANSMISSION
|
|
|
|
|
|
|||||
|
Model
|
|
CH90
|
|
CH80
|
|
|||||
|
Manufacturer / type
|
|
ZF/3WG211 AUTO
|
|
ZF/3WG211 AUTO
|
|
|||||
|
Clutch - type
|
|
Torque Converter
|
|
Torque Converter
|
|
|||||
|
Transmission
|
|
Auto-shift/ Interlock
|
|
Auto-shift / Interlock
|
|
|||||
|
Gear number
|
|
3 F / 3 R
|
|
3 F / 3 R
|
|
|||||
|
BRAKE SYSTEM
|
|
|
|
|
|
|||||
|
Service brake: Wet-disc
|
|
|
|
|
|
|||||
|
Parking brake: Brake enabled when power of
|
|
|
|
|
|
|||||
|
DRIVE AXLE
|
|
|
|
|
|
|||||
|
Model
|
|
CH90
|
|
CH80
|
|
|||||
|
Driver axle manufacturer
|
|
KESSLER / Germany
|
|
KESSLER / Germany
|
|
|||||
|
Type
|
|
D81PL488 - NLB
|
|
D81PL478 - NLB
|
|
|||||
|
STEER AXLE
|
|
|
|
|
|
|||||
|
Model
|
|
CH90
|
|
CH80
|
|
|||||
|
Steering axle Manufacturer
|
|
OMCI / Italy
|
|
LTMG
|
|
|||||
|
Type
|
|
ASF
|
|
Z16A1
|
|
|||||
|
Steering type-Single cylinder
|
|
Double action cylinder
|
|
Double action cylinder
|
|
|||||
|
TYRES
|
|
|
|
|
|
|||||
|
Drive wheels
|
|
14.00－24 28PR
|
|
12.00－24 24PR
|
|
|||||
|
Steering wheels
|
|
14.00－24 28PR
|
|
12.00－24 24PR
|
|
|||||
|
Type
|
|
Pneumatic tyre
|
|
Pneumatic tyre
|
|
|||||
|
Pressure
|
|
10 bar
|
|
10 bar
|
|
|||||
|
Quantity, Front / Rear
|
|
4 / 2
|
|
4 / 2
|
|
|||||
Container Reach Stacker Feature
1、The cabin adopts the latest ergonomic design ,Simple & elegant, Spacious & comfortable. Equipped with large-color display for easy reading the real status of the truck.
2、Firm cabin design to ensure the safety and comfort of the operator. Good tightness, the doors & windows can be opened & closed easily and firmly. Equipped with multi-function joystick, All the control are at your fingertips.
3、The luxury seat can be adjusted according to the driver's height and weight to ensure the most comfortable driving and high efficiency. he safety glass to ensure the excellent all-round visibility.
4、Equipped with Air-Conditioner with heating function to suit working in all climates.
