- Product Details
- {{item.text}}
Quick Details
-
Jacket:
-
PUR/TPEE/PA/PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KaiMei cable
-
Model Number:
-
RVUT4*0.75
-
Color:
-
Black, Orange,.....
-
Product name:
-
Customized 4*0.75 high elasticity coiled cable
-
Purpose:
-
Electrical equipment, Instrument and instrument
-
Working temperature:
-
-40-+85temperature
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
TPUmassage chair spring wire
-
Conductor Material:
-
Copper
-
Jacket:
-
PUR/TPEE/PA/PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KaiMei cable
-
Model Number:
-
RVUT4*0.75
-
Color:
-
Black, Orange,.....
-
Product name:
-
Customized 4*0.75 high elasticity coiled cable
-
Purpose:
-
Electrical equipment, Instrument and instrument
-
Working temperature:
-
-40-+85temperature
Product Description
Conductor: Bare copper, fine conductor Nominal voltage: 300/500V
Insulation: Core insulation can be from PVC, TPE and EPR TPE/PUR 300V
Other sheath: Can be from PVC, PUR, Neoprene Test Voltage: 2000V
Insulation and sheath colors: Free to choose Temperature range: PVC/PVC spiral -50 degree to 80 degree
Expansion Ratio: PVC/PVC or PVC/PUR spiral approx: 1:4 EPR/PUR spiral -25 to 80 degree
EPR/PUR spiral approx: 1:4 TPE/PUR spiral: -30 to 80 degree
TPE/PUR spiral approx: 1:4
Spiral length unexpanded(mm): Number of conductor: 2 to 12
PVC materials: 200mm to 6000mm Corss section area(square mm): 0.25-2.50
PUR materials: 200mm to 5000mm Cable diameter(mm): 3.50 to 13.50
Spiral outer diameter(mm):13.00 to 66.00
KM Products Show
Our Service
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing & Delivery
Our products are bulk pakced in carton boxes and put on palllets, each standard box for metal parts is max 15-18kg. Small bag package or speical packing way can be done if required, but with extra costs.
UPS, Fedex, DHL or TNT are possible to use for express service, cost depends on weights and volumes of the shipments.
1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
Our Certifications

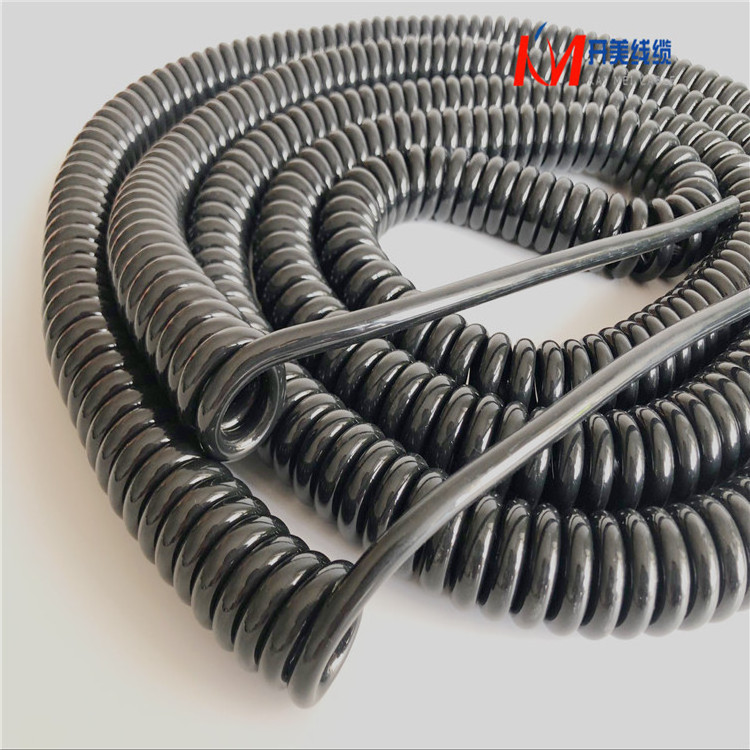

spiral Cable
Spiral Cable
Structure & Specifications:
Conductor: multi-strands copper wire, 7- core 7 * 1.5 mm2
Insulation material: PVC/PE/PP
Sheath material: PU/TPU/PA/PVC
Diameter: 13.5mm
Expanding length: 1.0 m-25.5m
Color: black
Operating temperature: according to customer requirements, cold -65 degrees; temperature 80 degrees, 105 degrees, 125 degrees
Spring Length: arbitrary (customized according to customer requirements)
Good flexibility and elasticity
Elongation length of up to 3.5-4 times the original length of spring. Have good cold resistance, flame resistance, oil and abrasion resistance. Occasions according to different requirements of production of various kinds of spiral-type spring line.
Application:
For rated AC voltage 300/750V or DC voltage 6V-1000V below the required back and forth up and down movement of aggregate assembly circuit wiring.
We are professional and manufacture all kinds of coiled cord, spiral cable, spring cord, retractable wires. We can provide good quality with competitive price.
Structure & Specifications:
Conductor: multi-strands copper wire, 7- core 7 * 1.5 mm2
Insulation material: PVC/PE/PP
Sheath material: PU/TPU/PA/PVC
Diameter: 13.5mm
Expanding length: 1.0 m-25.5m
Color: black
Operating temperature: according to customer requirements, cold -65 degrees; temperature 80 degrees, 105 degrees, 125 degrees
Spring Length: arbitrary (customized according to customer requirements)
Good flexibility and elasticity
Elongation length of up to 3.5-4 times the original length of spring. Have good cold resistance, flame resistance, oil and abrasion resistance. Occasions according to different requirements of production of various kinds of spiral-type spring line.
Application:
For rated AC voltage 300/750V or DC voltage 6V-1000V below the required back and forth up and down movement of aggregate assembly circuit wiring.
We are professional and manufacture all kinds of coiled cord, spiral cable, spring cord, retractable wires. We can provide good quality with competitive price.
