Quick Details
-
Model Number:
-
SN200G-11GB-T4
-
Output Frequency:
-
50/60Hz
-
Size:
-
41*31*30cm
-
Weight:
-
7.2kg
-
Certification:
-
CCC,CE, ISO9001
-
Rated power:
-
11KW
-
Warranty:
-
18 months
-
Digital display:
-
LED
-
Field bus:
-
Modbus CAN link
-
Protection:
-
Overvoltage,overheat,overload
-
Control mode:
-
SVC,FVC,V/F
-

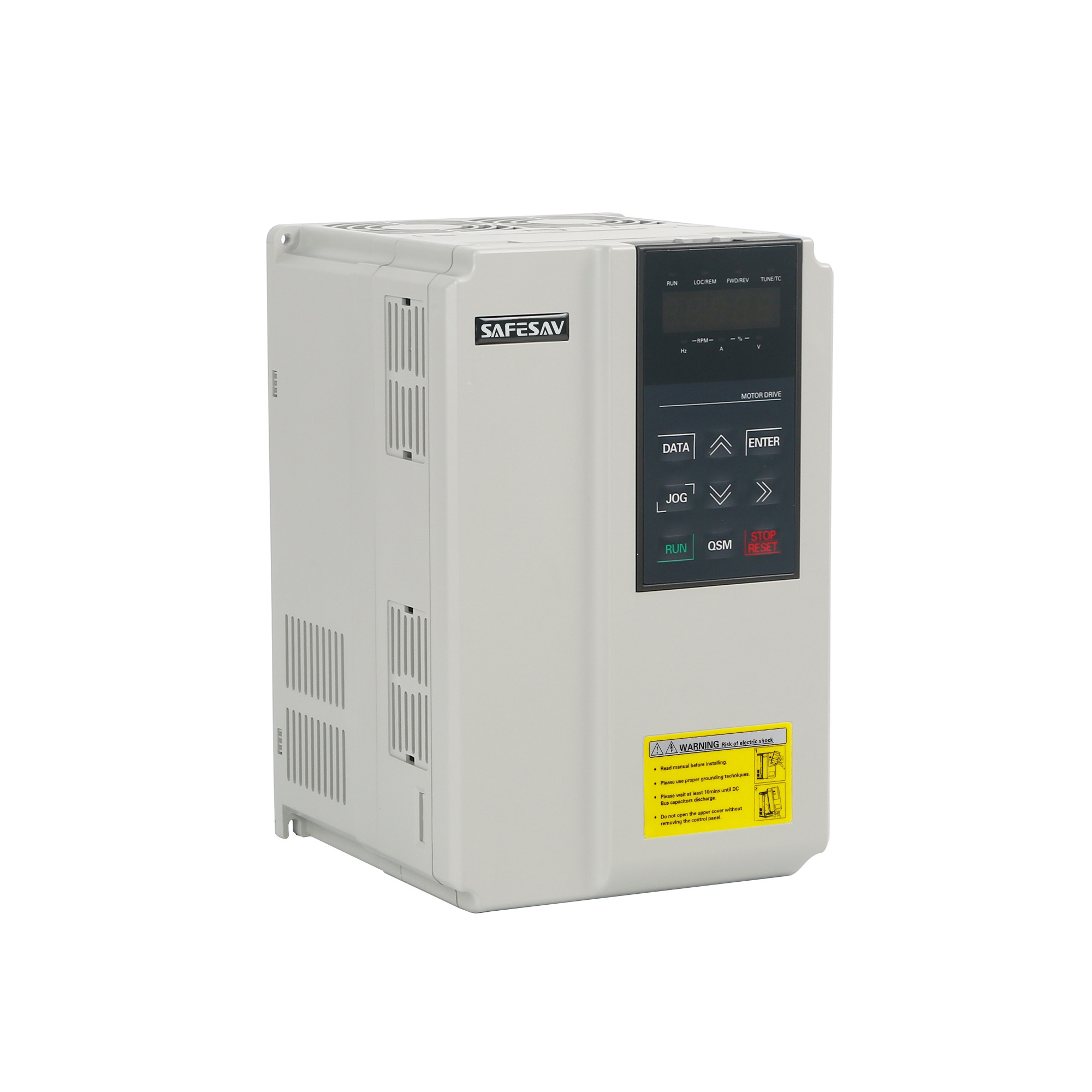

Product name:
-
vfd/frequency inverter/frequency converter
-
Certificate:
-
ISO9001/CE
-
power supply capacity:
-
57kva
Quick Details
-
Output Current:
-
25A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SAFESAV
-
Model Number:
-
SN200G-11GB-T4
-
Output Frequency:
-
50/60Hz
-
Size:
-
41*31*30cm
-
Weight:
-
7.2kg
-
Certification:
-
CCC,CE, ISO9001
-
Rated power:
-
11KW
-
Warranty:
-
18 months
-
Digital display:
-
LED
-
Field bus:
-
Modbus CAN link
-
Protection:
-
Overvoltage,overheat,overload
-
Control mode:
-
SVC,FVC,V/F
-
Product name:
-
vfd/frequency inverter/frequency converter
-
Certificate:
-
ISO9001/CE
-
power supply capacity:
-
57kva
Products Description
SN200G series
SN200G Series has the following general functions:
1) Various voltage levels it supports three voltage levels three phase 220V and three phase 380V.
2)Rich control methods:in addition to the speed sensor vector control, sensorless vector control,V/F control,it also supports V/F separation control.
3) Optional field bus :it supports two kinds of bus-Modbus-RTU and CANlink.
4) Rich types of encoders: it supports differential encoder,open collector encoder,rotary transformer, etc..
5) Brand new sensorless vector control algorithm The new SVC(sensorless vector control) brings better low-speed stability,stronger low-frequency load capacity,and the support for SVC torque control.
6) Strong background software: the background software can achieve the frequency converter parameters of the upload,download real-time oscilloscope and other functions .
|
Function
|
Description
|
|
Restore user parameters
|
This function supports the customer to save or restore the parameters of its own settings
|
|
Display of customized parameters
|
Functional parameters to be displayed for user customization
|
|
Display of revised parameters
|
The user can view the modified function parameters
|
|
Fault processing options
|
According to the needs, the user can determine the operating mode of the frequency converter after a specific fault occurs: free stop, deceleration stop, and continue to run. It is also possible to choose the frequency of the continuing operation.
|
|
PID parameter switching
|
There are two sets of PID parameters, which can be switched by terminal switch or according to the deviation.
|
|
PID feedback on loss detection
|
Setting the PID feedback on loss detection value to realize the protection of the PID during the running.
|
|
DIDO positive and negative logic
|
User-set positive and negative logic of DIDO
|
|
DIDO response delay
|
The user sets the DIDO response delay time.
|
|
Run timing
|
Support timing maximum 6500 minutes for runnning
|
|
Wireless remote control
|
The extended wireless module is used to set and control the remote Parameters.
|
|
DIDO response delay
|
The user sets the DIDO response delay time.
|
|
Run timing
|
Support timing maximum 6500 minutes for runnning.
|
|
Wireless remote control
|
The extended wireless module is used to set and control the remote Parameters.
|
Technical Specifications
|
ltem
|
Specifications
|
|
|
|
Maximum frequency
|
Vector control:0-300Hz
|
|
|
|
|
V/F control:0-3200Hz
|
|
|
|
Carrier wave frequency
|
0.5kHz-16kHz
|
|
|
|
|
The carrier frequency can be automatically adjusted according to the load characteristics
|
|
|
|
Input frequency resolution
|
Digital setting: 0.01Hz
|
|
|
|
|
Analog setting: maximum frequency x 0.025%
|
|
|
|
Control mode
|
Open loop vector control (SVC)
|
|
|
|
|
Closed loop vector control (FVC)
|
|
|
|
Starting Torque
|
Type G machine: 0.5Hz /150% ( SVC);0Hz /180%(FVC)
|
|
|
|
|
Type P machine:0.5Hz / 100%
|
|
|
|
Speed adjusting range
|
1:100(SVC)
|
1:1000(FVC)
|
|
|
Accuracy of speed stability
|
0.5%(FVC)
|
+0.02%(FVC)
|
|
|
Accuracy of torque control
|
+5%(FVC)
|
|
|
|
Overload capability
|
Type G machine: 150% the rated current ,60s; 180% the rated current, 3s.
|
|
|
|
|
Type P machine: 120% the rated current, 60s; 150% the rated current, 3s.
|
|
|
|
Torque lifting
|
Automatic torque lifting; Manual torque lifting 0.1%- 30.0%
|
|
|
|
V/F curve
|
Three types: straight line type; multipoint type; N sub square V/F curve
|
|
|
|
V/F Separation
|
Two types: full separation, semi separation
|
|
|
|
Acceleration and deceleration curve
|
Straight line mode or acceleration and deceleration S curve mode. Four kinds of acceleration and deceleration time.
|
|
|
|
|
Acceleration and deceleration time range 0.0-6500.0s
|
|
|
|
DC brake
|
DC braking frequency: 0.00Hz -maximum frequency
|
|
|
|
|
Braking time: 0.0s-36.0s brake action
|
|
|
|
|
Current value:0.0%100.0%
|
|
|
|
Point dynamic brake
|
Point moving frequency range:0.00Hz-50.00Hz
|
|
|
|
|
Point motion acceleration and deceleration time :0.00s-6500.0s
|
|
|
|
Simple PLC,multi speed
|
Up to 16 segments of speed operation through built-in PLC or control terminal
|
|
|
|
Build-in PID
|
A closed loop control system for convenient realization of process control
|
|
|
|
Automatic voltage regulation
|
When the voltage of the power grid is changed, the output voltage can still be kept
|
|
|
|
Control of over-voltage,overflow and stall.
|
Automatic limit of current and voltage during operation to prevent tripping off for frequent overflowing or over voltage.
|
|
|
|
Fast current limiting function
|
Minimize overcurrent failure and protect the noral operation of the frequency converter.
|
|
|
|
Torque limit and control
|
Excavator characteristics are to limit the torque automatically during the operation and prevent frequent overcurrent tripping, and the closed loop vector mode can realize torque control.
|
|
|
