Quick Details
-
Brand Name:
-
Chinese Brand
-
Fork Length:
-
1070 mm
-
Fork Width:
-
125 mm
-
Overall Dimensions:
-
2800*1225*2140 mm
-
Weight (KG):
-
6400 kg
-
Engine Power:
-
82.5 kW
-
Load center:
-
600 mm
-
Wheelbase:
-
2000 mm
Quick Details
-
Min. Lifting Height:
-
2180mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Chinese Brand
-
Fork Length:
-
1070 mm
-
Fork Width:
-
125 mm
-
Overall Dimensions:
-
2800*1225*2140 mm
-
Weight (KG):
-
6400 kg
-
Engine Power:
-
82.5 kW
-
Load center:
-
600 mm
-
Wheelbase:
-
2000 mm
Contact
Sales Manager
Carlo Zhu
E-mail: carlo@liebty.com
Whatsapp/ Wechat/Mobile: +86 19817179887
Liebty Machinery Technology (Hangzhou) Co., Ltd.
Carlo Zhu
E-mail: carlo@liebty.com
Whatsapp/ Wechat/Mobile: +86 19817179887
Liebty Machinery Technology (Hangzhou) Co., Ltd.
Address: Room 208,Building 3, No.1866, Binxing Road, Changhe street,Bingjiang District,Hangzhou,Zhejiang,China
Products Description

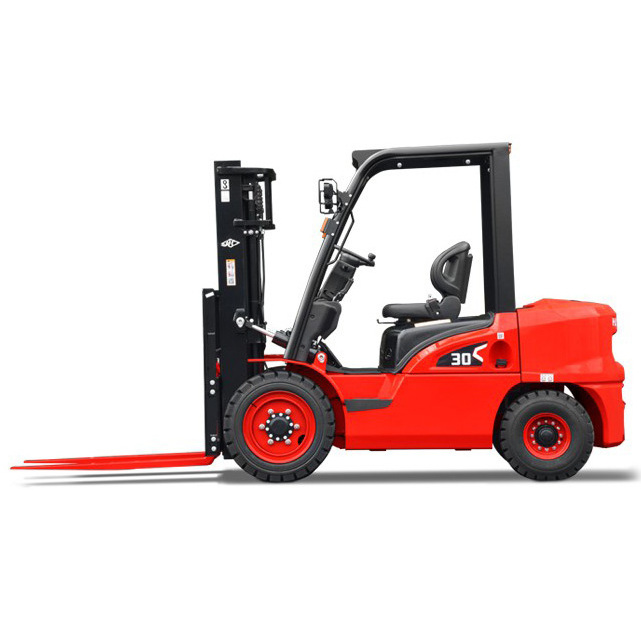

New 3.8 ton diesel forklift CPCD38 with Reasonable Price for Sale
Environmentally Friendly
- The emission meets EC and EPA new regulation.
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmentally friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.
Ergonomics design
- Using power braking system to reduce footplate strength.
- Control lever right located to effectively reduce drivers arm tiredness.
- Dual combined switch lever as a car to enable easy operating.
- Wide mast with good visibility.
- Wide space for boarding and driving, increasing leg space.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
Safety performance
- Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.
- Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.
- Safety device in mast hydraulic system prevents material falling down in case of hose broken.
- High pressure hose is designed far away from the driver.
- Safety wire harness, using waterproof plug.
Specifications
|
Configuration
|
Model
|
|
Unit
|
CPCD38
|
|||
|
Performance
|
Rated load
|
|
|
4000
|
|||
|
|
Load center
|
|
|
500
|
|||
|
|
Free lift
|
|
mm
|
150
|
|||
|
|
Mast tilt angle (front/rear)
|
|
º
|
6/12
|
|||
|
|
Overall dimensions
|
Length(with fork/
without fork) |
mm
|
4145/3075
|
|||
|
|
|
Width
|
mm
|
1480
|
|||
|
|
|
Height
|
mm
|
2270
|
|||
|
|
|
Mast lifting height
|
mm
|
4500
|
|||
|
|
Fork size (L*W*H)
|
|
mm
|
1220x150x50
|
|||
|
|
Min turning radius(inner side/out side)
|
|
mm
|
220/2720
|
|||
|
|
Max travel speed (with load)
|
|
Km/h
|
24
|
|||
|
|
Lifting speed (with load)
|
|
mm/s
|
435
|
|||
|
|
Gradability (with load)
|
|
%
|
20
|
|||
|
|
Weight
|
|
Kg
|
6400
|
|||
|
Tyre
|
Front
|
|
|
2x8.25-15-14PR
|
|||
|
|
Rear
|
|
|
2x7.00-12-12PR
|
|||
|
|
Wheel tread
|
Front
|
mm
|
1180
|
|||
|
|
|
Rear
|
mm
|
1190
|
|||
|
|
Wheelbase
|
|
mm
|
2000
|
|||
|
|
Min ground clearance
|
|
mm
|
175
|
|||
|
Engine
|
Model
|
|
|
XICHAI CA4110
|
|||
|
|
Rated power/rotate speed
|
|
KW/rpm
|
60/2200
|
|||
|
|
Max torque/rotate speed
|
|
Nm/rpm
|
305/1400-1600
|
|||
|
Gearbox
|
Automatic
|
|
|
|
|||
|
Other
|
With 3 stage mast, sideshift
|
|
|
|
|||
