Quick Details
-
Brand Name:
-
seatrend
-
Model Number:
-
ST-MS3
-
Product Name:
-
magnetic strip
-
length:
-
<300m(customized)
-
thickness:
-
0.5-15mm(customized)
-
width:
-
<50mm(customized)
-
Property:
-
isotropic or anisotropic
-
working temperature:
-
80℃
-
Packing:
-
carton box
Quick Details
-
Tolerance:
-
±1%
-
Grade:
-
rubber magnet
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
seatrend
-
Model Number:
-
ST-MS3
-
Product Name:
-
magnetic strip
-
length:
-
<300m(customized)
-
thickness:
-
0.5-15mm(customized)
-
width:
-
<50mm(customized)
-
Property:
-
isotropic or anisotropic
-
working temperature:
-
80℃
-
Packing:
-
carton box

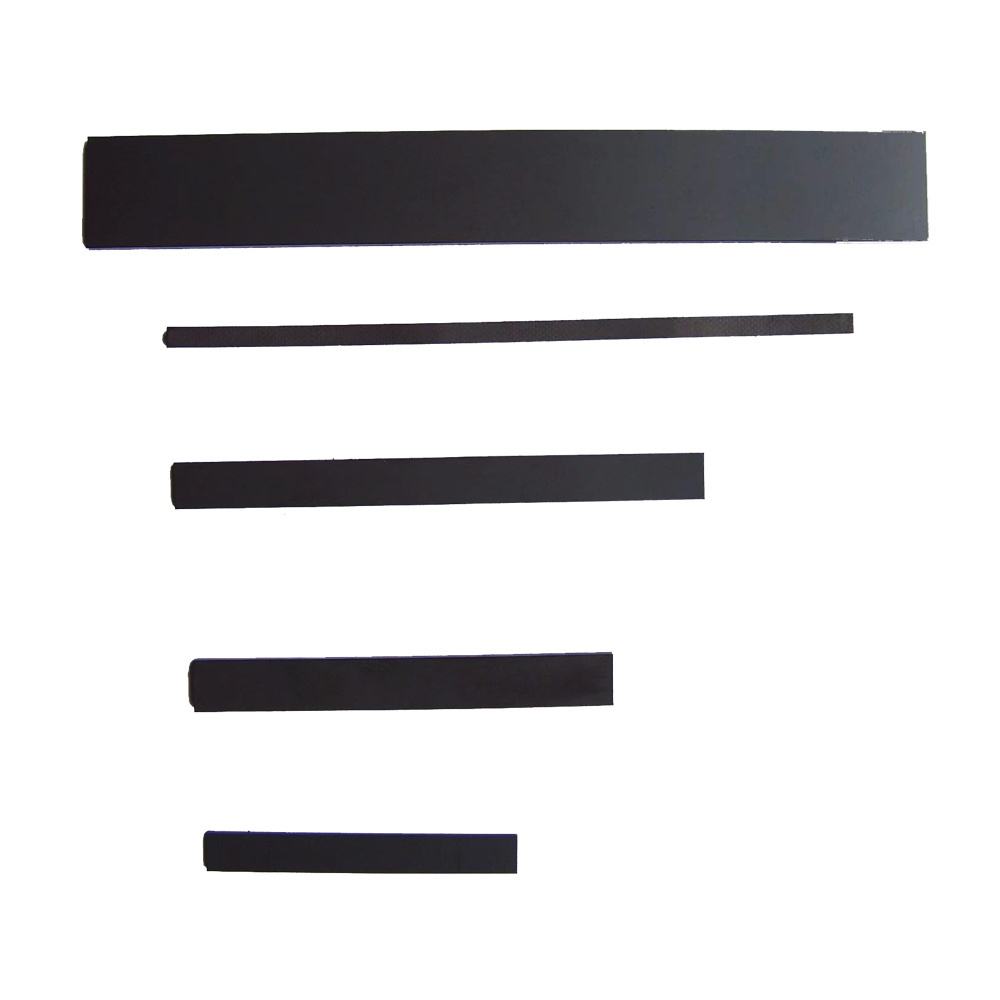

Product Description
Flexible magnetic material is made by mixing ferrite magnet powder with plastic or synthetic rubber (CPE).lt has permanent magnetic property with excellent flexibility characteristic.it can be easily cut,slit,punched,folded and twisted without damaging the magnetic properties.
Flexible magnetic material can be classified as standard energy and high energy according to their property.You can request customization based on your own attributes and thickness
|
Product Name
|
magnetic strip
|
Material
|
Rubber magnetic strip, double-sided adhesive
|
|
Length
|
<300m(customized)
|
Thickness
|
0.5-15mm(customized)
|
|
Width
|
<50mm(customized)
|
Property
|
isotropic or anisotropic
|
|
working temperature
|
80℃
|
Packing
|
carton box
|
Magnets + Adhesive Tape
A lot kinds of adhesive tape like water-based,solvent,rubber or foam can be laminated on the non-magnetized side.Then you can adhere anything on the magnet and stick it onto fridge,file cabi-nets,or any metal surfaces
Cut Magnets
Plain rubber magnet or magnet with adhesive can beg cut:to precut some small pieces in a roll or big sheet When using,the consumer just needs to peel off the small pieces from the roll/sheet,this kind of product is easy to pack and use
|
physical properties of Magnetic Strips
|
|
|
|
|
||||
|
Item No.
|
Test items
|
Unit
|
Property Values
|
Test Conditions
|
||||
|
1
|
Tensile strength
|
Kg/cm²
|
≥ 45
|
GB1040
|
||||
|
2
|
Break Extend Rate
|
%
|
≥ 50%
|
GB1040
|
||||
|
3
|
Hardness
|
(HS)A
|
94～98
|
GB2411
|
||||
|
4
|
Turnover
|
iHc
|
180°
|
No crack
|
||||
|
5
|
Flexibility
|
Mm
|
≤ φ20
|
|
||||
|
6
|
Density
|
g/cm2
|
3.5～3.8
|
GB1033
|
||||
|
Magnetic properties of Magnetic Strips
|
|
|
|
|||
|
Item No.
|
Test items
|
Unit
|
Property Values
|
|||
|
1
|
(Remanence)Br
|
Gs(mT)
|
≥ 1550 （ 123.4 ）
|
|||
|
2
|
(Coercive)nHc
|
Oe(KA/m)
|
≥ 1300 （ 130.5 ）
|
|||
|
3
|
(Max:Energy products)(BH)max
|
MGOe(KJ/m³ )
|
0.5 （ 4.0 ）
|
|||
Crafts, toys, games, magnetic signs, displays, production control (or visual aid) systems, warehouse shelf labeling, door gaskets, door and cabinet closures, small tool and instrument holders, movable markers, advertising premiums, magnetic business cards, architectural planning layouts, etc.
Home use
For keep your stuff in the right place such as remote controller, tools kit, decorating etc.
Office use
Applying as a document label, or stick it at memo note, calendar etc.
Industry use
Applying as a stock label or stick at bulletin board.
Educational use
Applying for instruction equipment or as a material for invention.
