Quick Details
-
Model Number:
-
JUC-5818-20
-
Certificate:
-
Solar Keymark EN12975
-
Vacuum tube material:
-
Borosilicate glass 3.3
-
Vacuum tube:
-
20
-
Manifold casing:
-
Aluminium Alloy
-
Insulation layer:
-
Rock wool
-
Frame:
-
Alumimum Alloy
-
Heat transfer fin:
-
United aluminium sheet
-
Working pressure:
-
6 Bar
-
Size:
-
58mm*1800mm
-
u-pipe:
-
Red pipe
Quick Details
-
Pipe Material:
-
Glass
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Jinyi
-
Model Number:
-
JUC-5818-20
-
Certificate:
-
Solar Keymark EN12975
-
Vacuum tube material:
-
Borosilicate glass 3.3
-
Vacuum tube:
-
20
-
Manifold casing:
-
Aluminium Alloy
-
Insulation layer:
-
Rock wool
-
Frame:
-
Alumimum Alloy
-
Heat transfer fin:
-
United aluminium sheet
-
Working pressure:
-
6 Bar
-
Size:
-
58mm*1800mm
-
u-pipe:
-
Red pipe

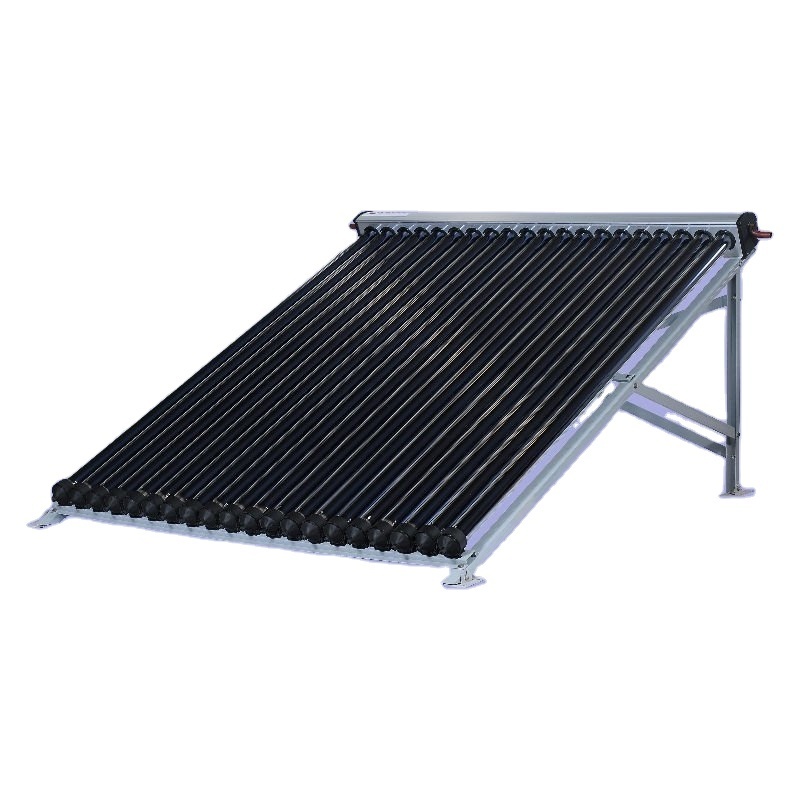

20 Tubes High efficiency Anti-freezing vacuum Tube U pipe Solar Collector
In each vacuum tube there is a U pipe with direct flow-through that is connected to the header pipe inside manifold.This U pipe is seamed in an aluminium heat transfer fin in the interior of vacuum tube that transmits the heat from the interior tube to the U pipe.The liquid(usually) a glycol-water antifreeze micture) in the metal Upipe is heated,and conducts the heat energy to the water inside the storage tank plate exchanger or intermal spiral copper coils.
1,Working principle
2,Key Features:
•Internationally certified product
•Reliable, efficient, twin-glass evacuated tubes
•Average 25% more energy output than flat plate collectors
•Copper heat pipes for rapid heat transfer
•3/4" copper head connections
•Corrosion resistant silver brazed copper header with only four braze points
•Recycled glass wool manifold insulation
•Low heat loss
•Efficient performance at high differential temperatures
•Easy plug-in installation
•Maintenance Free
•Cyclone rated frame options available
•Suitable for mains pressure water (up to 8 bar/116psi)
•Option of all stainless steel frame (439 grade SS), or high strength anodized aluminium
•Anodized aluminium manifold casing
•Environmentally friendly manufacturing process
Parameter table
| Model | JUC-5818-20 | ||||||||
| Numbers of Tubes | 20 (options:8,10,12,15,18,20) | ||||||||
| Dimension & Testing Data | |||||||||
| Length | 1.97 m | ||||||||
| Width | 1.475 m | ||||||||
| Absorber area | 1,449 | ||||||||
| Inlet/outlet Connection | 22mm | ||||||||
| Working/Testing pressure | 6 bar/12 bar | ||||||||
| Max Testing Pressure | 12 bar | ||||||||
| Stagnation Temperature | 221°C | ||||||||
| Packing Dimension & Weight | |||||||||
| Manifold and U-pipe Packing | 2020*1550*190mm | ||||||||
| Tubes Packing | 1880*340*250mm | ||||||||
| Total Packing Volume | 0.68m3 | ||||||||
| Weight | 55kgs | ||||||||
| Certificates | EN12975-1,2 SOLAR KEYMARK,SRCC.CE,ISO9001 | ||||||||
| Material | |||||||||
| Evacuated Tube | High borosilicate glass 3.3, thickness:1.6mm | ||||||||
| Size | 58*1800mm | ||||||||
| Coating | ALN/SS-ALN/CU (Three target vacuum tube) | ||||||||
| U Pipe Material | TP2 copper | ||||||||
| U Pipe Length | 1750mm | ||||||||
| U Pipe Diameter | 8mm,thickness:0.6mm | ||||||||
| Manifold Header Pipe | TP2 copper 22mm, thickness 1.0mm | ||||||||
| Manifold Casing | Anodized aluminum alloy,thickness:2.0mm | ||||||||
| Frame/bracket | Aluminium alloy,1.5mm | ||||||||
| Insulation | Rock wool | ||||||||
| Tube Holder/ Seals | UV stabilized nylon/ Silicon seal | ||||||||
| Sheets | Material:Aluminum 3003,Length:1620m,thickness:0.25mm | ||||||||
| Limited Warranty | 10years | ||||||||
