Quick Details
-
Brand Name:
-
HBYB
-
Model Number:
-
HBCMF
-
Product Name:
-

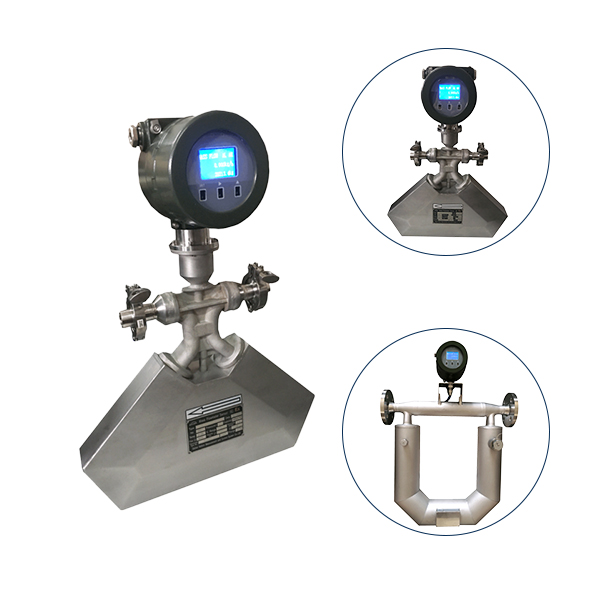

Coriolis Mass Flow Meters
-
Medium:
-
Chemical/Fuel/Food/Petroleum/Lipids/Pharmaceutical/Painting
-
Caliber range:
-
DN3-DN200
-
Working pressure:
-
0~4.0MPa
-
Range:
-
0.3~3.000g/cm3
-
Temperature measuring range:
-
-200~350℃
-
Ambient temperature:
-
-20℃~60℃
-
Explosion-proof level:
-
Exd (ia) C T6Gb
-
Material:
-
The measuring tube SS316L Housing: SS304
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
12months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HBYB
-
Model Number:
-
HBCMF
-
Product Name:
-
Coriolis Mass Flow Meters
-
Medium:
-
Chemical/Fuel/Food/Petroleum/Lipids/Pharmaceutical/Painting
-
Caliber range:
-
DN3-DN200
-
Working pressure:
-
0~4.0MPa
-
Range:
-
0.3~3.000g/cm3
-
Temperature measuring range:
-
-200~350℃
-
Ambient temperature:
-
-20℃~60℃
-
Explosion-proof level:
-
Exd (ia) C T6Gb
-
Material:
-
The measuring tube SS316L Housing: SS304
Product Information
Product Details
Featuer:
1. Unchallengeable MTCMF performance on liquid mass flow, volume flow, and density measurement;
2. Unique design delivers unparalleled measurement sensitivity and stability;
3. Guarantees consistent, reliable performance over the widest flow range;
4. Designed to minimize process, mounting, and environmental effect.
|
Display:
|
128x64 LCD display, Window size: 54x40mm (WxH) Φ80mm
|
|
Display Accuracy:
|
0.2%;0.3%
|
|
Unit:
|
Mass flow rate: g/h,kg/h,t/h,g/m,kg/m,t/m
Total flow: g, kg, t Volume flow rate: cm3/h,dm3/h,m3/h,cm3/m,dm3/m,m3/m Total volume: cm3/m,dm3/m Density: kg/m3,g/cm3 Temperature: ℃,K,℉ |
|
Ambient Temperature:
|
-20℃~+60℃
|
|
Output Signal:
|
0~10000Hz pulse frequency signal flow signal (open collector signal)
Equivalent pulse signal flow signal 4~20mA Current signal choose one signal from flow rate,density,temperature Current output load capacity is not less than 750Ω(24VDC power) Accuracy: Pulse signal 0.05% Current signal 0.2% Communication signal: RS485,MODBUS protocol,Hart |
|
Power Supply:
|
18~36VDC power≥7W
85~265VAC power: 10W |
|
Protection:
|
Protection: IP67
Ex-proof: Ex d [ia]ⅡCT6Gb |
|
Dimension:
|
Φ125×180mm
|
|
GW
:
|
2.7kg
|
Sensor Structure:
①
Supporting structure
:
the measuring tube fixed on the supporting structureas the vibrating axis.
②
The measuring tube (Vibrating tube)
:
consist of two parallel tubes.
③
Position detector:
used for the measurement of measuring tube distortion.
④
Drive device:
generate electromagnetic force to drive measuring tube tomake it vibrate close to resonance frequency.
⑤
Housing:
Protect the measuring tube, driving unit and detector.
Application:
1.Chemical: containing chemical reaction system Petroleum: moisture content analysis
2. Lipids: including vegetable oils, animal fats and other oils
3. Pharmaceutical
4. Painting
5. Paper making
6. Textile printing and dyeing
7. Fuel: crude oil, heavy oil, coal slurry, lubricant and other fuels.
8. Food: gas dissolving beverage, health drink and other liquid.
9. Transportation: pipeline liquid measurement.
10. Low temperature fluid, like liquid oxygen and liquid nitrogen, the low temperature up to -200℃
11. High temperature fluid, the maximum temperature up to 300℃
12. High pressure fluid, like slurry flow measurement for oil drilling cementing
|
Dimension and Measuring Range
|
|
|
|
|
|
|
|
|
||||||||
|
Specification
|
DN
(mm)
|
Flow range
(kg/h)
|
Zero Stability, kg/h
|
|
|
Rated
Pressure
(MPa)
|
NW
(kg)
|
GW
(kg)
|
||||||||
|
|
|
|
0.2%
|
0.15%
|
0.1%
|
|
|
|
||||||||
|
HBCMF-003
|
3
|
0~96~120
|
0.018
|
0.012
|
0.012
|
40
|
8
|
19
|
||||||||
|
HBCMF-006
|
6
|
0~540~660
|
0.099
|
0.066
|
0.066
|
20
|
12
|
22
|
||||||||
|
HBCMF-008
|
8
|
0~960~1200
|
0.18
|
0.12
|
0.12
|
20
|
12
|
23
|
||||||||
|
HBCMF-010
|
10
|
0~1500~1800
|
0.27
|
0.18
|
0.18
|
20
|
11
|
24
|
||||||||
|
HBCMF-015
|
15
|
0~3000~4200
|
0.63
|
0.42
|
0.42
|
20
|
12
|
25
|
||||||||
|
HBCMF-020
|
20
|
0~6000~7800
|
1.17
|
0.78
|
0.78
|
16
|
20
|
34
|
||||||||
|
HBCMF-025
|
25
|
0~10200~13500
|
2.025
|
1.35
|
1.35
|
16
|
21
|
35
|
||||||||
|
HBCMF-032
|
32
|
0~18 000~24 000
|
3.6
|
2.4
|
2.4
|
16
|
27
|
45
|
||||||||
|
HBCMF-040
|
40
|
0~30 000~36 000
|
5.4
|
3.6
|
3.6
|
12
|
35
|
55
|
||||||||
|
HBCMF-050
|
50
|
0~48 000~60 000
|
9
|
6
|
6
|
12
|
40
|
60
|
||||||||
|
HBCMF-080
|
80
|
0~120 000~160 000
|
24
|
16
|
16
|
8
|
90
|
150
|
||||||||
|
HBCMF-100
|
100
|
0~222 000~270 000
|
40.5
|
27
|
27
|
8
|
170
|
245
|
||||||||
|
HBCMF-150
|
150
|
0~480 000~600 000
|
90
|
60
|
60
|
6
|
255
|
350
|
||||||||
