Quick Details
-
Brand Name:
-
wanshan
-
Weight:
-
4300 kg
-
Product name:
-
Raw Material weighing and batching machine
-
Productivity:
-
25m³/h - 160m³/h
-
Control system:
-
Automatic Control System
-
Discharging Height:
-
4.2m
-
Storage Materials:
-
Aggregate: Sand
-
Batching Machine:
-
3 Bins Aggregate Batching Machine
-
Cement silo:
-
50t/100t/150t.customized
-
Silo Materials:
-
High-quality Steel
-
Theoretical production rate:
-
40M /h
-
Theoretical productivity:
-
35C BM/h
Quick Details
-
Machine Type:
-
Batching machine
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wanshan
-
Weight:
-
4300 kg
-
Product name:
-
Raw Material weighing and batching machine
-
Productivity:
-
25m³/h - 160m³/h
-
Control system:
-
Automatic Control System
-
Discharging Height:
-
4.2m
-
Storage Materials:
-
Aggregate: Sand
-
Batching Machine:
-
3 Bins Aggregate Batching Machine
-
Cement silo:
-
50t/100t/150t.customized
-
Silo Materials:
-
High-quality Steel
-
Theoretical production rate:
-
40M /h
-
Theoretical productivity:
-
35C BM/h

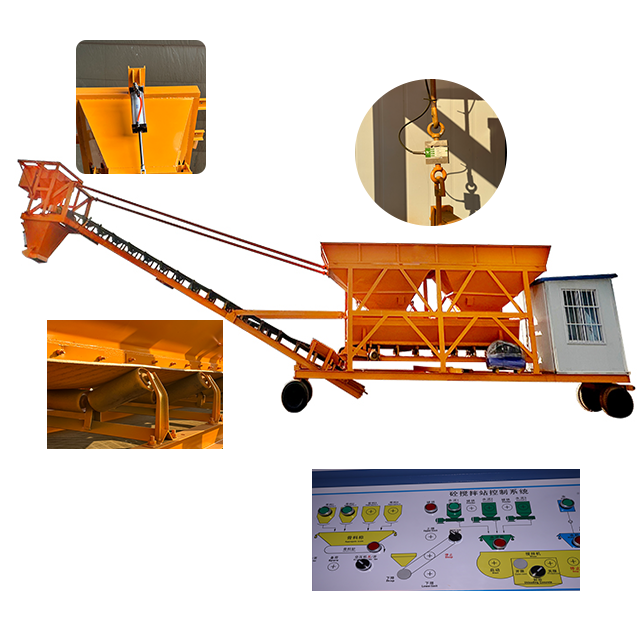

Concrete Weighing and Batching
Through ingenious design, the
batching system
,
weighing system
,
mixing host
,
storage
,
unloading and automatic control system
of the batching plant are concentrated in one trailer unit, and the movement of the batching plant is realized
through the trailer
. It also has the advantages of flexible movement, simple and quick disassembly and assembly, and stable performance. For on-site engineering such as railways, highways, ports, bridges, hydro power projects, etc.
|
Model |
HZS20 |
HZS30 |
HZS60 |
HZS100 |
|
Production capacity (m3/h) |
20 |
30 |
60 |
100 |
|
Concrete mixer |
JZM500 |
JZM750 |
JZM1500 |
JZM2000 |
|
Aggregate feeding mode |
Belt conveyor |
Belt conveyor |
Belt conveyor |
Belt conveyor |
|
Aggregate size(mm) |
80/60 |
80/60 |
80/60 |
80/60 |
|
Discharging height(m) |
4.2 |
4.2 |
4.2 |
4.2 |
|
Aggregate weighing accuracy (%) |
±2 |
±2 |
±2 |
±2 |
|
Cement weighing accuracy (%) |
±1 |
±1 |
±1 |
±1 |
|
Water weighing accuracy (%) |
±1 |
±1 |
±1 |
±1 |
|
Additive weighing accuracy (%) |
±1 |
±1 |
±1 |
±1 |
|
Control system |
Panel |
Computer |
Computer |
Computer |
|
Total power (kw) |
42 |
46 |
67 |
77.5 |
|
Total weight(tons) |
12 |
13 |
14.5 |
26 |
