- Measure: L101.7xW50.8xH27
- Weight: 180g
- Customized solution: OEM/ODM
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
CHANGBAO
-
Model Number:
-
CB225
-
Input voltage and current:
-
Universal 90 - 264VAC or 127 - 370VDC / 3A
-
output voltage and current:
-
12V-54V / 2A-18.75A
-
Maximum Output Power:
-
225W
-
Place of Origin:
-
Guangdong, China
-
Energy level:
-
Eup 2.0, Doe VI, CEC VI, CoC V
-
Efficiency:
-
>91%
-
Input terminal:
-
JST, lead wires or other
-
Output terminal:
-
JST, lead wires or other
-
Certification:
-
ETL CE FCC RoHS UKCA
-
Size:
-
L101.6 *W50.8 *H25.4 mm
-
Weight:
-
180g
-
Cooling way:
-
Air cooling / 13CFM
-
warranty:
-
24 Months
Quick Details
-
Type:
-
Electric, Power Supply Adapter, Universal Adapter, Desktop Charger, Switching Power Supply
-
Port:
-
DC
-
Material:
-
PCB board
-
Brand Name:
-
CHANGBAO
-
Model Number:
-
CB225
-
Input voltage and current:
-
Universal 90 - 264VAC or 127 - 370VDC / 3A
-
output voltage and current:
-
12V-54V / 2A-18.75A
-
Maximum Output Power:
-
225W
-
Place of Origin:
-
Guangdong, China
-
Energy level:
-
Eup 2.0, Doe VI, CEC VI, CoC V
-
Efficiency:
-
>91%
-
Input terminal:
-
JST, lead wires or other
-
Output terminal:
-
JST, lead wires or other
-
Certification:
-
ETL CE FCC RoHS UKCA
-
Size:
-
L101.6 *W50.8 *H25.4 mm
-
Weight:
-
180g
-
Cooling way:
-
Air cooling / 13CFM
-
warranty:
-
24 Months
Details Images

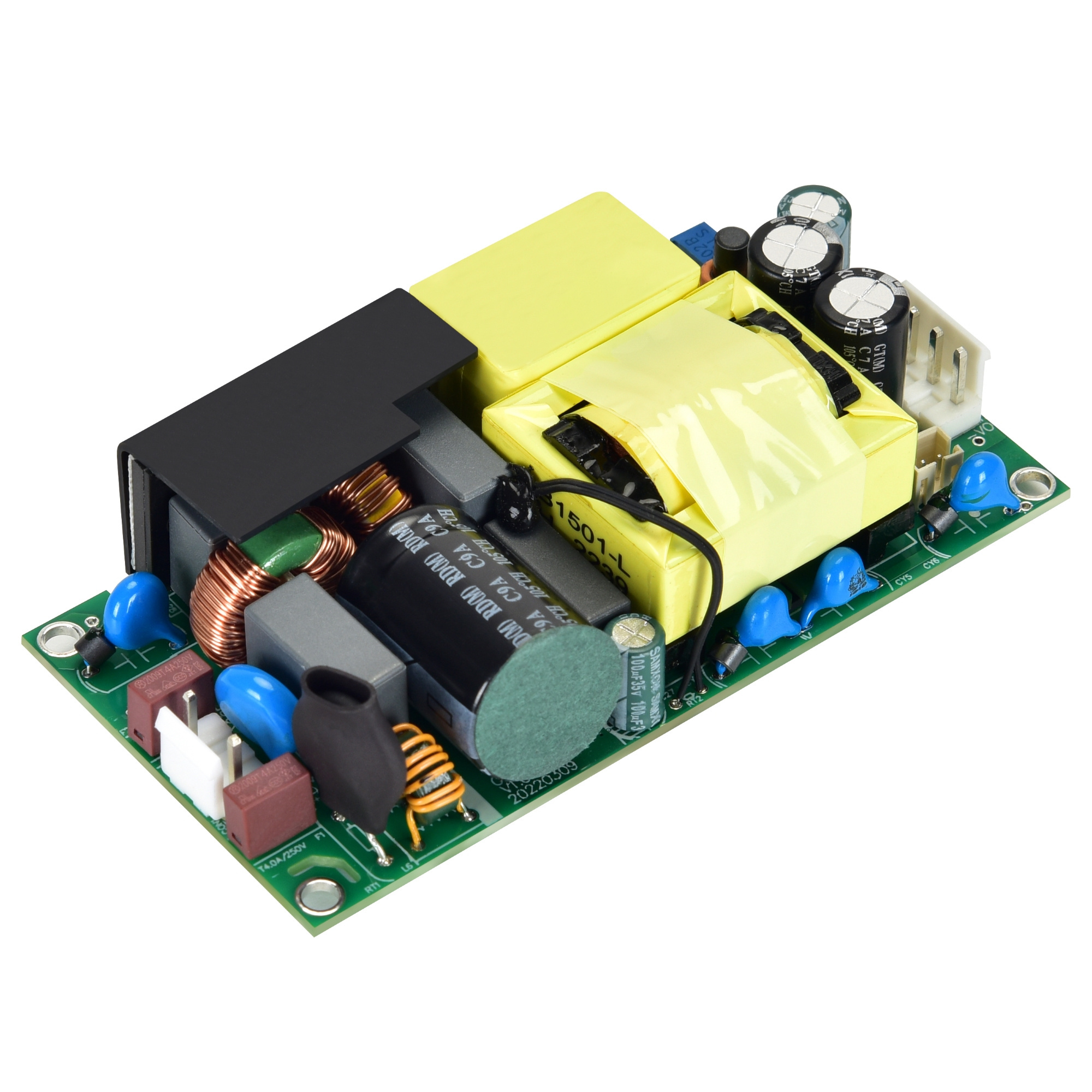

225W Switching Power Supply
-
Input:
90 - 264VAC or 127 - 370VDC
- Output:
12V/24V/27V/36V/48V/54V 225W
max +/-5% tolerance
- Safety: OCP/OVP/OTP, SCP, automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off.
- Wide compatibilities: LED Strips, 3D Printer, ham radio transceiver, CCTV cameras, car subwoofer amp, audio amplifier, wireless router, ADSL Cats, HUB, audio/ video power supply. Indoor use only.
- Safety: OCP/OVP/OTP, SCP, automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off.
- Wide compatibilities: LED Strips, 3D Printer, ham radio transceiver, CCTV cameras, car subwoofer amp, audio amplifier, wireless router, ADSL Cats, HUB, audio/ video power supply. Indoor use only.
Products Description
-
-
Mechanical Details
|
Item
|
|
225W Open Frame Power Supply
|
|
|
Model
|
Compatible Battery
|
CB-SxxxYYY
|
|
|
INPUT
|
Input
|
90 - 264VAC or 127 - 370VDC
|
|
|
Charing output
|
Output
|
12V/15V/24V/27V/36V/48V/54V @4A-18.75A, 140W&225W
|
|
|
Features
|
Ripple & Noise
|
<250mV
|
|
|
Charging
|
Energy star level
|
Eup 2.0, Doe VI, CEC VI, CoC V
|
|
|
|
Efficiency
|
>91%
|
|
|
|
Installing
|
Available for the system of Safety Class I/II
|
|
|
Environment
|
Operation Temp
|
-10 ~ +65℃, 10 ~ 95% RH non-condensing
|
|
|
|
Storage Temp
|
-20 ~ +85℃ (Refer to "Derating Curve")
|
|
|
|
Storage Humidity
|
20 ~ 90% RH non-condensing
|
|
|
|
Vibration
|
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
|
|
|
|
Cooling Method
|
by NTC (natural cooling)
|
|
|
Safety&EMC
|
Safety Standard
|
UL 62368, ETL 62368, EN 62368, EN 61558, EN 60335
|
|
|
|
Safety Approvals
|
UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
information, please contact us. |
|
|
|
EMC Stardard
|
EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020
|
|
|
|
MTBF
|
200K hrs min. MIL-HDBK-217F (25℃)
|
|
|
Machanicals
|
Pin location
|
Molex &JST pin connector, or lead wires or others
|
|
|
|
Dimension
|
101.7x50.8x27mm (LxWxH)
|
|
|
|
Packing
|
180g; 60pcs/14.5Kg/0.056CBM
|
|
Packing & Delivery
FQA:
Q1: What is the warranty for your product?
A1: We guaranteed for 24 months, any quality problem happened in this period of time for our reason, we will send the replacement parts in next order.
Q2: How soon can I get samples for test to check quality?
A2: We can provide 1-3pcs free samples. The lead time for our regular products is 3-5 days. For customized products need 2-3 weeks. We will also customized nice product to meet your requirement.
Q3: Can you accept OEM&ODM service business?
A3: Yes, we can. Our month supply ability is 500000pcs. Our R&D team can customize the special product as your needs. You can visit our website to learn more about our excellent R&D team, and you will believe you can get satisfied product.
Q4: Do you accept small quantity orders?
A4: Yes, we accept. But no doubt that the more the amount of you order, you will get more discounts if you have a regular monthly order volume, we also would like to give you the appropriate discount.
Q5:Why should you buy from us not from other suppliers?
Specialized in battery charger, power adapter and OEM/ODM, 22 senior engineers and Integrity, Innovation, Professionalism, Focus, Good quality, Customer first, Quick response. Universal approvals: UL/cUL, ETL, CE, GS, FCC, RoHS, PSE, KC, CCC, RCM, CB...
Q6: What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency:USD/EUR/HKD/CNY
Accepted Payment Type: T/T, L/C, PayPal
