5-axis CNC milling machine manufacturer VMC1680 horizontal vertical machining center milling machine large machining center
5-axis CNC milling machine manufacturer VMC1680 horizontal vertical machining center milling machine large machining center
5-axis CNC milling machine manufacturer VMC1680 horizontal vertical machining center milling machine large machining center
5-axis CNC milling machine manufacturer VMC1680 horizontal vertical machining center milling machine large machining center
5-axis CNC milling machine manufacturer VMC1680 horizontal vertical machining center milling machine large machining center
5-axis CNC milling machine manufacturer VMC1680 horizontal vertical machining center milling machine large machining center
5-axis CNC milling machine manufacturer VMC1680 horizontal vertical machining center milling machine large machining center
5-axis CNC milling machine manufacturer VMC1680 horizontal vertical machining center milling machine large machining center

5-axis CNC milling machine manufacturer VMC1680 horizontal vertical machining center milling machine large machining center

FOB Reference Price: Get Latest Price
≥1 Sets
US $50000
≥5 Sets
US $49000
≥10 Sets
US $48000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Table Travel (Y) (mm):
800mm
Spindle Taper:
ISO 7:24 No. 40, BT50
Dimension(L*W*H):
480*320*320cm
Weight (T):
12 T
Table Travel (Z) (mm):
800mm
Range of Spindle Speed(r.p.m):
1 - 8000 r.p.m
Spindle Motor Power(kW):
15-18.5
Max. Table Load(kg):
1600 kg
Feed Speed(mm/min):
1 - 10000 mm/min
Rapid Feed Speed(m/min):
24000
Place of Origin:
Jiangsu, China
Brand Name:
Leadewii
Voltage:
220/384V
Marketing Type:
New Product 2022
Product name:
VMC-1680HL CNC Machining Center
X/Y/Z Axis Travel(mm):
1600/800/800mm
Spindle Speed(r.p.m):
10000rpm
Max. Table Load(KG):
12000KG
Spindle Motor Power(KW):
15-18.5KW

Quick Details

Table Size (mm):
1700x800
Number of Axes:
3, 4, 5
Table Travel (X) (mm):
1600mm
Table Travel (Y) (mm):
800mm
Spindle Taper:
ISO 7:24 No. 40, BT50
Dimension(L*W*H):
480*320*320cm
Weight (T):
12 T
Table Travel (Z) (mm):
800mm
Range of Spindle Speed(r.p.m):
1 - 8000 r.p.m
Spindle Motor Power(kW):
15-18.5
Max. Table Load(kg):
1600 kg
Feed Speed(mm/min):
1 - 10000 mm/min
Rapid Feed Speed(m/min):
24000
Place of Origin:
Jiangsu, China
Brand Name:
Leadewii
Voltage:
220/384V
Marketing Type:
New Product 2022
Product name:
VMC-1680HL CNC Machining Center
X/Y/Z Axis Travel(mm):
1600/800/800mm
Spindle Speed(r.p.m):
10000rpm
Max. Table Load(KG):
12000KG
Spindle Motor Power(KW):
15-18.5KW
Products Description

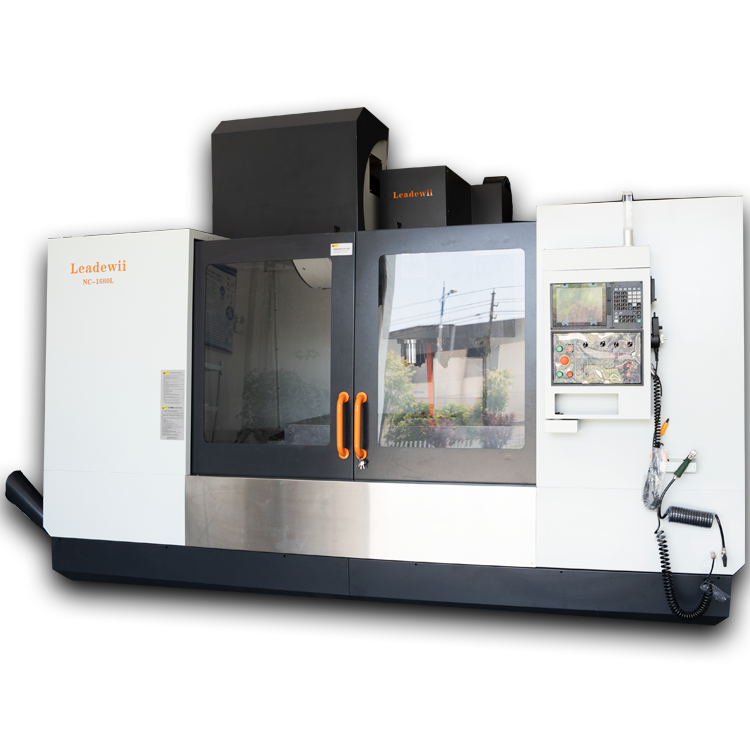

HIGH EFFICIENCY C NC MACHINING CENTER
VMC-1680HL
Standard Configuration
Japan FANUC Oi MF PIus Controller
5-axis 4-link function opening
High speed and high precision AICC1
Tool magazine automatic reset Machining mode selection System energy saving mode Screen customization Full cover type shroud Chain type automatic chip removal Automatic lubrication system Ground bolts and pads BT50 Belt spindle 6000rpm BT50-24T robotic tool magazine Spindle oil cooler Z-axis nitrogen counterweight
The key components of this machine, such as the bed, column, and spindle box, are all made of high-precision castings, which have a stable structure and permanently maintain quality. Castings undergo finite element analysis and computer calculation analysis, with reasonable structural strength and reinforcement rib combination, providing high mechanical rigidity. The casting structure adopts integrated molding technology, and the box structure is processed using a large pentahedral machining machine, which is completed in one clamping process. The machine tool has high rigidity, high strength, and excellent geometric positional accuracy. And it can ensure the long-term stability and high precision of the machine tool. In addition, to prevent deformation after processing, castings are thoroughly annealed to eliminate internal stress. The base is wide, and the columns are a triangular box shaped structure. The design is fully supported under heavy loads, and the structure is solid, ensuring the heavy load during processing load capacity, low vibration and noise during high-speed cutting. The symmetrical design on both sides of the column balances the weight, ensuring stable accuracy of the machine tool.
Details Images
Model
VMC-1680HL
X/Y/Z axis travel
mm
1600/800/700
Distance from spindle nose to table surface
mm
150-850
Distance from spindle center to column guideway surface
mm
937.5
Spindle nose taper
BT50
Spindle motor power
kw
15-18.5
Spindle motor torque
N.m
143.3
Tool magazine type
knife-arm type
Number of tools
pcs
24
Max. tool diameter / adjacent no tool
mm
110/200
Max. tool length
mm
350
Max. tool weight
Kg
15
X/Y/Z axis motor torque
N.m
36.0/36.0/36.0
X/Y/Z axis motor power
Kw
3.0/3.0/3.0
Table area
mm
1700×800
Max. table load
Kg
1600
T-slot (slot X width X center distance)
mm
5*18*150
X-axis rapid traverse
m/min
20
Y-axis rapid traverse····
m/min
20
Z-axis rapid traverse
m/min
20
Cutting feed rate
mm/min
1-10000
Positioning accuracy
mm
±0.005/300mm
Repeatable positioning accuracy
mm
±0.003/300mm
Controller
Fanuc
0i MF Plus
Machine weight
Kg
16800
Power Requirement
KVA
40
Tank capacity
L
200
Air Pressure Source
Kg/cm2
6.0
Machine Height
mm
3100
Space
mm
4800*3600
High Speed BT50 Spindle
High Precision Frame
Famous Brand OKADA 24 PCS ATC
CNC Controller Mitsubishi
PMI/HIWIN Linear Rolling Guideway
Taiwan Pneumatic Cylinder
