Quick Details
-
Warranty:
-
1 year, 12 Months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Aicrane
-
Model Number:
-
EL
-
Product name:
-
10KN 20KN 50KN 80KN 100KN electric anchor mooring capstan
-
Power Supply:
-
Eectric,Hydraulic, diesel and hand
-
Material:
-
Q235B/Q345B
-
Color:
-
Customized
-
Package:
-
Plywood Cases
-
Certification:
-
BV, DNV , ABS etc, ISO, CE
-
MOQ:
-
1 SET
-
Feature:
-
Safety
-
Name:
-
Electric Winch
Quick Details
-
Power Source:
-
Electric
-
Application:
-
BOAT
-
Capacity:
-
5~650KN
-
Warranty:
-
1 year, 12 Months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Aicrane
-
Model Number:
-
EL
-
Product name:
-
10KN 20KN 50KN 80KN 100KN electric anchor mooring capstan
-
Power Supply:
-
Eectric,Hydraulic, diesel and hand
-
Material:
-
Q235B/Q345B
-
Color:
-
Customized
-
Package:
-
Plywood Cases
-
Certification:
-
BV, DNV , ABS etc, ISO, CE
-
MOQ:
-
1 SET
-
Feature:
-
Safety
-
Name:
-
Electric Winch
Boat winch 10KN 20KN 50KN 80KN 100KN electric anchor mooring capstan
|
We need you confirm below information when you send inquiry to us : [Noted:tell me your email and whatsapp or skype] 1.Your need quantity?(Set) 2.FOB price or CIF price?(If need CIF price,kindly tell us your nearest sea port) 3.Driven type?(Electric or Hydraulic or Diesel) 4.Rated pull force?(KN) 5.Working speed?(m/min) 6.Numbers of gypsy wheel? 7.Anchor chain diameter and anchor weight?(mm Ton) 8.Rope capacity and Rope diameter?(m mm) 9.Power supply?(Voltage---50Hz/60Hz---3Phase) 10.Any other special requirements? |
- Driven type: Hydraulic
- Pull force: 2T ~ 60T
- Working speed: 9m/min
- No.of gypsy: Single or double
- Anchor chain diameter : ø12mm ~ ø68mm
- Anchor weight: 500Kg ~ 8000Kg
- Rope capacity: 100m ~ 500m
- Rope diameter:ø13mm ~ ø54mm
- Driven type: Electric
- Pull force: 2T ~ 60T
- Working speed: 9m/min
- No.of gypsy: Single or double
- Anchor chain diameter: ø12mm ~ ø68mm
- Anchor weight:500Kg ~ 8000Kg
- Rope capacity: 100m ~ 500m
- Rope diameter:ø13mm ~ ø54mm
- Power supply:220v/380v/400v/440v,50Hz/60Hz,3Phase
- Driven type: Diesel
- Pull force: 2T ~ 60T
- Working speed: 9m/min
- No.of gypsy: Single or double
- Anchor chain diameter: ø12mm ~ ø68mm
- Anchor weight:500Kg ~ 8000Kg
- Rope capacity: 100m ~ 500m
- Rope diameter:ø13mm ~ ø54mm
|

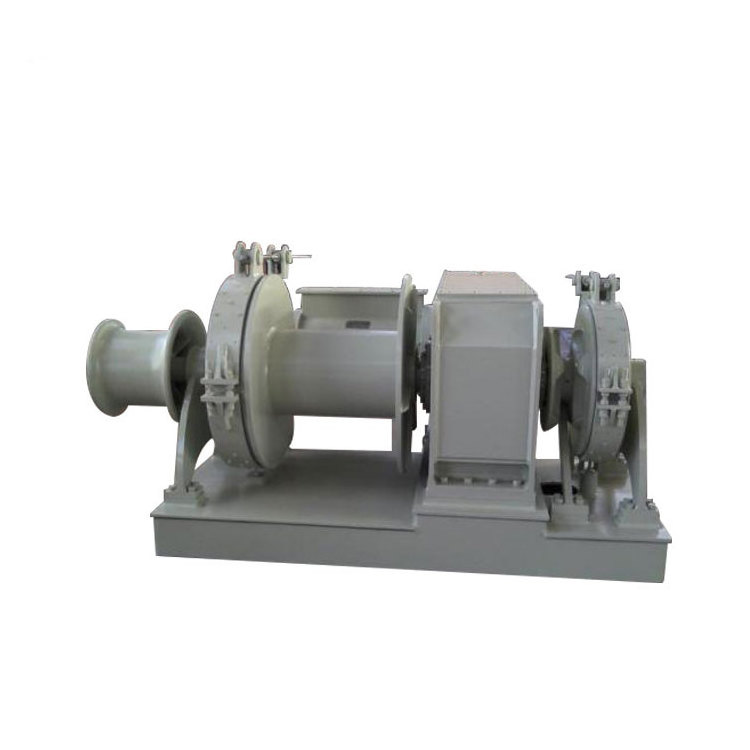

Anchor and mooring winch is a combined multi-function winch, which can be used as anchor winch, also can be used as mooring winch. So the winch has gypsy wheel for anchor chain, it also has drum for wire rope. The anchor and mooring winch is widely used on different kinds of boat for anchoring and mooring. |
| Model |
Rated pull |
Rated speed |
Drum capacity |
Braking force |
Motor power |
Weight |
| (T) | ||||||
| (KN) | (m/min) | (mm x m) | (KN) | (KW) | ||
| EL-20 | 20 | 12 | 15 x 200 | 60 | 11 | 2.5 |
| EL-30 | 30 | 12 | 16 x 200 | 90 | 15 | 3 |
| EL-50 | 50 | 12 | 22 x 220 | 150 | 22 | 3.5 |
| EL-80 | 80 | 12 | 28 x 220 | 240 | 37 | 4 |
| EL-100 | 100 | 12 | 30 x 220 | 300 | 45 | 5 |
| EL-125 | 125 | 12 | 32 x 220 | 375 | 55 | 5.5 |
| EL-150 | 150 | 12 | 36 x 220 | 450 | 75 | 6 |
| EL-200 | 200 | 10 | 39.5 x 350 | 600 | 75 | 9 |
| EL-250 | 250 | 10 | 43 x 450 | 750 | 90 | 12.5 |
| EL-320 | 320 | 8 | 47 x 550 | 960 | 90 | 18 |
| EL-400 | 400 | 8 | 52 x 600 | 1000 | 110 | 22 |
| EL-500 | 500 | 9 | 56 x 600 | 750 | 180 | 25 |
