Small gold mining sluice box portable mini machine with gold processing mat

Small gold mining sluice box portable mini machine with gold processing mat

FOB Reference Price: Get Latest Price

≥1 Pieces

US $800

≥10 Pieces

US $700

≥50 Pieces

US $500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 0

Dimension(L*W*H):: 1*15 meters

Weight:: 75 KG

Product name:: Green grass Gold carpet sluice box

Model:: 1000*5000 mm

Capacity:: 2.6-6.25 t/h

Installation slope angle:: 5-12 °

Feeding size:: <15 mm

Concentrate cleaning up cycle:: 4-6 hour

Water consumption:: 30-150 m3/h

Quick Details

Production Capacity:: 99%

Place of Origin:: Jiangxi, China

Brand Name:: Yongsheng

Voltage:: 0

Dimension(L*W*H):: 1*15 meters

Weight:: 75 KG

Product name:: Green grass Gold carpet sluice box

Model:: 1000*5000 mm

Capacity:: 2.6-6.25 t/h

Installation slope angle:: 5-12 °

Feeding size:: <15 mm

Concentrate cleaning up cycle:: 4-6 hour

Water consumption:: 30-150 m3/h

Product Description

Small gold mining sluice box portable mini machine with gold processing mat

Brief Introduction

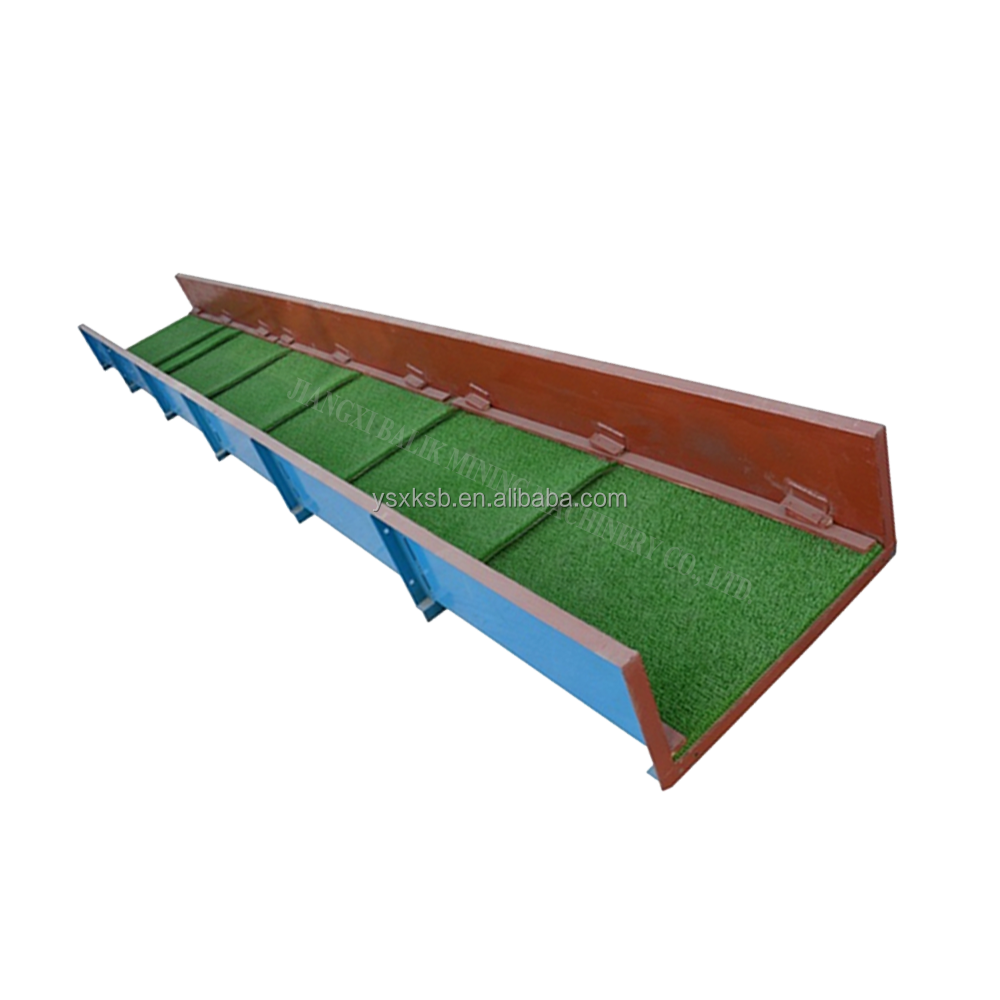

Carpet Sluice box is one of the most popular equipment for gold mining, which consist the steel structure and carpet. Sluice box is normally used in gold washing plant, it's been wildly used to recovery the placer gold directly together with trammel screen.

Advantage and Characteristics
1. Low price: compare to other machines, the price of sluice box is very very low.

2. Easy to install and operate: With a light weight, and small size, this equipment could be installed by hand, and the operation is very easy, after a certain time of feeding material, wash the concentrate inside the carpet, and then you can put the carpet back and continue the work.

3. Easy for maintenance: The only part need to service or change is the carpet, and the carpet is in a high quality, so the
service and maintenance is very easy.

4. Large capacity: A sluice box with 1000*4000MM could processing over 5 tons crude ore per hour. And we can offer a customize service to meet different requirements.

5. No power consumption: The sluice box no needs any power, which makes the operation very convenient.

6. Even gold carpet sluice has many advantages, but it can do nothing for fine gold, generally its gold recover rate is lower than 70%. Nowadays more and more miners use more advanced mining machines like fluctuate(vibrating) gold sluice, jig machine or centrifugal gold concentrator to get higher recovery.

Main Technical Parameters of Carpet Sluice Box
Model	1000x5000
Sluice length (mm)	5000
Sluice width (mm)	1000
Capacity (m3/h)	2.5-6.25
Feeding density (%)	8-15
Feeding size (mm)	<15
Water required (m3/h)	30-150
Installation slope angle （°）	5-12
Concentrate cleaning up cycle (hour)	4-6

Small scale model size Alluvial Gold Mining Processing Equipment, Placer Gold Mining Separation Machine List

Alluvial gold mining processing equipment

A. This method of Rotary Trommel screening equipment helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. Our Trommel screens are constructed of high quality material,designed for high performance, high production rates, lower operating costs and lower maintenance.

B.The Vibrating Sluice Box works with the gold trommel screen to recover gold roughly.

1. Reasonable structural design, convenient for transporting;

2. High degree of automation, high gold handling capacity with the daily capacity up to 2000m3
3.Suitable for various areas, washing and separation are excellent in muddy areas of mines;4. It can also be suitable for processing minerals that may contain gravels and boulders;
4. Applicable to recycling bar gold, nuggets, slices and gold particles;
5. High degree of washing and recovery rate.

C. Centrifugal gold concentrator was patented in China. It is an efficient equipment for recovering free gold in all particle size ranges,specially for recovery of fine gold which is lost during the operation of the gravitational concentrators (sluice boxes and jigs). It can be used not only for placer gold mining, but also for recover the natural gold from hard rocks, to replace amalgamation, and recover gold from the tailings.
Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode ore with size -0.074mm, the gold is up to 98%, For 0.004mm in particle size, the gold recovery is 97%.

D . 6-S Shaking table which is also called table concentrator, is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals.Separating precisely and the high enrichment ratio of concentrate is the prominent advantage of shaking table.

Especially when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times. Besides, the range of separating particle size effectively in dealing with metallic ore is 3 to 0.02 mm.

Application for recovery alluvial (sand) gold ore.

S PECIFICATIONS FOR 50/100 TPH ALLUVIAL GOLD ORE WASHING PLANT

SPECIFICATIONS FOR 50/100 TPH GOLD WASHING PLANT
Item	Model	Quantity (unit)	Unit Power (KW)	Product Name
50TPH	GT 1530	1	11	Trommel Screen
		STLB 60	2	4	Centrifugal Gold Concentrator
		FGS-12	2	0.8+1.1	Vibrating Sluice Box
		1000*5000mm	2	/	Carpet Sluice Box
100TPH	GT1545	1	15	Trommel Screen
		STLB 80	2	11	Centrifugal Gold Concentrator
		FGS-15	2	0.8+2.2	Vibrating Sluice Box
	1000*10000 mm	2	/	Carpet Sluice Box
