Quick Details
-
Filling Accuracy:
-
±0.5-1%
-
Voltage:
-
220/380V 50/60Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
MTW
-
Dimension(L*W*H):
-
2000*900*2200
-
Weight:
-
450 KG
-
Feature:
-
High Efficiency
-
Product name:
-
Oil Filling Machine
-
Control:
-
PLC+ Touch Screen
-
Material:
-
Stainless Steel 304/316
-
Advantage:
-
15 Years Experiences
-
Filling nozzles:
-
4/6/8/10/12
-
Local Service Location:
-
None
-
After Warranty Service:
-
Video technical support, Online support
-
After-sales Service Provided:
-
Video technical support, Online support
-
Factory direct sale:
-
Yes
Quick Details
-
Machinery Capacity:
-
4000BPH, 2000BPH, Other
-
Packaging Material:
-
Plastic, Metal, Glass, Other
-
Filling Material:
-
Oil, Other
-
Filling Accuracy:
-
±0.5-1%
-
Voltage:
-
220/380V 50/60Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
MTW
-
Dimension(L*W*H):
-
2000*900*2200
-
Weight:
-
450 KG
-
Feature:
-
High Efficiency
-
Product name:
-
Oil Filling Machine
-
Control:
-
PLC+ Touch Screen
-
Material:
-
Stainless Steel 304/316
-
Advantage:
-
15 Years Experiences
-
Filling nozzles:
-
4/6/8/10/12
-
Local Service Location:
-
None
-
After Warranty Service:
-
Video technical support, Online support
-
After-sales Service Provided:
-
Video technical support, Online support
-
Factory direct sale:
-
Yes
Our Advantages
Product Description
Product introduction

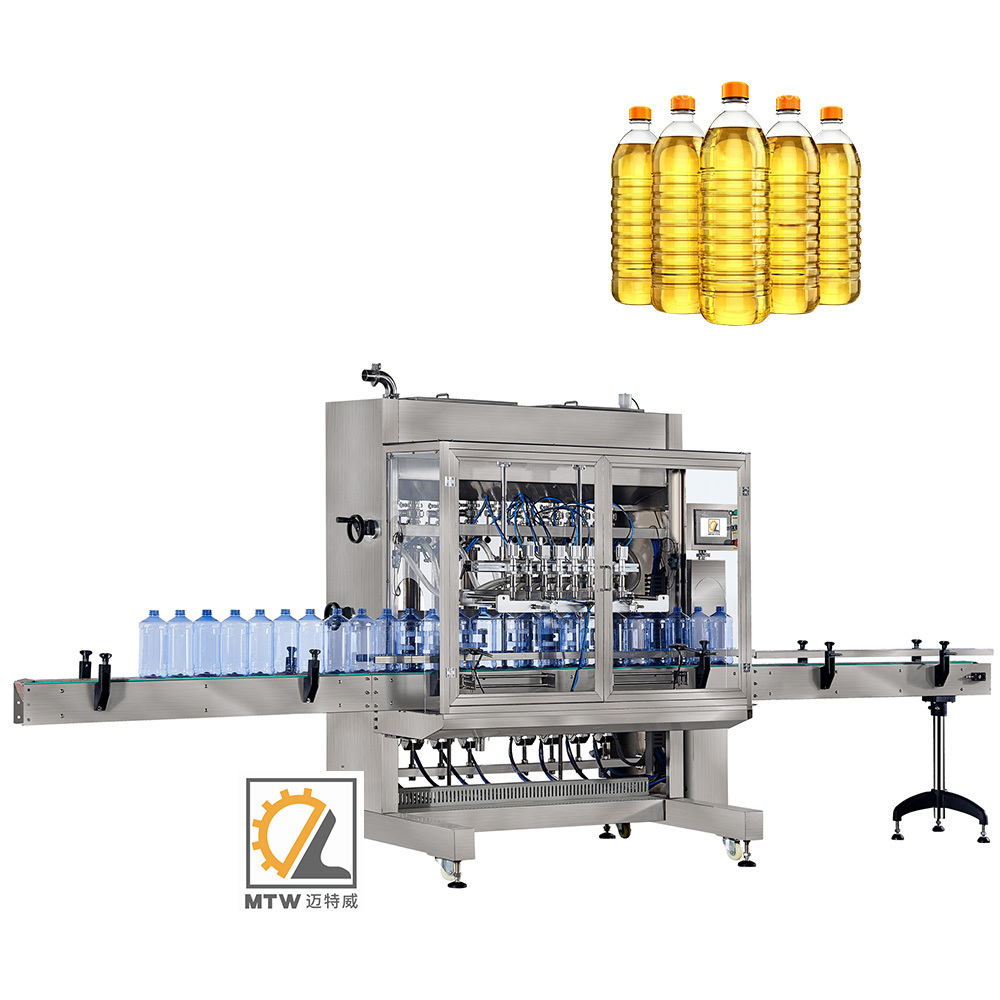

MTW auto cooking oil filling and capping plant edible oil packaging line
adopts piston pump and rotary valve, suitable for filling all kinds of thick & sticky material: In car products industry, like motor oil, lube oil, antifreeze, brake fluid, fuel additive, brake fluid oil, coolant etc. The machine can be made with 4 filling heads/ 6 filling heads/ 8 filling heads/ 10 filling heads/ 12filling heads ,16 filling heads, 18 filling heads etc, according to the filling capacity customers needed.
Product Paramenters
magnetic
MTW automatic olive oil tin ropp capping edible-oil-packing-machine
Filling machine , can fill different bottles , the filling heads and conveyor belt can be adjusted to fit for different
bottles
|
Material
|
SUS304 and SUS316L
|
|
|
|
|
|
|
|
|
||||||||
|
Filling heads
|
4
|
|
6
|
|
8
|
10
|
|
|
12
|
||||||||
|
Filling range
|
10-100ml/ 30-300ml/ 50-500ml/ 100-1000ml/ 250-2500mml/ 300-3000ml/ 500-5000ml
(600-6000ml can be tailor made) |
|
|
|
|
|
|
|
|
||||||||
|
Filling speed
(bottles/ hour & based on 500ml bottle) |
2000-2500
|
2500-3000
|
|
3000-3500
|
|
|
3500-4000
|
4000-4500
|
|
||||||||
|
Filling precision
|
±0.5-1%
|
|
|
|
|
|
|
|
|
||||||||
|
Power
|
220/380V 50/60Hz 1.5Kw (Can be tailor made to suit different countries)
|
|
|
|
|
|
|
|
|
||||||||
|
Air pressure
|
0.4-0.6Mpa
|
|
|
|
|
|
|
|
|
||||||||
|
Machine size
(L*W*Hcm) |
200*90*220
|
240*90*220
|
|
280*90*220
|
|
|
320*90*220
|
350*90*220
|
|
||||||||
|
Weight
|
450Kg
|
500Kg
|
|
550Kg
|
|
|
600Kg
|
650Kg
|
|
||||||||
Details of our
MTW auto cooking oil filling and capping plant edible oil packaging line
This is a front details of our panasonic servo motor filling machine , it has competitve in the filling line , it include the adjustable and customizable filling head , 3mm steel plate for sus304 and 316L , food grade tubes and high quality electrical cabinet
Back of thr edible oil filling machine
This is the back of our filling machine , the hopper has the swift that can transfer the liquid automatically , we will choose piston pump size according to your filling machine , this machine use panasonic servo motor drive piston pump,fit for both liquid as water or gel , and sticky or thick paste
Automatic edible oil filling line
Our edible oil packaging line include filling machine ,capping machine ,sealing machine and labeling machine , we can also add to turntables in the begining or in the end
Anti-drop function and adjustable filling heads
All our filling machine has anti-drop function , it can avoid liquid drop when filling ,all our filling heads are adjustable and can customize as your bottles , widely fit for different bottles
panasonic servo motor drive piston pump
This edible oil filling machine use panasonic servo motor drive piston pump , high precision and high speed
the piston pump filling machine can fit both liquid as water oil and also paste like tomato paste , honey ,jam and so on
Company profile
Our company is a professional manufacturer of all kinds of packing machines, including: filling machines, sealing machines, capping machines, labelling machines etc. We have more than 10 years experience in manufacturing and designing all kinds of packing machines.
We supply all kinds of bottle packing machines for food industry, chemical industry, pharmacy industry, etc.
We are good at designing and tailor-making products. Maitewei(MTW) pack makes more perfect packing, and more efficient production!
Packing And Shipping
Package: Export type Strong Wooden Case
Why Choose Us
Professional after sale service
1.send enough spare accessories for free (can use 2-3years)
2. we can send accessories for free if there is any broken during one year
3. Online video and group guaid to teach you how to operate and answer your production questions
4.
Lifetime technology expenditure
Our logistics
FAQ
1.Can I visit your factory?
A:Sure, Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine,Capping Machine,Labeling Machine
A:Sure, Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2. If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine,Capping Machine,Labeling Machine
MTW auto cooking oil filling and capping plant edible oil packaging line
4. How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
4. How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
