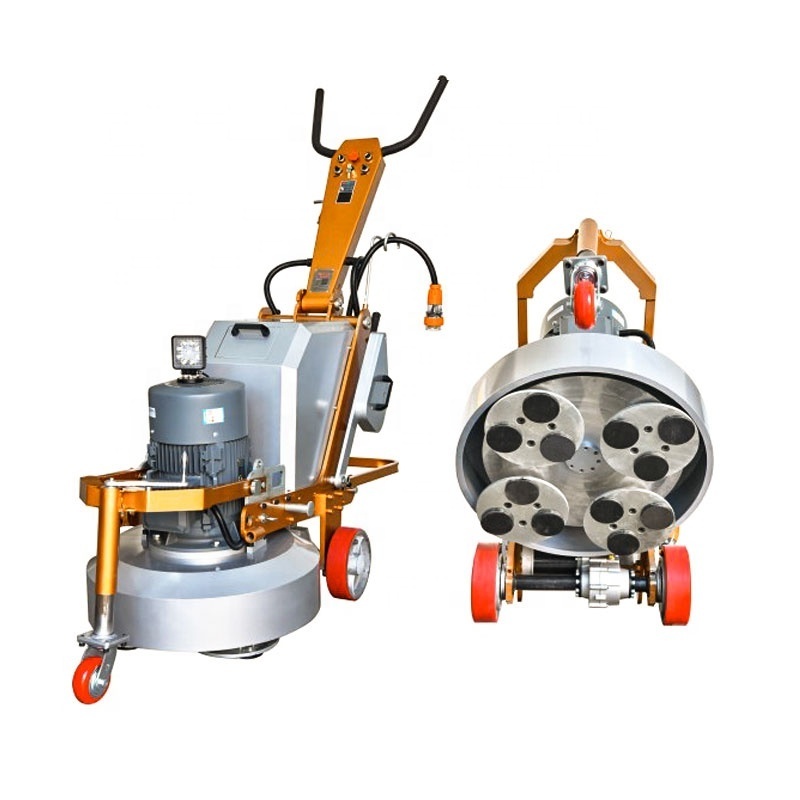

380V Planetary Device 750mm Concrete Grinding Machine 11KW Floor Grinder

380V Planetary Device 750mm Concrete Grinding Machine 11KW Floor Grinder

FOB Reference Price: Get Latest Price

≥1 Sets

US $6800

≥100 Sets

US $1311

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 11KW

Dimension(L*W*H):: 110*70*130cm

Weight:: 480 kg

Product name:: Planetary Device 750mm Concrete Grinding Machine 15KW Floor Grinder

Function:: concrete grinder

Gear Box:: Aluminum Alloy Gearbox

Input Power:: 380V

Inverter:: 11kw

Working Diameter:: diameter 750*750mm

Grinding Discs:: 4 pieces

Driven Systems:: Gear Box

Grinding head:: 12 pieces

Rotating speed:: 0-1500rpm

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Merrock

Voltage:: 380V

Power:: 11KW

Dimension(L*W*H):: 110*70*130cm

Weight:: 480 kg

Product name:: Planetary Device 750mm Concrete Grinding Machine 15KW Floor Grinder

Function:: concrete grinder

Gear Box:: Aluminum Alloy Gearbox

Input Power:: 380V

Inverter:: 11kw

Working Diameter:: diameter 750*750mm

Grinding Discs:: 4 pieces

Driven Systems:: Gear Box

Grinding head:: 12 pieces

Rotating speed:: 0-1500rpm

Product Description

380V Planetary Device 750mm Concrete Grinding Machine 11KW Floor Grinder

Function and feature:

1. With self propelled system save labor, increase construction efficiency, with planetary system get best effect.

2. Use casting gear box is high in precision and stability.

Model			Z12-X-750
Phase			3
Voltage			380V
Power			15HP/11KW
Inverter			15HP/11KW
Autorotation rate			0-1250rpm
Revolution speed			0-320 rpm
Work width			750*750mm
Heads			12 pieces
Grinding plate			4 pieces
Water tank			30L
Battery			24V, 25AH
Walking speed			0-3.7KM/H
Working efficiency			0-2775sqm/H
NW/GW(KG)			480/530
Packing size(CM)			135x85x140 cm

Available blade

1. 380V Planetary Device 750mm Concrete Grinding Machine 11KW Floor Grinder can use the metal diamond grinding blade in 4 inch or
smaller than 4 inch.

2. The metal diamond grinding blade can use for terrazzo concrete and epoxy floor
3.J007C, J013 and PCD for removing the old epoxy.

Abailable resin pad

1. 380V Planetary Device 750mm Concrete Grinding Machine 11KW Floor Grinder can use the resin polishing pad which in 4" or smaller than 4".

2. The polishing pad can use for marble, granite, terrazzo and concrete floor etc.

Related Products

Packing&Shipping

Packing in carton with iron frame

Packing size: 135x85x140 cm

Company Introduction

Dongguan Merrock Industry Co., Ltd are the manufacturer of floor grinding and polishing machine, polishing pads, marble polishing powder and concrete sealer.
Our company set up in 2007, our products sell to more than one hundred countries, and we have distributor in America, Thailand, Vietnam and Colombia etc.

2007 - Dongguan Merrock Industry Co., Ltd was set up, our goal is to grow into an excellent brand in the surface grinding
industry.
2009 - Merrock started to produce large grinding equipment.
2011 - Merrock began producing chemicals, we became to Chinese stone and concrete surface chemistry important supplier.
2012 - Merrock has become the largest manufacturer of large grinding equipment in China.
2013 - Merrock took over a Canadian companies: Guangzhou Dangsing Abrasive Co., Ltd - An overseas-funded company of theearliest abrasive manufacturer in China, it has the famous brand of Apollo, little bear, Dangsing etc., attended the Brasil concrete show in St. Paul.
2014 - Merrock became the only one manufacturer which can research and produce the grinding equipment, chemical and abrasive in China.
2015 - Merrock had develop some agents and partners in United States and European Countries etc.
2016 - Merrock attended the exhibition of WOC in Las Vegas, attended the exhibition of Vietnam Vietbuild in Hochiminh, and got a good reputation from the customers.

2017- Merrock attended the exhibition of WOC in Las Vegas.

2018- Merrock attended the exhibition of WOC in Las Vegas, attended the India Concrete show in Mumbai, attended the Indonesia Concrete show in Jakarta, attended the exhibition of Vietnam Vietbuild in Hochiminh.

Fair

FAQ

Q1:Are you trading company or manufacturer?
A1:We are manufacturer and we have our own factories. specializes in floor grinder products for about 12 years. Welcome to visit
our factory, we can also provide the best suitable flooring construction solution for you. Our factory is located in Dongguan
City, China, which is near Guangzhou and Shenzhen.

Q2:What are the advantages of your products compared with other products?
A2:Our products are excellent in terms of productivity, handling, reliability and construction results.Laser cutting and aluminum
casing gear box make the machine parts more accurate. We make the machine, polishing pads and chemical, so we can offer you the
full set of product you need for the floor.

Q3.What is the payment?
A3. T/T, Western Union, Wechat, Cash.

Q4: How long your product's warranty ?
A4: One year warranty .

Q5: What is your MOQ ?
A6: 1 set

Q7: What is your packaging ?
A7: We package in carton with iron frame.

Q8 :Can you customize the machine for the customer?
A8:Yes. We can, we also provide OEM for customers; If you need customized services, please contact us

Q9: What is your delivery time ?
A9: 7~20 days ( according to the total quantity)
