Quick Details
-
Brand Name:
-
WISINE
-
Product name:
-
SS 304 316 adjustable arm for fixing marble flat head eye bolt
-
Product Type:
-
Other Curtain Wall Accessories
-
Color:
-
Plain,zinc plated,black oxide,hot dip galvanize.etc.
-
Applications:
-
Stone Cladding Fixing System
-
Corrosion Resistant:
-
Yes
-
Sample:
-
Available
-
Size:
-
50mm-80mm
-
Specification:
-
As you required
-
Usage:
-
Adjust the stone level
-
Processing:
-
Stamping and Punching
Quick Details
-
Finish:
-
Plain
-
Material:
-
Stainless steel, Steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WISINE
-
Product name:
-
SS 304 316 adjustable arm for fixing marble flat head eye bolt
-
Product Type:
-
Other Curtain Wall Accessories
-
Color:
-
Plain,zinc plated,black oxide,hot dip galvanize.etc.
-
Applications:
-
Stone Cladding Fixing System
-
Corrosion Resistant:
-
Yes
-
Sample:
-
Available
-
Size:
-
50mm-80mm
-
Specification:
-
As you required
-
Usage:
-
Adjust the stone level
-
Processing:
-
Stamping and Punching
Product Details
|
Brand name
|
Wisine
|
|
|
|
|||
|
Product name
|
Stainless Steel adjustable flat bolt
|
|
|
|
|||
|
Mounted
|
Deck and wood applications, strong load bearing fasteners
|
|
|
|
|||
|
Type
|
Outer hex bolt, inside hexagon bolt, adjustable bolt.
|
|
|
|
|||
|
Matrial
|
Stainless Steel 316 304 201 and alloy steel
|
|
|
|
|||
|
Size
|
M4 M5 M6 M8 M10 M12 M14 M16 M20 M22 M24 M27 M30 M36
|
|
|
|
|||
|
Surface treatment
|
Plain
|
|
|
|
|||
|
Quality of product
|
High hardness, corrosion resistance, can be used in humid environment without rust
|
|
|
|
|||
|
Technical Detail
|
|
Technical Detail
|
|
|
||||
|
Metric Size
|
Length
|
Flat length size
|
Flattening Thickness
|
Pin Diameter
|
||||
|
M(mm)
|
L(mm)
|
AF(mm)
|
T(mm)
|
Ø(mm)
|
||||
|
8
|
50
|
A+6
|
3
|
4
|
||||
|
8
|
60
|
A+6
|
3
|
4
|
||||
|
8
|
70
|
A+6
|
3
|
4
|
||||
|
10
|
50
|
A+8
|
3.5
|
5
|
||||
|
10
|
60
|
A+8
|
3.5
|
5
|
||||
|
10
|
70
|
A+8
|
3.5
|
5
|
||||
|
10
|
80
|
A+8
|
3.8
|
5
|
||||
|
12
|
50
|
A+8
|
4.5
|
5
|
||||
|
12
|
60
|
A+8
|
4.5
|
5
|
||||
|
12
|
70
|
A+8
|
4.5
|
5
|
||||
|
12
|
80
|
A+8
|
4.5
|
5
|
||||
|
14
|
50
|
A+8
|
5.5
|
6
|
||||
|
14
|
60
|
A+8
|
5.5
|
6
|
||||
|
14
|
70
|
A+8
|
5.5
|
6
|
||||
|
14
|
80
|
A+8
|
5.5
|
6
|
||||
|
16
|
50
|
A+8
|
6
|
6
|
||||
|
16
|
60
|
A+8
|
6
|
6
|
||||
|
16
|
70
|
A+8
|
6
|
6
|
||||
|
16
|
80
|
A+8
|
6
|
6
|
||||

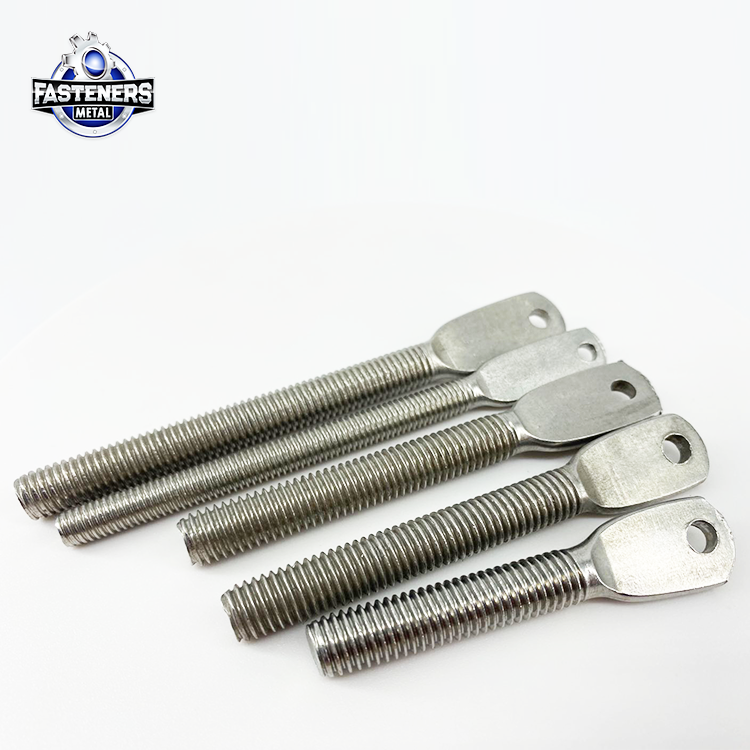

Adjustable flat bolt
Wisine brand flat head bolt is made of high quality 304 316 201 stainless steel material,prevent rust and oxidation. Fine appearance, stable structure, polishing without burr, hard and round.corrosion resistance, high hardness, not easy to rust, stable and reliable, can also be used in wet water Deep thread, uniform tooth spacing, clear texture, rotation process is not easy to slip Good gloss, surface treatment gloss as new, excellent workmanship, durable.
Adjustable flat arm
Stainless steel adjustable flat arm is often used in conjunction with adjustable supports, flange pins, wedge-shaped anchors,square sawtooth washers, and nuts to secure granite and marble to the exterior wall of the building and to adjust the cavity between the wall and granite or marble.
