Quick Details
-
Model Number:
-
Overload Protector Switch
-
Rated Voltage:
-
125VAC/250VAC/32VDC
-
Products Name:
-
Overload Protection Circuit Breaker
-
Usage:
-
Reset Overload Circuit Breaker
-
Current:
-
2A~30A
-
Voltage:
-
125VAC/250VAC/32VDC
-
Actuator color:
-
Red or black
-
Action type:
-
Manual
-
Terminals:
-
2 Pins
-
Waterproof Cap Model:
-
IB-WPC-2
-
Package:
-
50pcs/box
-
Product type:
-
Overload Protector Switch
Quick Details
-
Poles Number:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
Overload Protector Switch
-
Rated Voltage:
-
125VAC/250VAC/32VDC
-
Products Name:
-
Overload Protection Circuit Breaker
-
Usage:
-
Reset Overload Circuit Breaker
-
Current:
-
2A~30A
-
Voltage:
-
125VAC/250VAC/32VDC
-
Actuator color:
-
Red or black
-
Action type:
-
Manual
-
Terminals:
-
2 Pins
-
Waterproof Cap Model:
-
IB-WPC-2
-
Package:
-
50pcs/box
-
Product type:
-
Overload Protector Switch

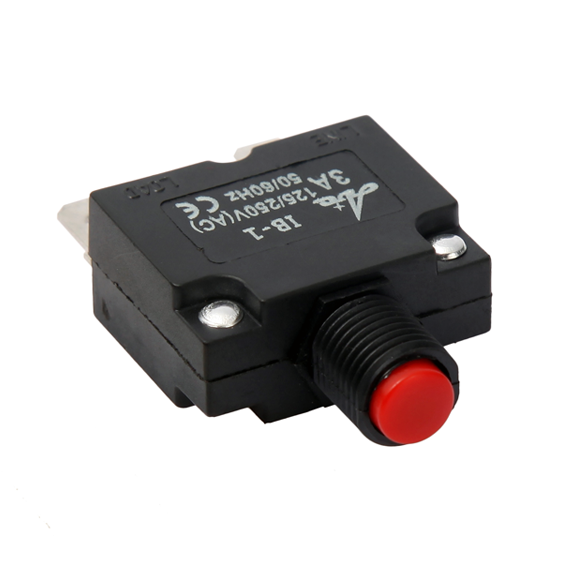

Manual Reset Thermal Switch DC Circuit Breaker Over Current Overload Protector Switch
Product description
Push Button Reset Circuit Breakers with Quick Connect Terminals and Waterproof Button Transparent Cap
Product features :
Thermal circuit breakers (can also be used for 24-hour circuit protection)
Rating: 2A~30 A 125/250VAC/32VDC,Terminal width: 6.3mm(1/4")
Widely suitable For Automotive/Industrial/Marine And Many Other applications
Push-to-reset operation with black manual reset button, with a waterproof button cap to protect from bad weather.
The part is not designed for push on / push off manual switch operation, but the button pops out at overload and is reset by pushing back in.
Product description
Push Button Reset Circuit Breakers with Quick Connect Terminals and Waterproof Button Transparent Cap
Description:
For operation up to 32 volts DC or 250 volts AC.
Not designed for push on / push off manual switch operation, but the button pops out at overload and is reset by pushing back in.
This replacement circuit reset breaker can be used in a variety of applications requiring protection.
With a plastic housing, and the included waterproof button cover, you can use this breaker in areas where it may be exposed to moisture without worry.
We manufacturer this breaker with Quick Connect terminals so you can get the job done quicker.
Specifications:
- Power rating: 2A~30 A (amp)
- Quick connect terminals
- Switch type: Push-button reset
- Includes waterproof button cover
Package Includes: 1 x Thermal Circuit Breaker
|
Product Name |
Overload Protection Circuit Breaker |
|
Feature |
Overload Protection |
|
Rating |
2A~30 A |
|
Actuator Color |
Black(Red Available) |
|
Terminal type |
2 Pin Terminals |
|
Accessories |
Nut/Nameplate |
|
Order Confirm |
* What Current? * What Actuator Color? |
|
What You Get |
1 x IB-1 15A Overload Circuit Breaker, Bakelite, Black Actuator |
Note: If you need other Rating or other Actuator color, please send us an enquiry, thanks!
