Quick Details
-
Weight:
-
100 kg
-
Product name:
-
Silo Venting Filter
-
Application:
-
Dust Collect
-
Usage:
-
Filter Industry Dust
-
Keyword:
-
Powder Dust Collector
-
Model:
-
FNC2J12
-
diameter:
-
600mm
-
Filter Area:
-
12㎡
-
Key words:
-
Pulse dust collector
-
Body Material:
-
SS430
-
Filter material:
-
Polyester
Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
AKMK
-
Dimension(L*W*H):
-
100*92*124
-
Weight:
-
100 kg
-
Product name:
-
Silo Venting Filter
-
Application:
-
Dust Collect
-
Usage:
-
Filter Industry Dust
-
Keyword:
-
Powder Dust Collector
-
Model:
-
FNC2J12
-
diameter:
-
600mm
-
Filter Area:
-
12㎡
-
Key words:
-
Pulse dust collector
-
Body Material:
-
SS430
-
Filter material:
-
Polyester
Description
Silo Top Bin Vent Filter. A bin vent filter is a dust filtration unit on top of a silo or a large bin. These storage units for powder and bulk materials can be filled mechanically by bucket elevators, for example, or by the pneumatic systems from bulk tanker trucks.
|
Specification
|
|
|
|
Model Number
|
FNC2J12
|
|
|
Body Diameter
|
600mm
|
|
|
Filter Surface
|
12㎡
|
|
|
Maintenance Height
|
1,150mm
|
|
|
Weight
|
100kg
|
|
Details Images

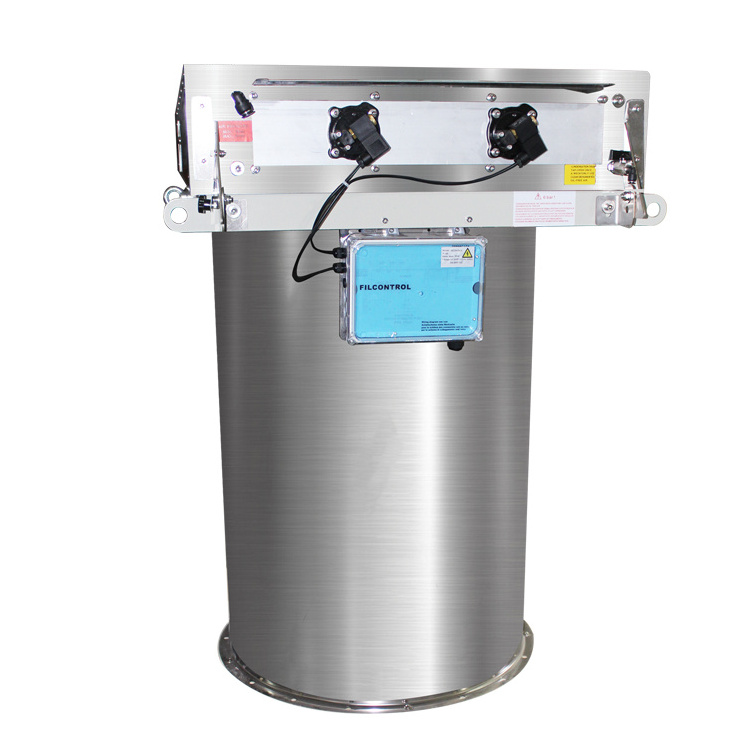

FNC2J is a cylindrically shaped Dust Collector for venting pneumatically filled silos.
Its stainless steel casing contains vertically mounted cartridge filter elements.
Filtration efficiency is ensured by vibration cleaning of the filter elements.
Dust is separated from the air flow by cartridge filter elements.
The dust drops back into the silo after a vibrated cleaning system,
activated at regular intervals, has removed it from the cartridges.
Compact 800 mm (30 in) diameter SS body with bottom flange and 22 m
2
(237 sq ft) filter surface
Maintenance height = 1,150 mm (3.8 ft)
